Page 46 Setup and Assembly Manual
B.3.7 White Balance
Find the section Adjustments & Support in the Poweruser main menu screen and click
on Adjustments .
The next screen shows the title of two measurement methods. Click on White Balance .

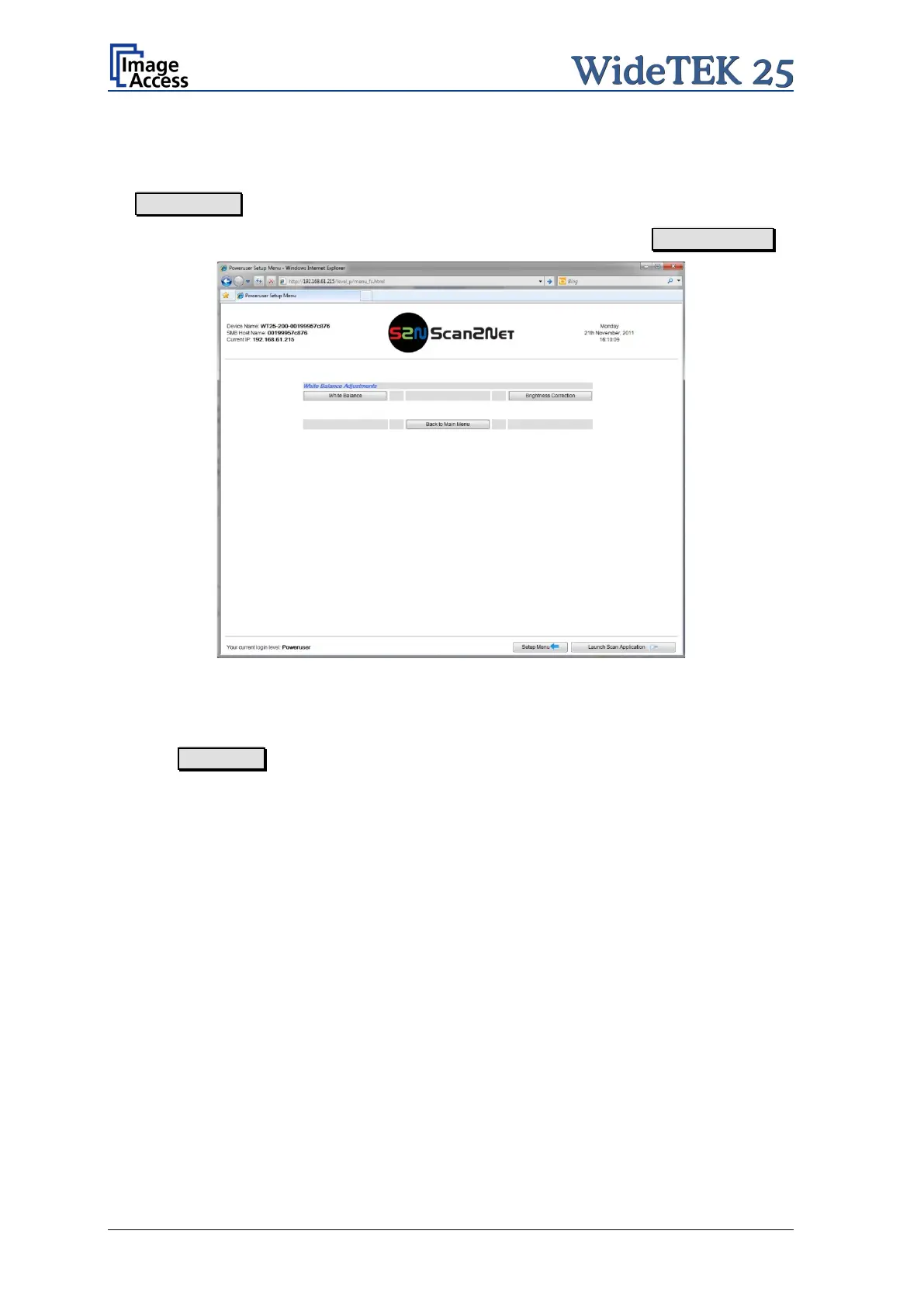

Picture 39: Measurement methods
The next screen shows how the test target WT36-Z-02-A must be positioned at the upper
margin of the glass plate.
Click on Next Step to start the white balance measurement sequence. Finally the status
of the white balance adjustment will be displayed.
Positive results are displayed in green color, error messages and a brief description are
displayed in red color.
