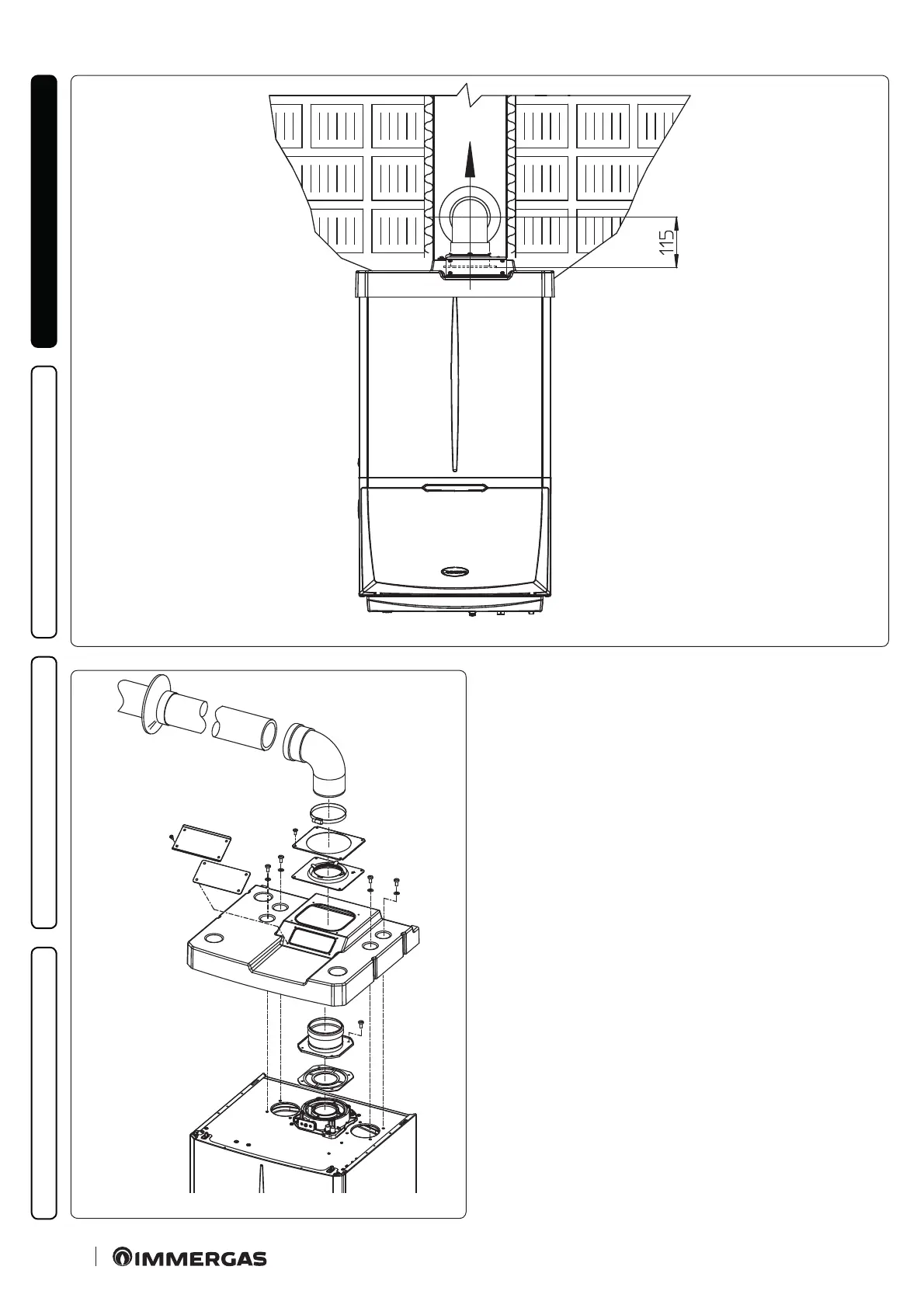

e cover kit includes (Fig. 23):
No.1 ermoformed cover
No.1 Gasket clamping plate
No.1 Gasket
No.1 Gasket tightening clip
N o .1 I n t a k e h o l e c o v e r i n g p l a t e
e terminal kit includes (Fig. 23):
No.1 Gasket
No.1 Exhaust ange Ø 80
No.1 90° bend Ø 80
No.1 Exhaust pipe Ø 80
No.1 Wall sealing plate
