Programming Alarms, Limits, or Inputs to Output Groups
The TS-1001/504 / 2001/508 / 750 Tank Sentinels includes a powerful setup feature called
Output Groups
(OGs). Alarms, limits, and inputs (Aux. or I/O Module inputs) can be
assigned / programmed to output groups (OUT GROUP or OG). An output device will turn
on or off when an alarm is active in any of its assigned output group(s). Up to 32 output
group(s) can be assigned or programmed to any output device... also see Programming
Output Devices.
The standard output devices are annunciators and relays. Other output devices can be
optionally
added to the system. These are
:
TS-ROM BriteBox
relays,
TS-CIM BriteBox
output modules
, and TS-IEM internal expansion PC Board
output modules
— for TS-2001/
508 consoles only.
Example:
TANK 1, ALARMS and the H LIM OG (high product level limit) menus:
The HIGH LIM (high product
level limit) has an associated H
LIM OG – high limit output
group near it.
In an 8 tank system
there are 8
H LIM OG s (one under
each tank menu).
Each limit, alarm or input can
be assigned to one of the 34
Output Group choices —
GROUP A thru FF, or to ALL
output GROUPS, or to
NONE
( no output group = default )
.
Record output group
assignments for each alarm,
limit, or input in theprovided
OG Worksheets.

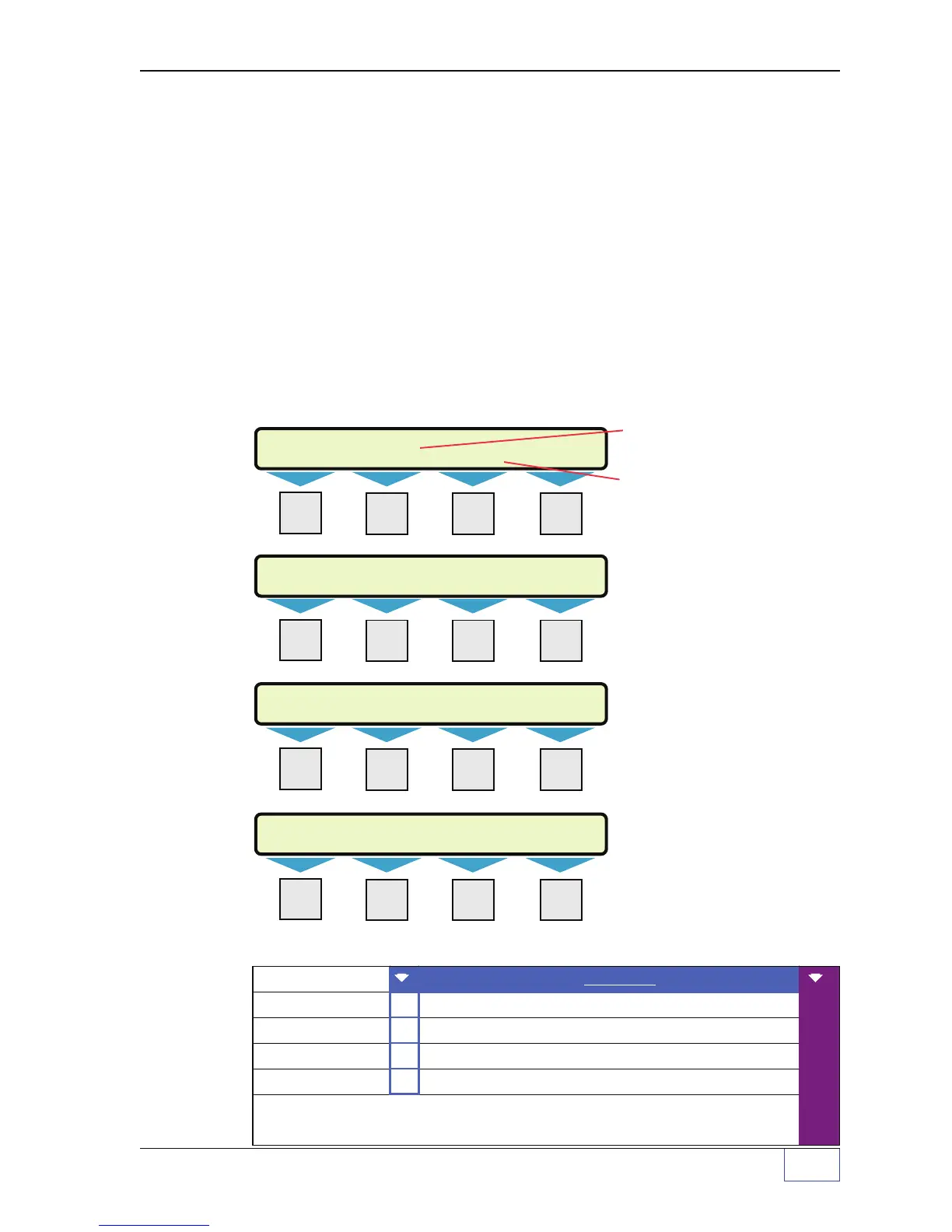

Example Output Group Assignment WORKSHEET (partial)
HIGH PRODUCT OUTPUT GROUP 1 (UP/DN)
NONE
M1 M2 M3 M4
HIGH PRODUCT OUTPUT GROUP 1 (UP/DN)
GROUP A
M1 M2 M3 M4
HIGH PRODUCT OUTPUT GROUP 1 (UP/DN)
ALL GROUPS
M1 M2 M3 M4
NOTE
OG = Output Group
- Out
p
ut Grou
p
Assi
g
nment WORKSHEET Out
p
ut Grou
p
choices -
Example - System:
NONE
= default setting (others are: GROUP A thru FF & ALL GROUPS)
NONE
LEAK OG
A
Tank Leak turns on Modulated Annunciator, Relay 2 for external leak light
A
THEFT OG
T
Sentinel Mode Theft Limit (turns on external product theft light)
B
SYSFL OG
F
System Fail - software or hardware failures - (activates solid annunciator)
C
E
F
Output Devices:
Modulated Annunciator, Solid Annunciator, Relay 1, Relay 2,
I
/O Output Module
Channel # 1 to # __ (record all OG Assignment
s in the vertical column)
TANK ALARM 1 (MORE)
COPY HIGH LIM H LIM OG HIGH HIGH
M1 M2 M3 M4

