User’s manual of CLEO Patient Monitor
- 38 -
 An adapter zero cannot be performed if a sample cell is not connected to the module.
 For best results, wait 5 minutes to allow the CO
2
module to warm up before
performing the Sample Cell Zero procedure.
PATIENT AND TUBING PREPARATION
MODULE MOUNTING
a. Put the CO
2
module into the bracket of the rear panel of the monitor.
b. Check that monitor is switched off，Insert the plug of CO
2
sensor into the corresponding
sensor socket marked with EtCO
2
icon on the left panel of monitor.
CONNECTING THE SAMPLE KIT

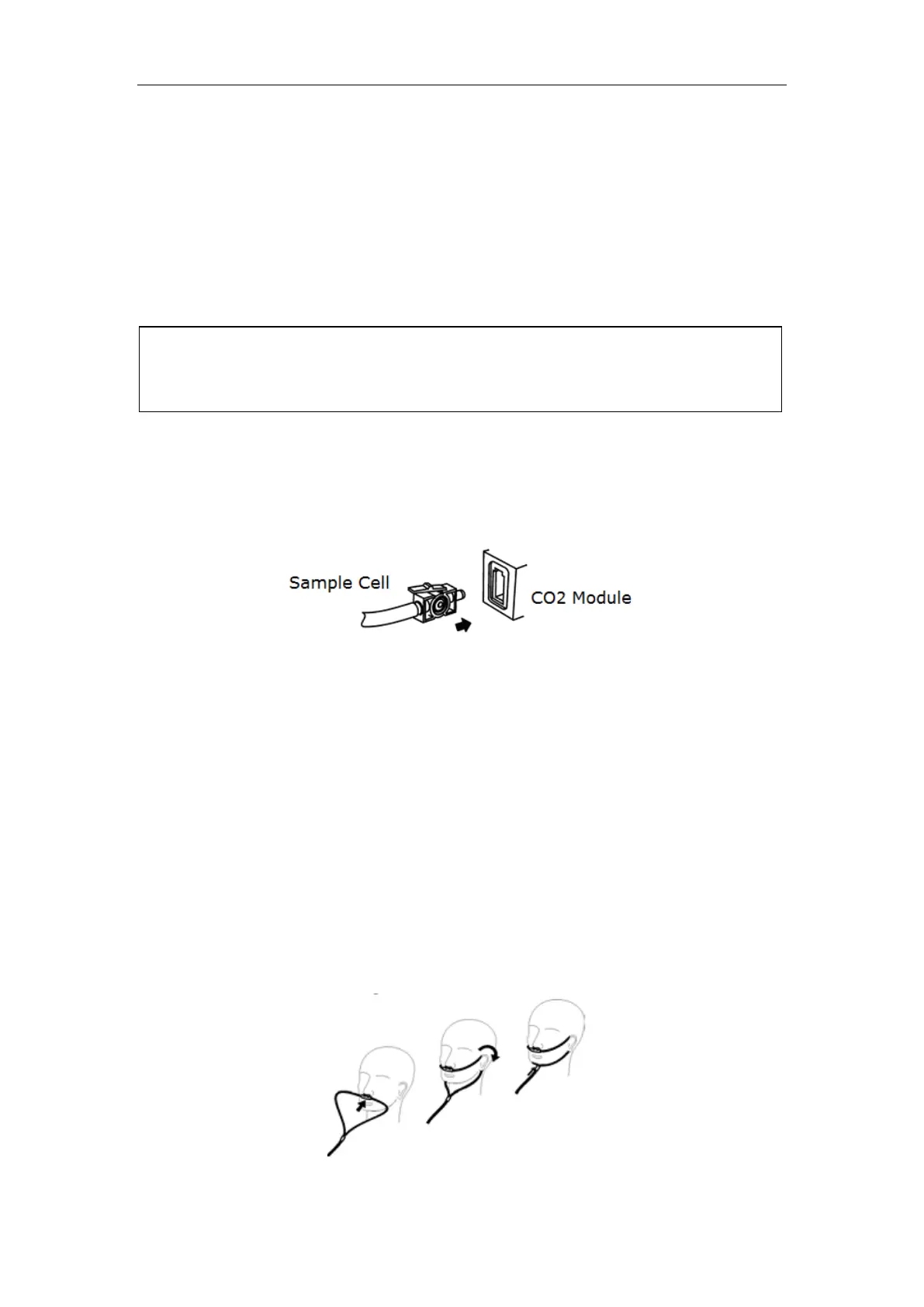

a. The sample cell of the sampling kit must be inserted into the sample cell receptacle of
the CO
2
Module as shown in following figure. A “click” will be heard when the sample cell
is properly inserted.
b. Connect the CO
2
tubing to Nasal and Nasal/Oral Sidestream Kits.
c. Inserting the sample cell into the receptacle automatically starts the sampling pump.
Removal of the sample cell turns the sample pump off.
d. To remove the sampling kit sample cell from the sample cell receptacle, press down on
the locking tab and pull the sample cell from the sample cell receptacle.
DIRECTIONS
For use of single patient use nasal and nasal/oral sidestream kits
CAUTION: The Nasal and Nasal/Oral Cannula kits are intended for single patient use. Do
NOT reuse or sterilize the cannula kit as system performance will be compromised.
1. Verify that the cannula kit is clean, dry and undamaged. Replace the cannula kit if
necessary.
2. Insert the sample cell into the sample cell receptacle as shown in above figure on
connecting the Sample Kit section. A “click” will be heard when properly inserted.
3. Perform a sample cell zero if prompted by the host system.
4. Place the nasal cannula kits onto the patient as shown in following figure.
5. Some patients are prone to mouth breathing. The Oral/Nasal sampling cannula
should be used on these patients, as most, if not all of the CO
2
is exhaled through the
[WARNING]: Don’t hot plug EtCO
2
module, that is make sure that the CLEO is
powered off before Insert the connector of CO
2
sensor into EtCO
2
socket. Otherwise
the CO
2
module may be damaged by power supply from EtCO
2
socket of CLEO.
