Installation
Connect to Computer/Notebook

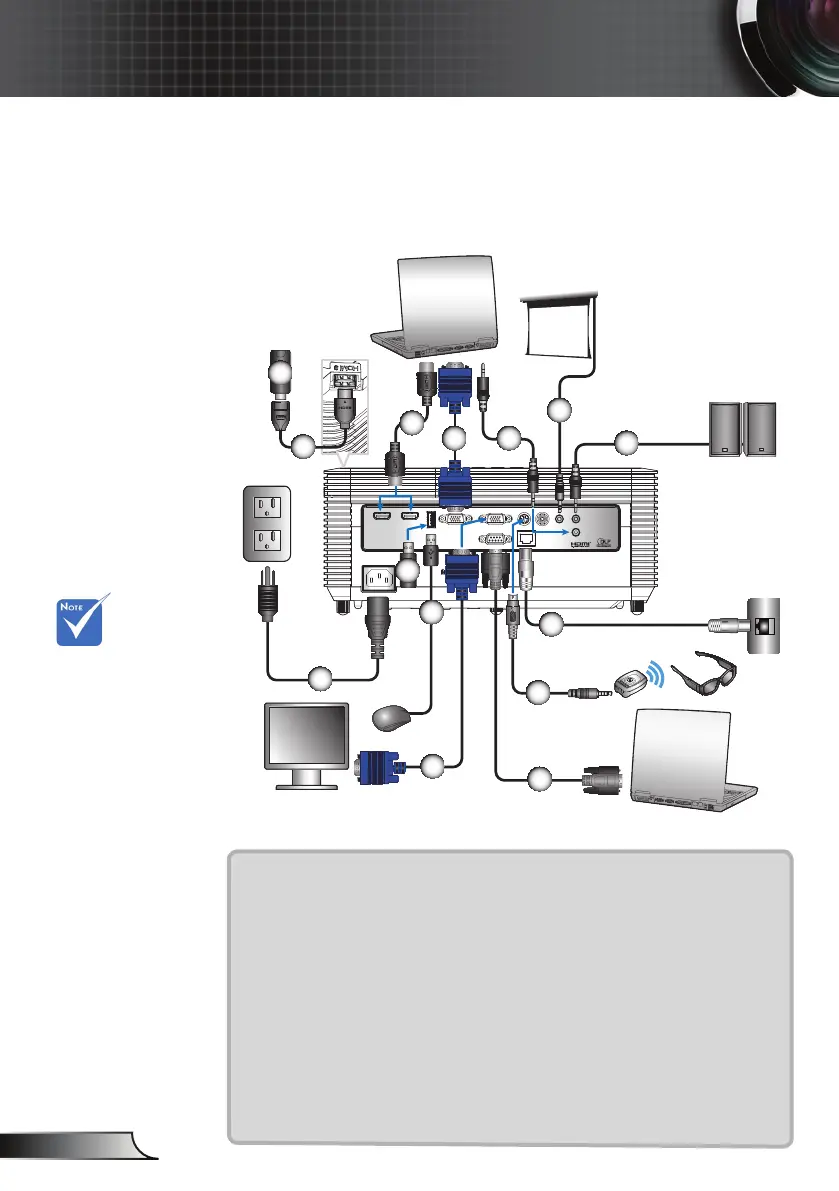

Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
(**) End user
needs to purchase
by themself.
(***) USB has
three functions:
Service, Remote
Mouse Control,
and USB
connection for
HDMI device.
The interface is
subject to model’s
specications.
USB-A
VGA IN
VGA OUT
RS232
VIDEO
AUDIO OUT
AUDIO IN
HDMI 2
HDMI 1
SCREEN
TRIGGER
RJ-45
3D SYNC
3
4 5
6
7
10
11
12
14
9
1
8
2
13
Powered
Speaker
Computer / Notebook
Monitor
Computer / Notebook
1............................................................................................HDMI Device**
2............................................................................... HDMI Extension Cable
3................................................................................................ HDMI Cable
4............................................................................................ VGA-In Cable*
5......................................................................................Audio Input Cable*
6................................................................................. 12V 200ma DC Jack*
7................................................................................... Audio Output Cable*
8.............................................................................................. RJ-45 Cable*
9....................................................................................... 3D Emitter Cable*
10........................................................................................... RS232 Cable*
11 ........................................................................................ VGA-out Cable*
12............................................................................................USB Cable***
13.............................................................................................. USB Drive**
14...............................................................................................Power Cord
