Installation Manual
18 Internal devices
4.3 The SmartLoop/2L board
All the SmartLoop 2080 series (expandable models) have 2 on-board loops expandable to 8 by means
of 3 SmartLoop/2L expansion boards. The models SmartLoop 1010 series (non-expandable) have 1
loop only.
Each loop accommodates up to 240 or 126 (depending on the selected protocol) fire detection/
signaling devices (refer to Appendix B).
Due to electrical incompatibility (refer to Appendix B), different brand devices (i.e. devices using
different protocols) cannot co-exist on the same loop. However, the loops can be programmed
separately thus allowing the system to manage different brand devices on different loops.

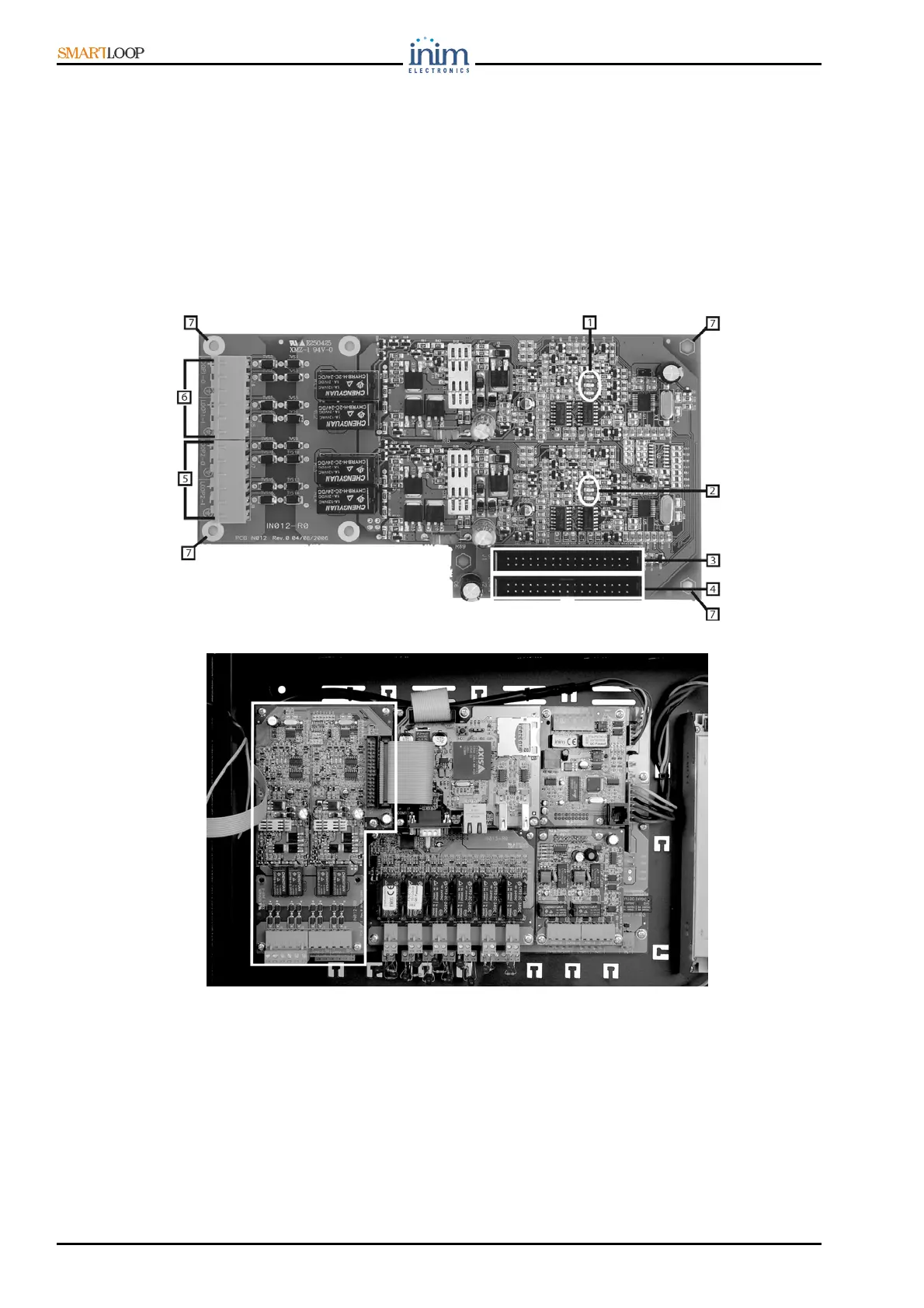

Figure 7 - The SmartLoop/2L board
Figure 8 - The SmartLoop/2L board location on the motherboard
4.3.1 The SmartLoop/EXP board components
1. Loop 1 status LED
2. Loop 2 status LED
3. Flat cable SmartLoop/2L board to board connector (up to 3 boards)
4. Flat cable motherboard to SmartLoop/2L board connector
5. Loop 2 In/Out terminals
6. Loop 1 In/Out terminals
