Installation Manual
Overview 7
1.2 In order to validate the IMQ-SISTEMI DI SICUREZZA certification, and
in compliance with EN54-2 regulations,
1. All the manual alarm buttons and fire detectors employed in the system must be associated with
fire detection and alarm functions.
2. The functions associated with the programmable LEDs on the control panel frontplate (Keypad/
Display board and LED board), and on SmartLetUSee/LCD and Smart letUSee/LED Repeaters must
be set up in accordance with the colour of the LEDs:
•RED: FIRE ALARM Status
•YELLOW: FAULT, TEST and DISABLED Status
Note: The GAS control function is not EN54-2 compliant, as this feature is not mentioned in the
aforesaid standard.
1.3 About the SmartLoop fire alarm panel series
There are 3 expandable models (expandable to 8 loops by means of 3 SmartLoop/2L expansion
boards). All have 2 loops and common components housed in the same sized cabinet. Each
expandable model has a technically-downsized version (in same-sized cabinet) with 1 loop for reduced
complexity applications.
All models manage the same functions and support a full spectrum of hardwired and wireless devices.
The SmartLoop fire alarm panel series provides the following models:
• SmartLoop1010/P Advanced model with 1 loop
• SmartLoop2080/P Advanced model with 2 loops expandable to 8 loops
• SmartLoop1010/G Keypad and display model with 1 Loop
• SmartLoop2080/G Keypad and display model with 2 loops expandable to 8 loops
• SmartLoop1010/S Flush front (unequipped) model with 1 loop
• SmartLoop2080/S Flush front (unequipped) model with 2 loops expandable to 8 loops

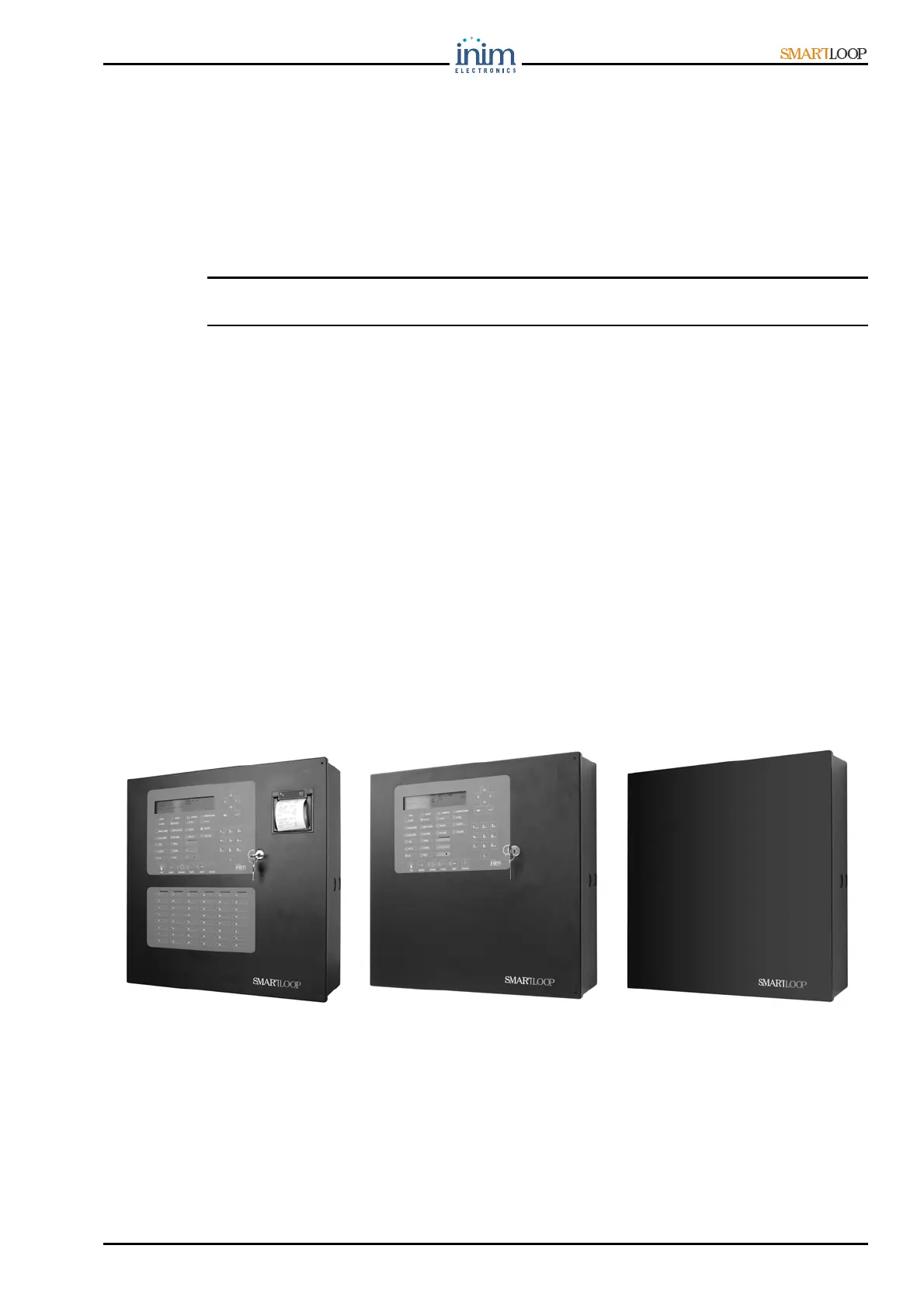

Figure 2 - SmartLoop Series - Advanced, Keypad and display, and Flush Front
1.4 Description of the models
The “/P” model is equipped with a keypad, display, fault LEDs, fast buttons and a Zone status LED
pad. This model is suitable for locations where extended visual signals and manual control are
necessary. This model can be enhanced with the SmartLoop/PRN thermal printer (accessory item).
SmartLoop1010/P
SmartLoop2080/P
SmartLoop1010/G
SmartLoop2080/G
SmartLoop1010/S
SmartLoop2080/S
