Installation Manual
24 Internal devices

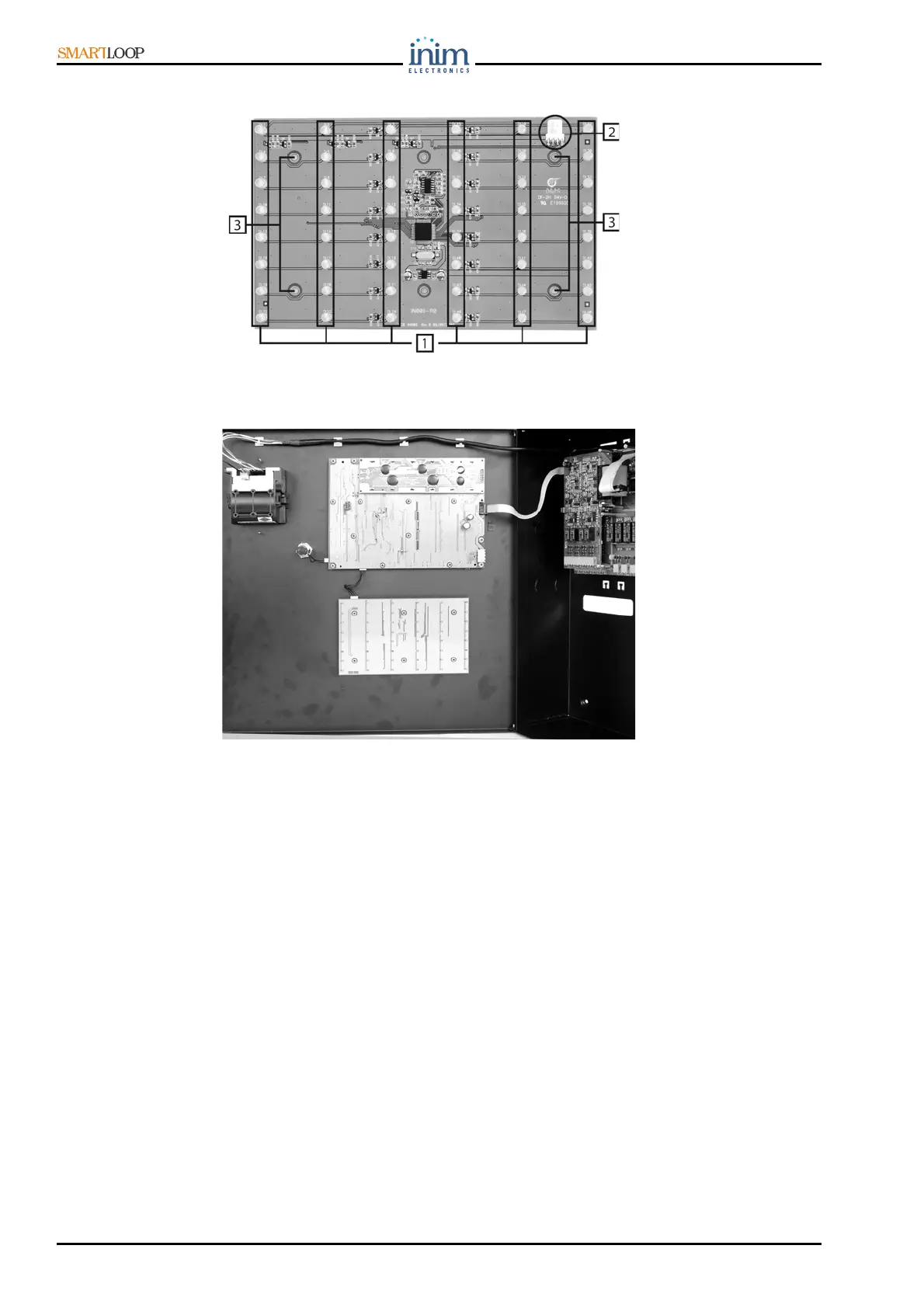

Figure 17 - The SmartLetUSee/LED module
Figure 18 - The SmartLetUSee/LED module location on the motherboard
4.8.1 The SmartLetUSee/LED module components
1. Programmable command LEDs (48 LEDs)
2. Flat cable display to LED board connector (4 pin connector)
3. Board anchor holes (6)
4.9 The SmartLoop/PRN module (for “/P” models only)
The SmartLoop/PRN thermal printer module uses 82mm thermal roll paper and can be connected
directly to the motherboard (connector cable included). It provides a continuous real-time printout of
events and/or date to date enquiry printouts. It can also printout complete reports for each separate
loop, containing information related to the status of each detector/module (dust accumulation, loop
communication quality, real-time values, etc.).
