Installation Manual
Connections 39
• Supervised NAC Output

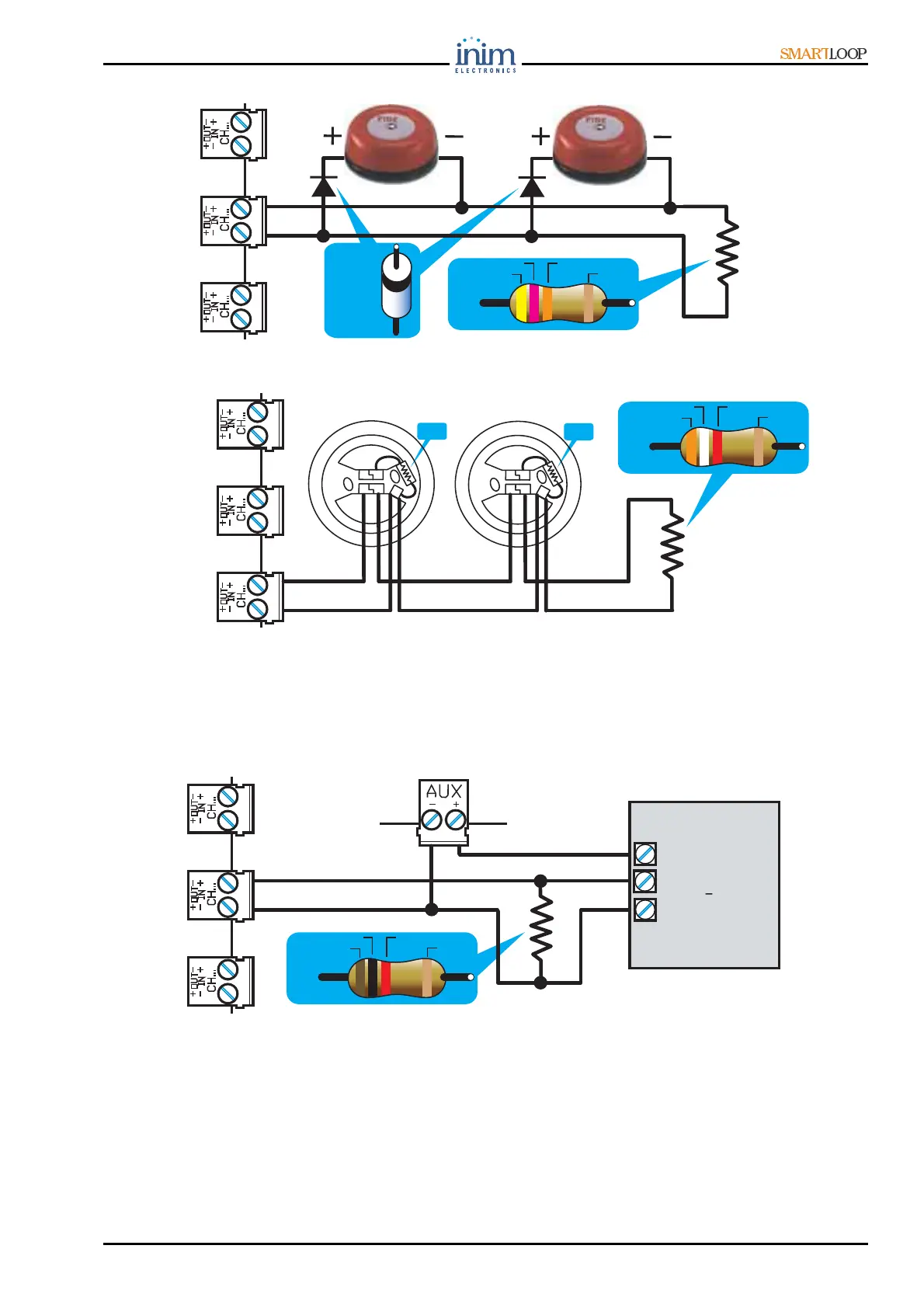

Figure 34 - Supervised NAC Output
• Convenzional Zone
Figure 35 - Convenzional Zone
• Gas Zone
Lines configured as Gas Zone 4-20mA will generate “early warning” signals if the value of the
detector output exceeds 16mA. In order to implement the “early warning” signal, it must be enabled
(during the programming phase) on both the control panel and the zone the line belongs. The "early
warning" signal will stop automatically, if a gas detector exceeds the 12mA “early warning” threshold
then returns below this value without reaching the "alarm" threshold.
Figure 36 - Gas Zone
YELLOW
VIOLET
ORANGE
GOLD
47K
7
1N4007
ORANGE
WHITE
RED
GOLD
3.9K
7
+
-
R+
-
390
7
+
-
R+
-
390
7
CONVENTIONAL DETECTOR 1 CONVENTIONAL DETECTOR 2
BROWN
BLACK
RED
GOLD
1K
7
1w
+
S
-
GAS
DETECTOR
4 20 mA
To Next Page
