Optimas System Operator Manual
Section 4: Device Description
Comprises flash lamp and reflector emitting optical energy through
the pre-cooled light guide (30x10mm) (Figure 4-14).
The Cable has a length of 170cm.
The Connector is connected to the System.
The Fractora Handpiece comprises applicator, cable and connector (Figure 4-15). Single use tip
is connected to the groove in the handle before each use (Figure 4-16). The tip is connected or
disconnected by pull or push movement.

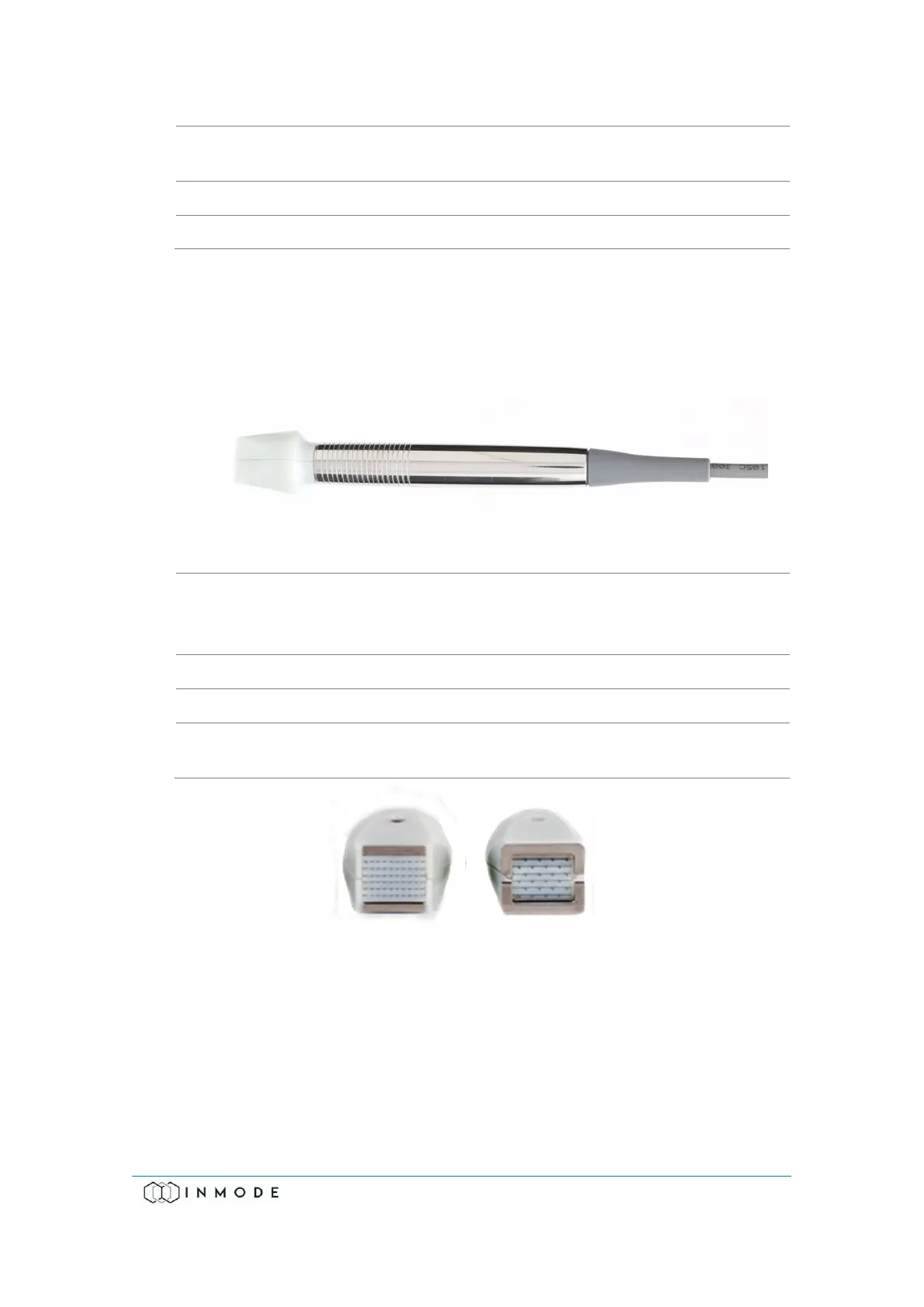

Figure 4-15: Fractora Handpiece
The Handpiece handle is made of metal and has ergonomic design
for easy treatment with high visibility of the treated area (Figure
4-15) .
The Cable has a length of 280cm (110’’).
The Connector is connected to the rear panel of the System.
The Handpiece tips have 2 sizes of pin arrays (Figure 4.14). 60 pins
are 600µ long, and 24 pins are 2500µ long.
Figure 4-16: Fractora Tips: Left 60 pin; Right 24 pin (coated/noncoated)
