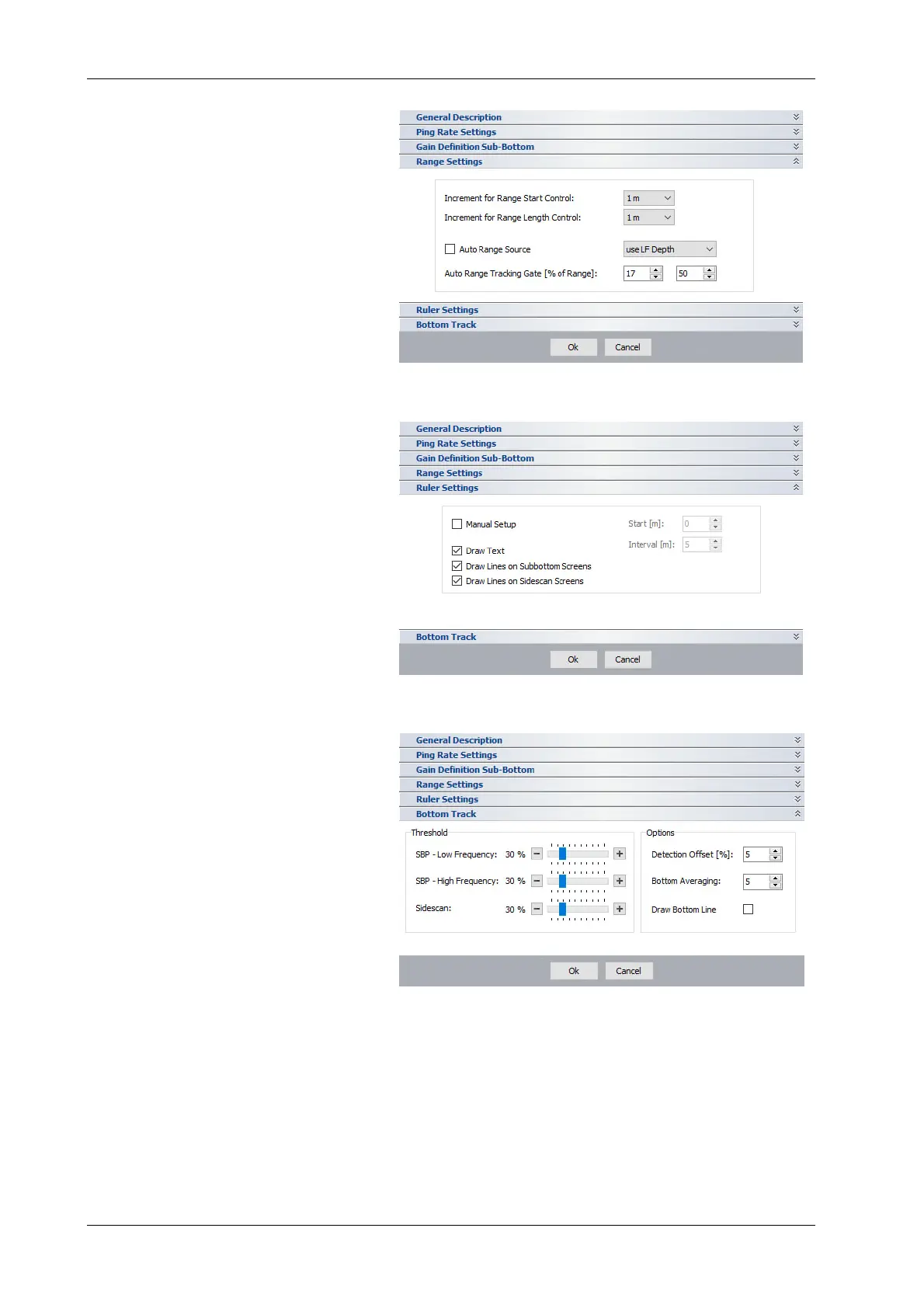

Setup – Range Settings
This sets the increments for the range
controls and the auto range function.
Please see section 4.9.2 on page 43 for
details.
This item is not available with the
INNOMAR “smart” model.
Setup – Ruler Settings
The Ruler Settings are used to custom-
ize the ruler lines shown in the online
echo plots.
!
Usually “Draw Text” and “Draw
Lines” should be enabled.
Setup – Bottom Track
The bottom track can be adjusted using
the “Bottom Track” dialog.
Please see section 4.9.7 on page 46 for
details.
