ASSIST PLUS – Operating instructions V02 Description of the device
10 INTEGRA Biosciences AG
2.3 Overview of INTEGRA Electronic Pipettes

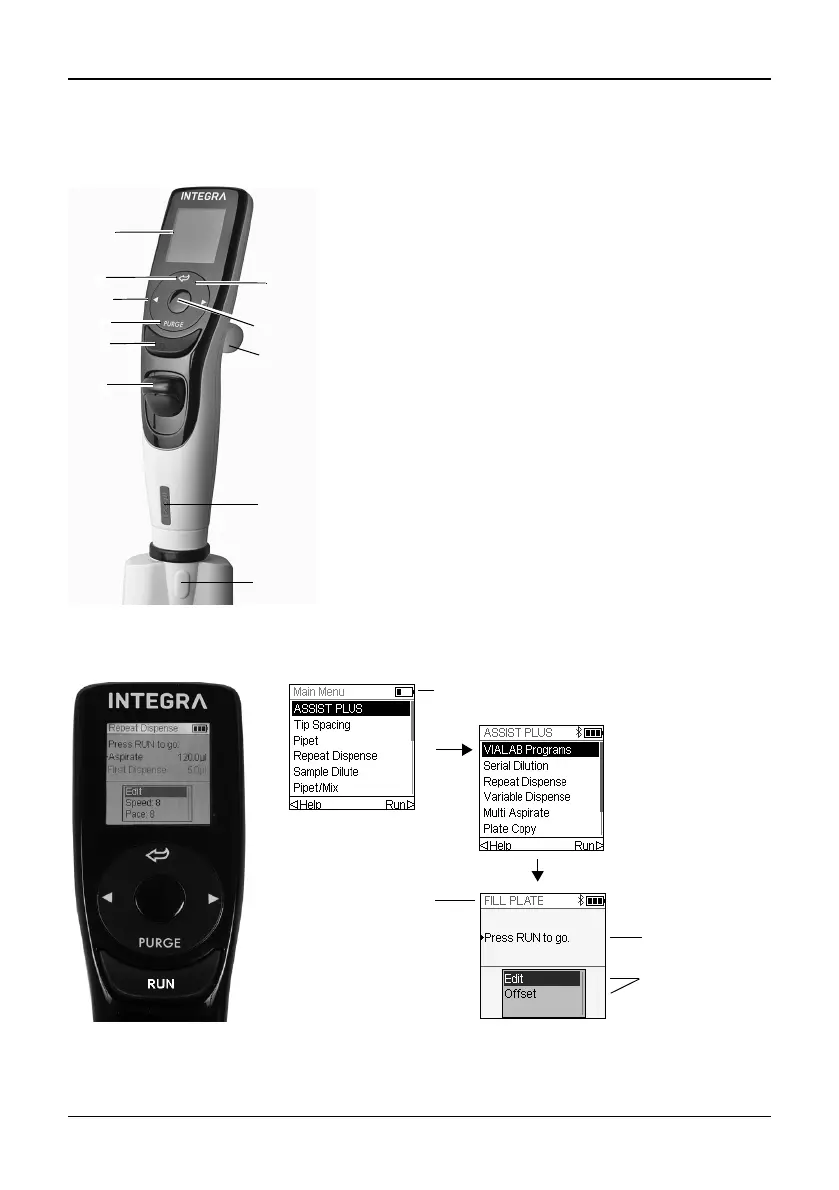

2.3.1 Pipette parts
2.3.2 Display
The Display shows all pipetting options.
24 Display
25 Back button, to navigate backward
26 Touch wheel, spin to scroll and move the cursor
27 OK button, to make a selection
28 Left and right arrow buttons, for selections
29 Purge button, to empty tips
30 Run key, to start operations
31 Tip ejector
32 Finger hook, facilitates easy operation
33 Volume indicator label, color matches GripTip box
insert
34 Tip ejector lid, remove before using the pipette with
ASSIST PLUS
Battery life indicator
select a
Program
category
and a
Program
Instruction
Options
25
28
29
30
31
26
27
32
33
24
34
K
Program Name
OK
OK
