Intel 3210 - MCH Package Dimensions (Bottom View)

Packaging Technology
12 Intel® 3210 and 3200 Chipset Thermal/Mechanical Design Guide
Notes:
1. All dimensions are in millimeters.
2. All dimensions and tolerances conform to ANSI Y14.5 - 1994.

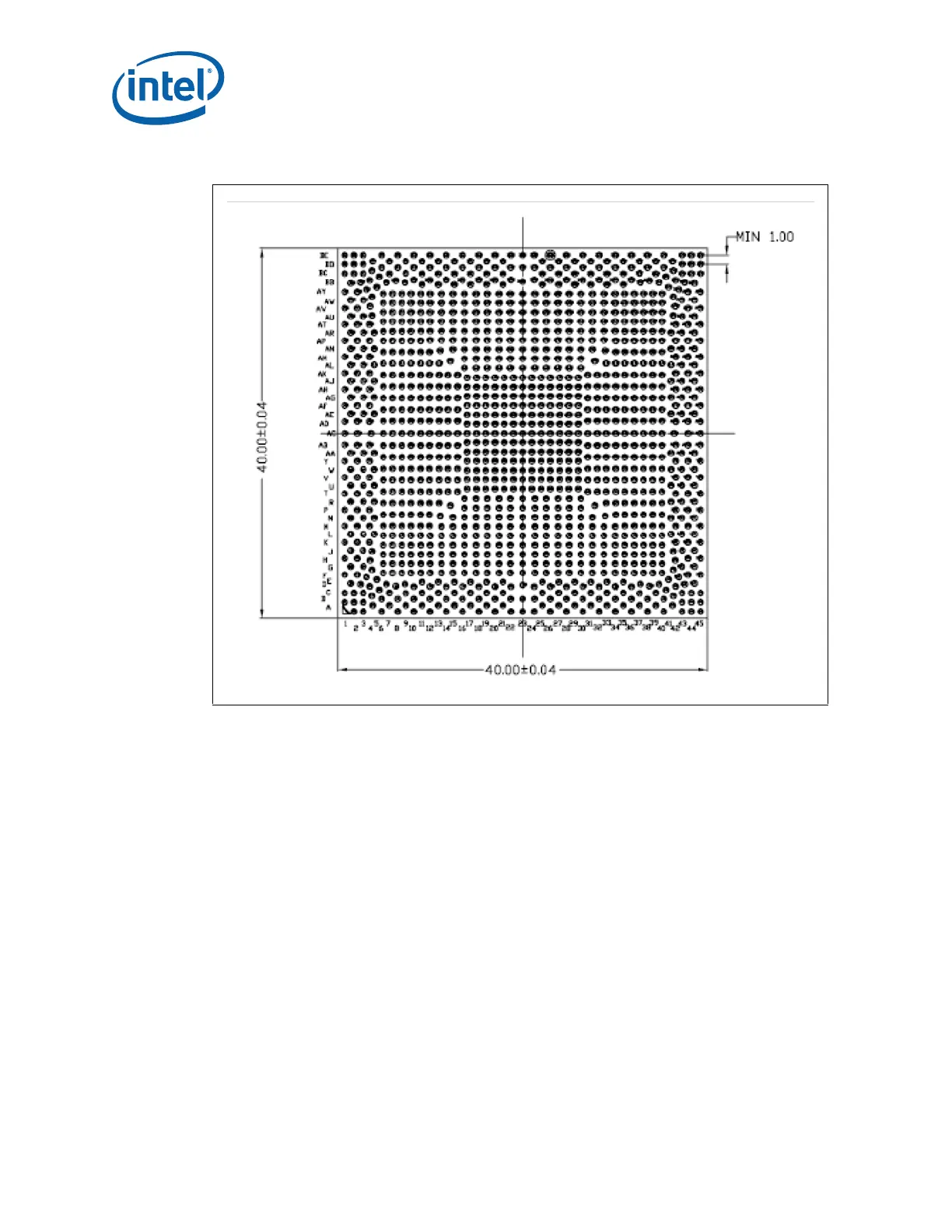

Figure 2-3. MCH Package Dimensions (Bottom View)
