Intel® 3210 and 3200 Chipset Thermal/Mechanical Design Guide 39
Reference Thermal Solution
6.4.4 Reference Thermal Solution Assembly Process
1. Snap the preload clip spring onto the bracket. Assemble the bracket with heatsink,
as shown in Figure 6-4.
2. Populate the backplate to the motherboard and align the nuts with the studs on the
backplate, as shown in Figure 6-5.

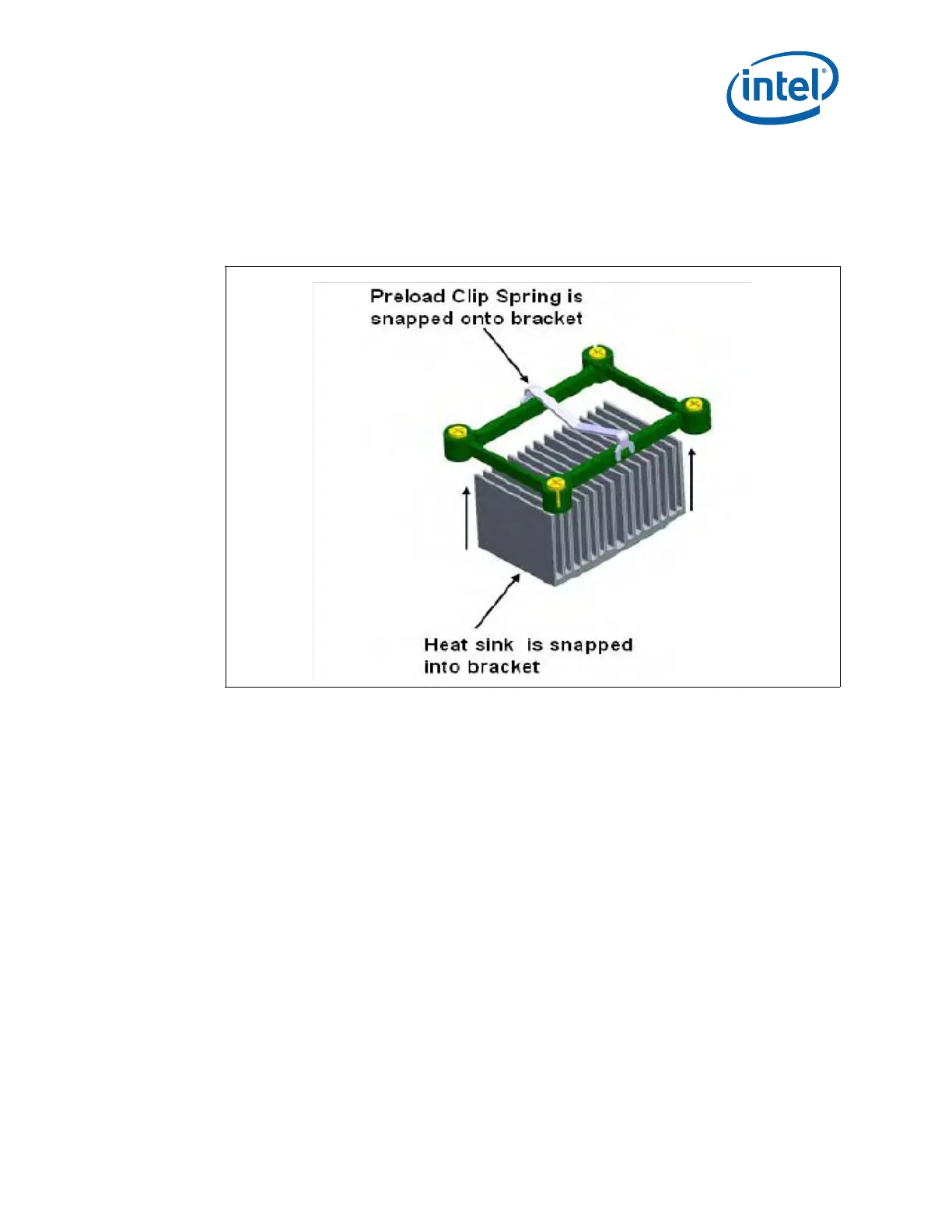

Figure 6-4. Reference Thermal Solution Assembly Process - Heatsink Sub-Assembly
(Step 1)
