Intel® 3210 and 3200 Chipset Thermal/Mechanical Design Guide 51
Mechanical Drawings

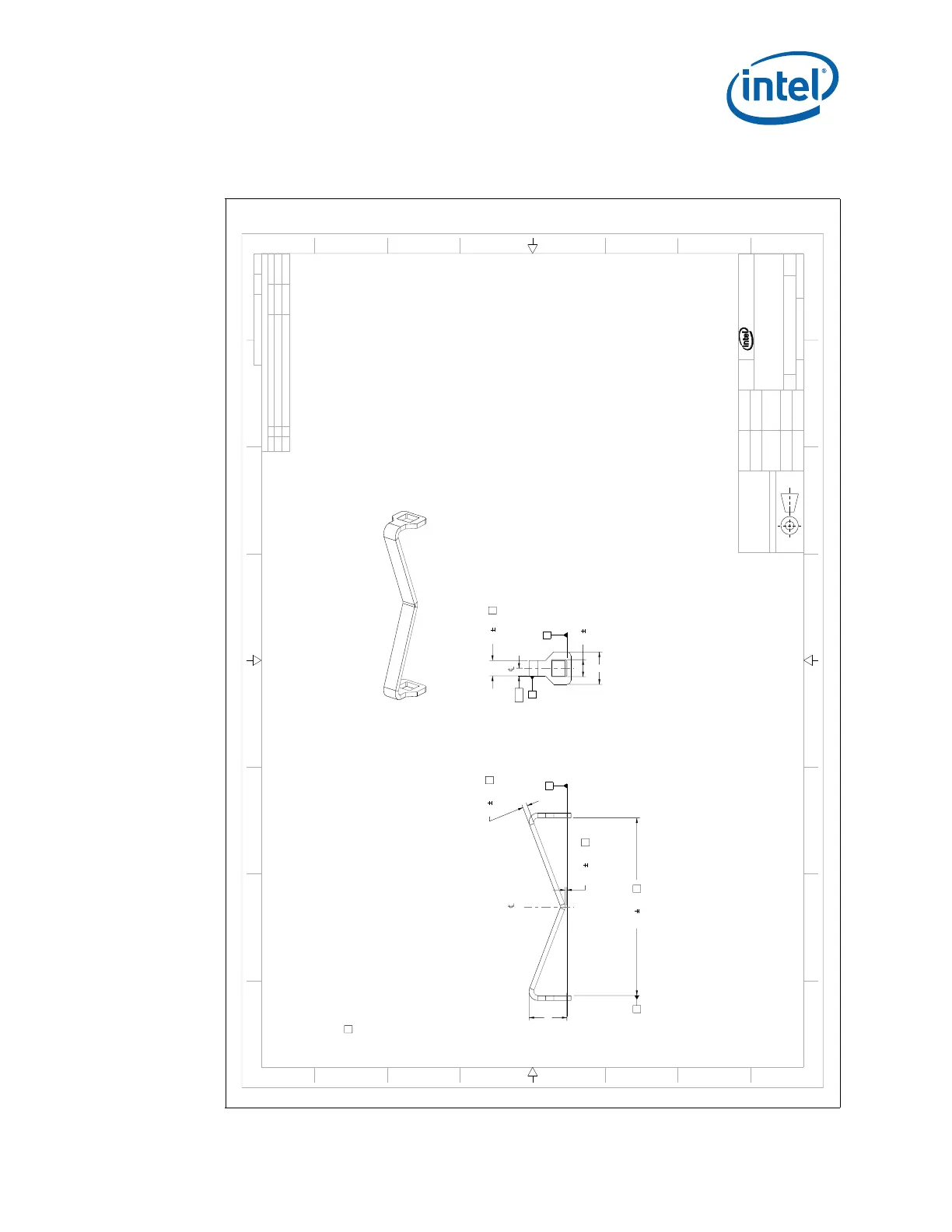

Figure B-6. Intel
®
3210 and 3200 Chipset Reference Thermal Solution - Spring Preload
Clip
8 7 6 5 4 3 2
H G F E D C B A
8 7 6 5 4 3 2 1
H G F E D C B A
THIS DRAWING CONTAINS INTEL CORPORAT ION CONFIDENTIAL INFORMATION. IT IS DISCLOSED IN CONFIDENCE AND ITS CONT ENTS MAY NOT BE DISCLOSED, REPRODUCED, DI SPLAYED OR MODIFIED, WITHOUT THE PRI OR WRITTEN CONSENT OF INTEL CORPORATION.
REVISION HISTORY
ZONE REV DESCRIPTION DATE APPROVED
- A INITIAL DV RELEASE 03/09/07 KJC
1 PRODUCTION RELEASE 06/20/07 KJC
D92698 1 1
DWG. NO SHT. REV
DEPARTMENT
R
2200 MISSION COLLEGE BLVD. P.O. BOX 58119 SANTA CLARA, CA 95052-8119
PST
TITLE
BONE TRAIL,SPRING CLIP,PRELOAD
SIZE DRAWING NUMBER REV
A1 D92698 1
SCALE:
4
DO NOT SCALE DRAWING
SHEET
1
OF
1
SEE NOTESSEE NOTES FINISHMATERIAL 03/09/07P.BORNEMANN DATEAPPROVED BY 03/09/07R.AOKI 03/09/07A.VALPIANI DATECHECKED BY 03/09/07K.CEURTER DATEDRAWN BY 03/09/07K.CEURTER DATEDESIGNED BY
UNLESS OTHERWISE SPECIFIED
INTERPRET DIMENSIONS AND TOLERANCES IN ACCORDANCE WITH ASME Y14.5M-1994
DIMENSIONS ARE IN MILLIMETERS
ALL UNTOLERANCED LINEAR
DIMENSIONS ± 0.3
ANGLES ±1
THIRD ANGLE PROJECTION
5
Cpk TARGET = 1.0 ACCEPTABLE 0.451 0.15
9.651
8
53.8 0.1
4.2 0.25
51.2 0.05
1.9
B543.7 0.25
A
A
C
NOTES: 1. DIMENSIONS ARE IN MILLIMETERS 2. BREAK ALL SHARP EDGES AND CORNERS, GRIND PUNCH MARKS FLAT, NO BURS FROM PUNCH 3. MATERIAL: AISI TYPE 301 1/2 HARD FOR MIN YIELD STRENGTH OF 760 MPa OR INTEL APPROVED EQUIVALENT CRITICAL MATERIAL PROPERTIES: MIN YIELD STRENGTH = 760 MPa 4. FINISH: ZINC OR ELECTROLYTIC NICKEL PLATING PLUS CLEAR CHROMATE COLORLESS PER ASTM B 633 IF NON STAINLESS STEEL ALTERNATE CHOSEN
5 . CRITICAL TO FUNCTION DIMENSION/FEATURE
