Intel Core i7-800 - Space Requirements for the Boxed Processor (Top View); Space Requirements for the Boxed Processor (Overall View)

Thermal/Mechanical Specifications and Design Guidelines 67
Boxed Processor Specifications
Note: Diagram does not show the attached hardware for the clip design and is provided only as a mechanical
representation.

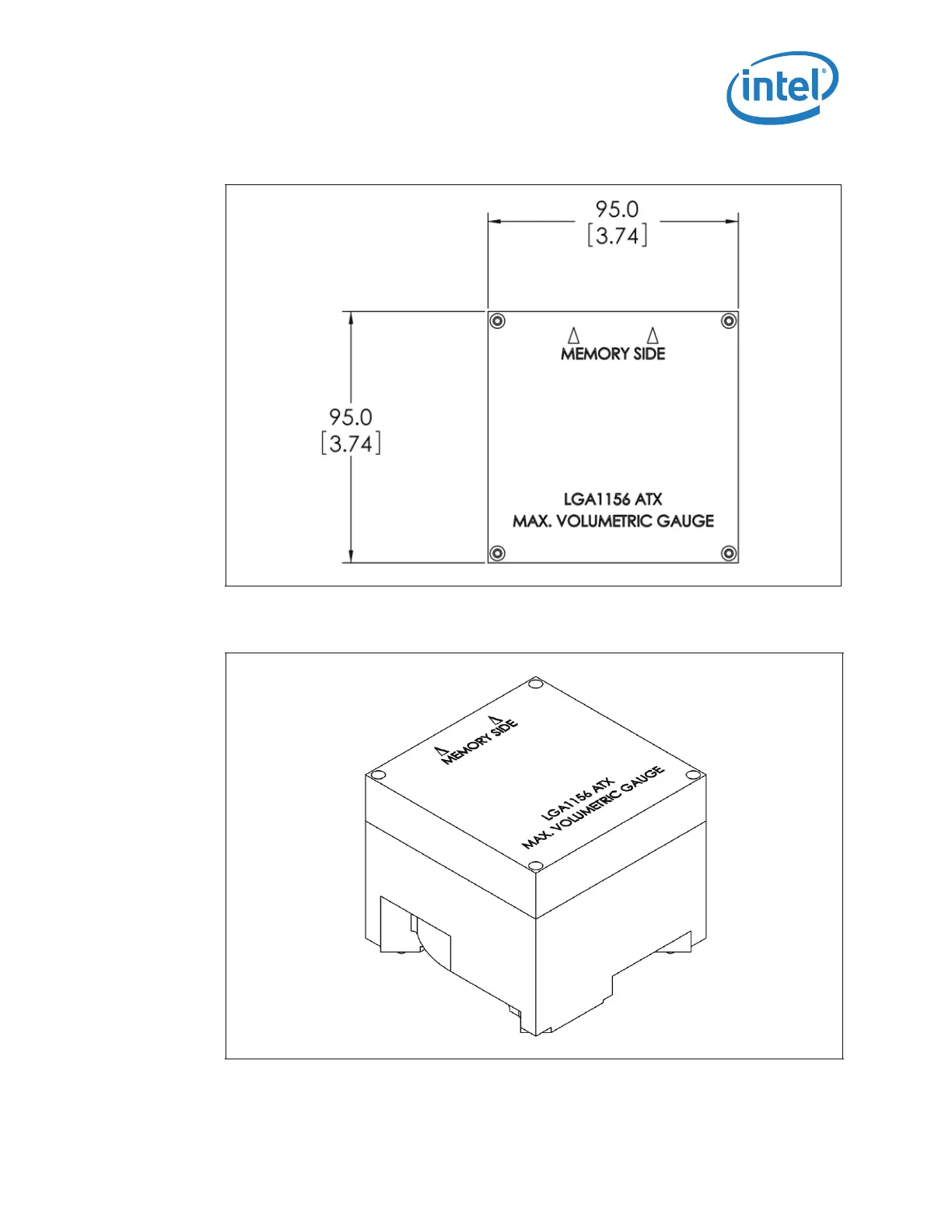

Figure 10-3. Space Requirements for the Boxed Processor (top view)
Figure 10-4. Space Requirements for the Boxed Processor (overall view)
