Desktop Board D815EEA Technical Product Specification
14
1.1.3 D815EEA Board Layout

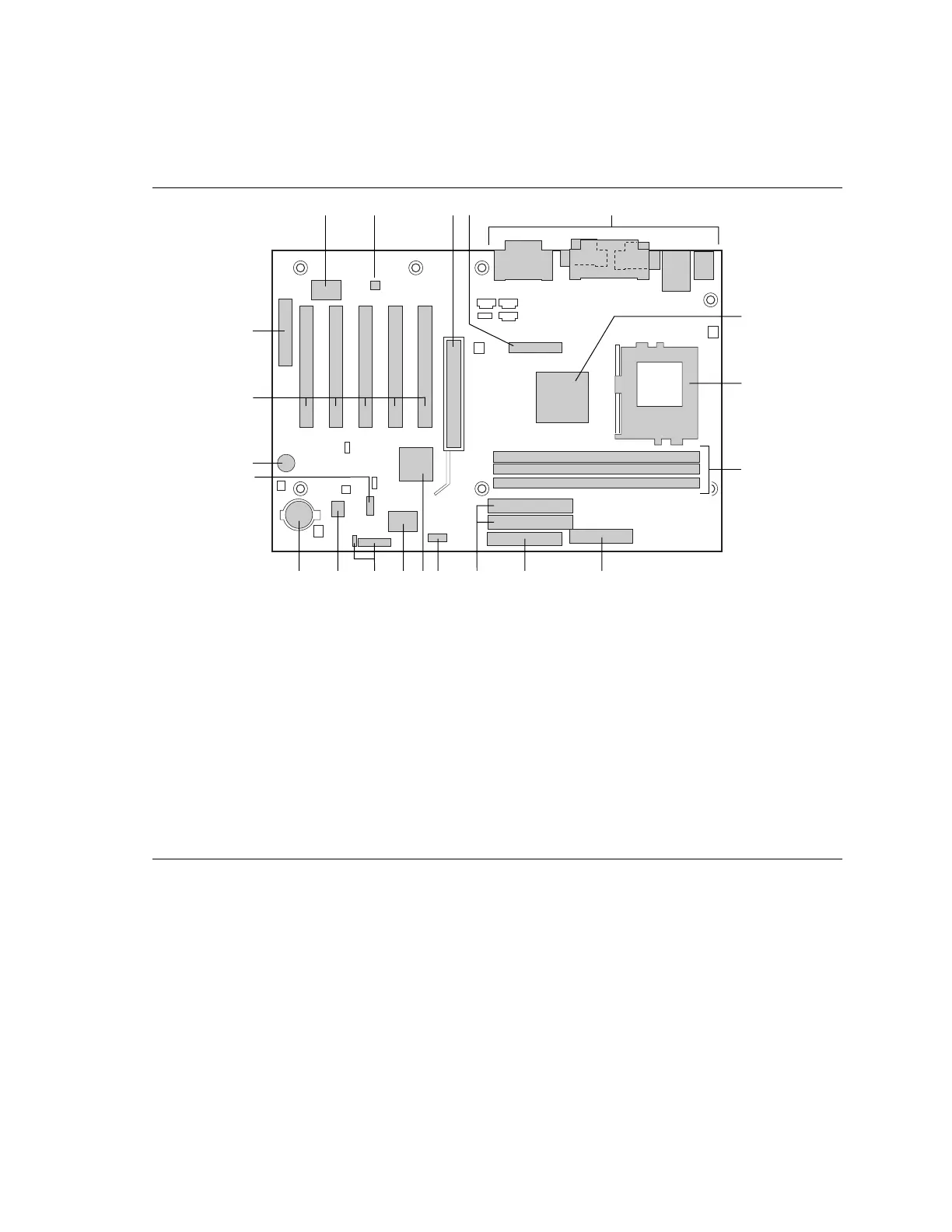

Figure 1 shows the location of the major components on the D815EEA board.
OM10041
EA B C D
KPQ O N J IML
F
G
H
S
R
U
T
A Creative Labs ES1373 Digital Controller
(optional)
K
L
IDE connectors
Serial port B connector
B AD1885 audio codec (optional) M Intel 82801BA I/O Controller Hub (ICH2)
C AGP universal connector N SMSC LPC47M102 I/O Controller
D DVO connector O Front panel connectors
E Back panel connectors P Intel 82802AB 4 Mbit Firmware Hub (FWH)
F Intel 82815E Graphics and Memory Controller
Hub (GMCH)
Q
R
Battery
Front panel USB connector
G Processor socket S Speaker
H DIMM sockets T PCI bus add-in card connectors
I
J
Power connector
Diskette drive connector
U Communication and Networking Riser (CNR)
connector (optional)
Figure 1. D815EEA Board Components

Intel D815EEA Specifications

General

Brand	Intel
Model	D815EEA
Category	Motherboard
Language	English
