Technical Reference
75
2.10 Mechanical Considerations
2.10.1 Form Factor

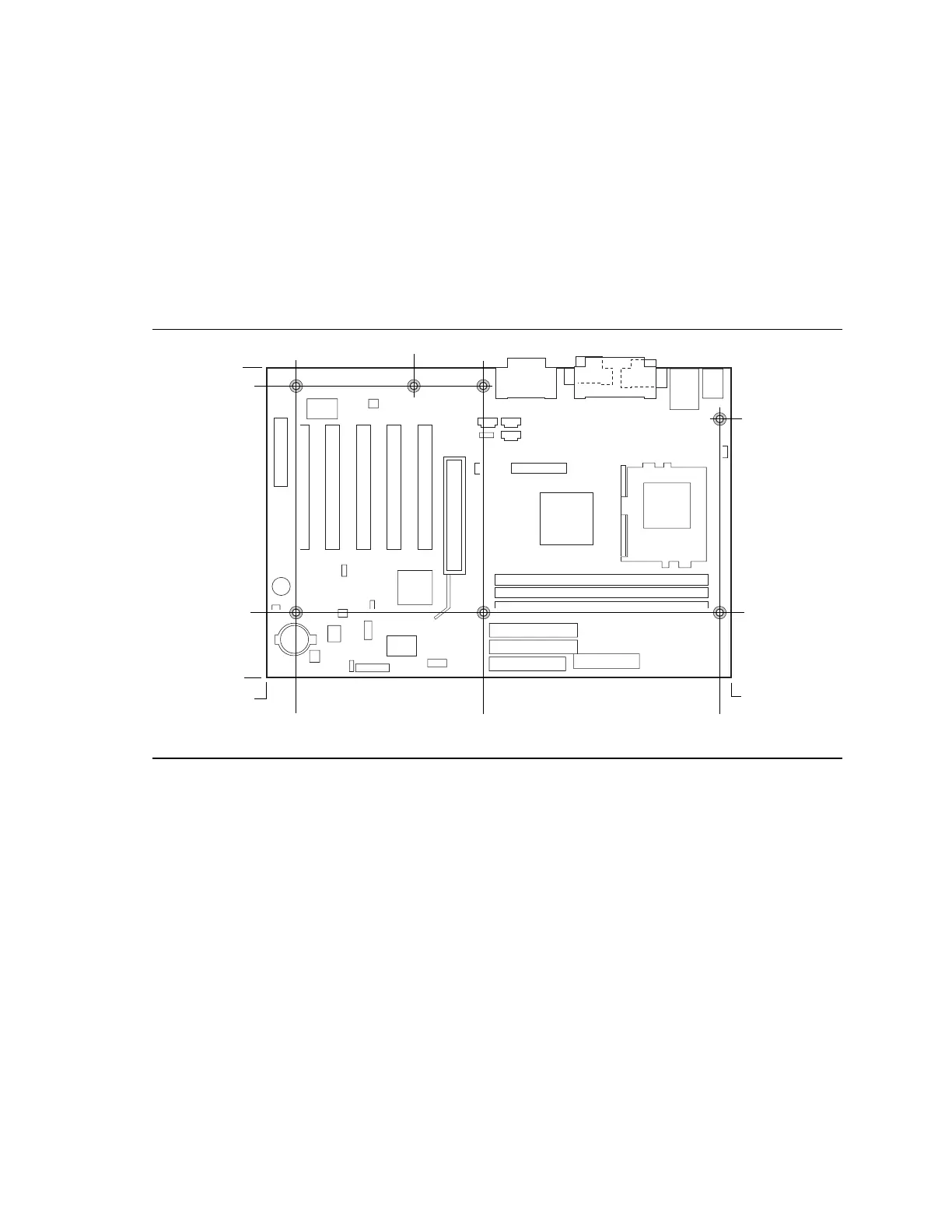

The D815EEA board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the
mechanical form factor for the D815EEA board. Dimensions are given in inches [millimeters].
The outer dimensions are 8.20 inches by 12.00 inches [208.20 millimeters by 304.80 millimeters].
Location of the I/O connectors and mounting holes are in compliance with the ATX specification
(see Section 1.3).
OM10048
0.40[10.16]
0.00
7.80[198.12]
0.65[16.51]
4.90[124.46] 11.10[281.94]
0.90[22.86]
11.35[288.29]
0.00
6.10[154.94]
3.10[78.74]
Figure 14. D815EEA Board Dimensions
