Desktop Board D815EEA Technical Product Specification
22
1.6 Intel
®
815E Chipset
The Intel 815E chipset consists of the following devices:
• 82815E Graphics and Memory Controller Hub (GMCH) with Accelerated Hub Architecture
(AHA) bus
• 82801BA I/O Controller Hub (ICH2) with AHA bus
• 82802AB Firmware Hub (FWH).
The GMCH is a centralized controller for the system bus, the memory bus, the AGP bus, and the
Accelerated Hub Architecture interface. The ICH2 is a centralized controller for the board’s I/O
paths. The FWH provides the nonvolatile storage of the BIOS as well as hardware-dependent
security features. The chipset provides the interfaces shown in Figure 3.
815E Chipset
82801BA
I/O Controller Hub
(ICH2)
82815E
Graphics and
Memory Controller
Hub (GMCH)
82802AB
Firmware Hub
(FWH)
AHA
Bus
System Bus
ATA-33/66/100
USB
AGP
Interface
OM10202
Network
AC LinkPCI BusSMBus
Digital video
output
SDRAM Bus
LPC Bus

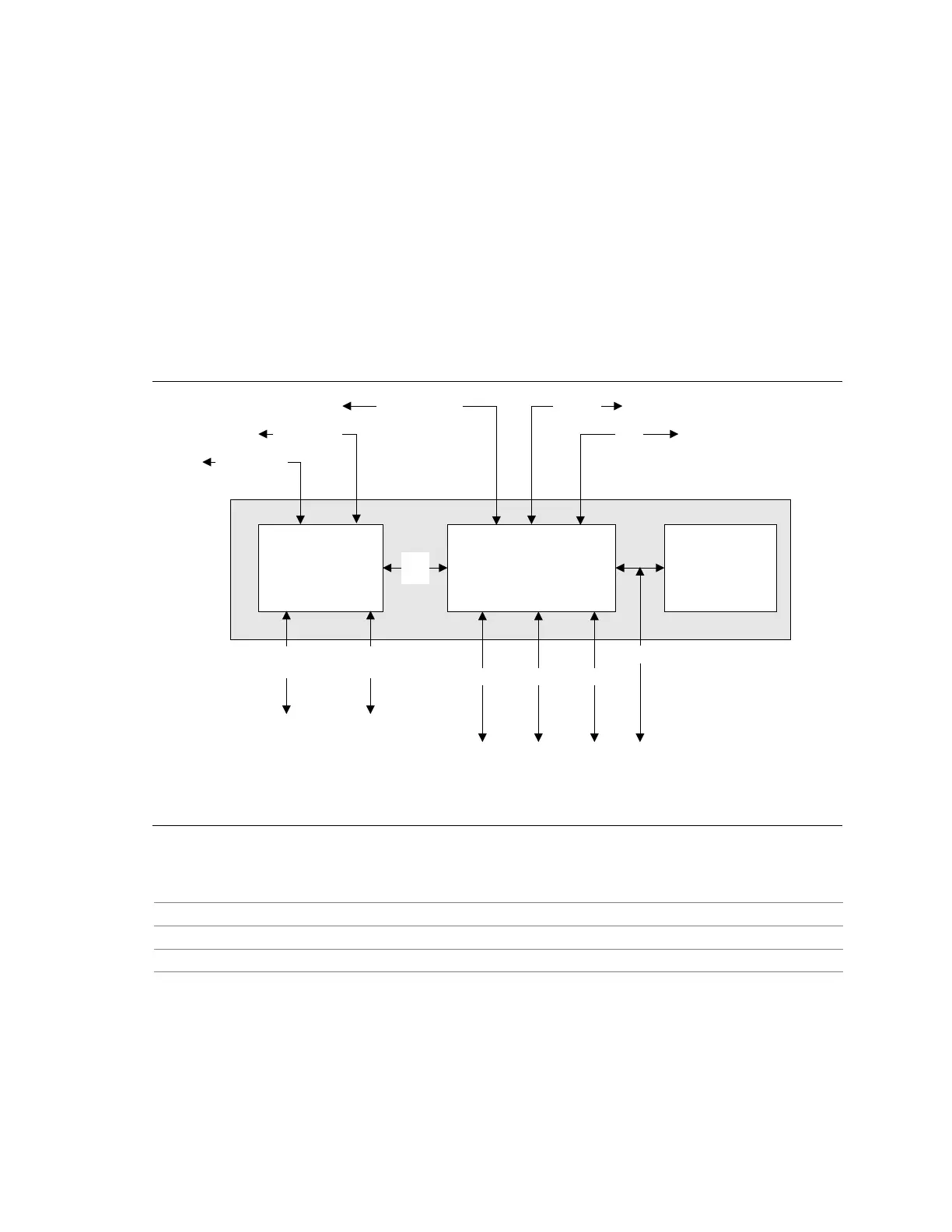

Figure 3. Intel 815E Chipset Block Diagram
For information about Refer to
The Intel 815E chipset Http://developer.intel.com
The resources used by the chipset Chapter 2
The chipset’s compliance with ACPI, APM, AC ‘97 Section 1.3, page 16

Intel D815EEA Specifications

General

Brand	Intel
Model	D815EEA
Category	Motherboard
Language	English
