Technical Reference
81
CAUTION
The processor voltage regulator area (item A in Figure 16) can reach a temperature of up to 85
o
C
in an open chassis. System integrators should ensure that proper airflow is maintained in the
voltage regulator circuit. Failure to do so may result in damage to the voltage regulator circuit.

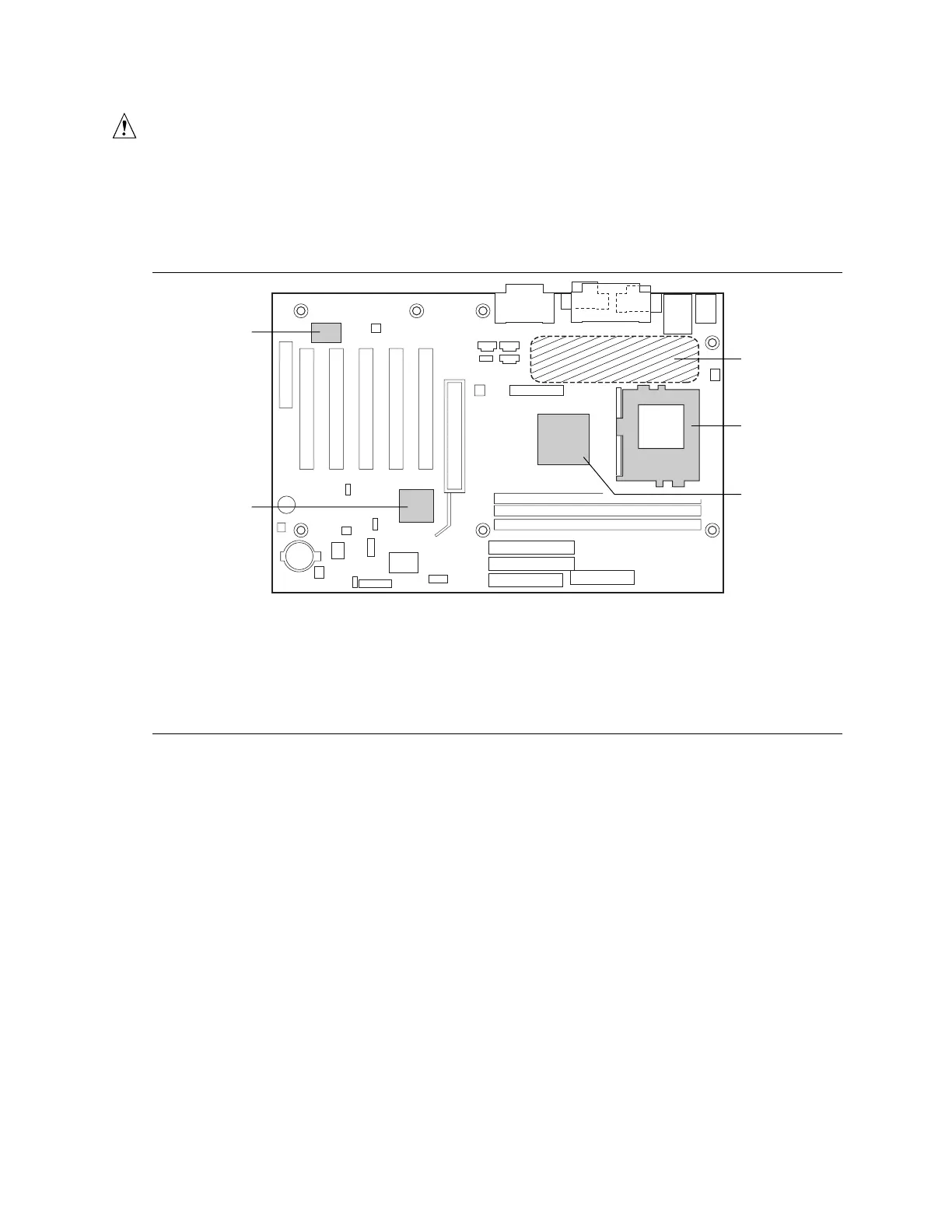

Figure 16 shows the locations of the localized high temperature zones.
OM10049
B
C
A
E
D
A Processor voltage regulator area
B Processor
C Intel
82815E GMCH
D Intel
82801BA ICH2
E Creative Labs ES1373 digital controller
Figure 16. Localized High Temperature Zones
