Desktop Board D815EEA Technical Product Specification
76
2.10.2 I/O Shield
The back panel I/O shield for the D815EEA board must meet specific dimension and material
requirements. Systems based on this board need the back panel I/O shield to pass certification

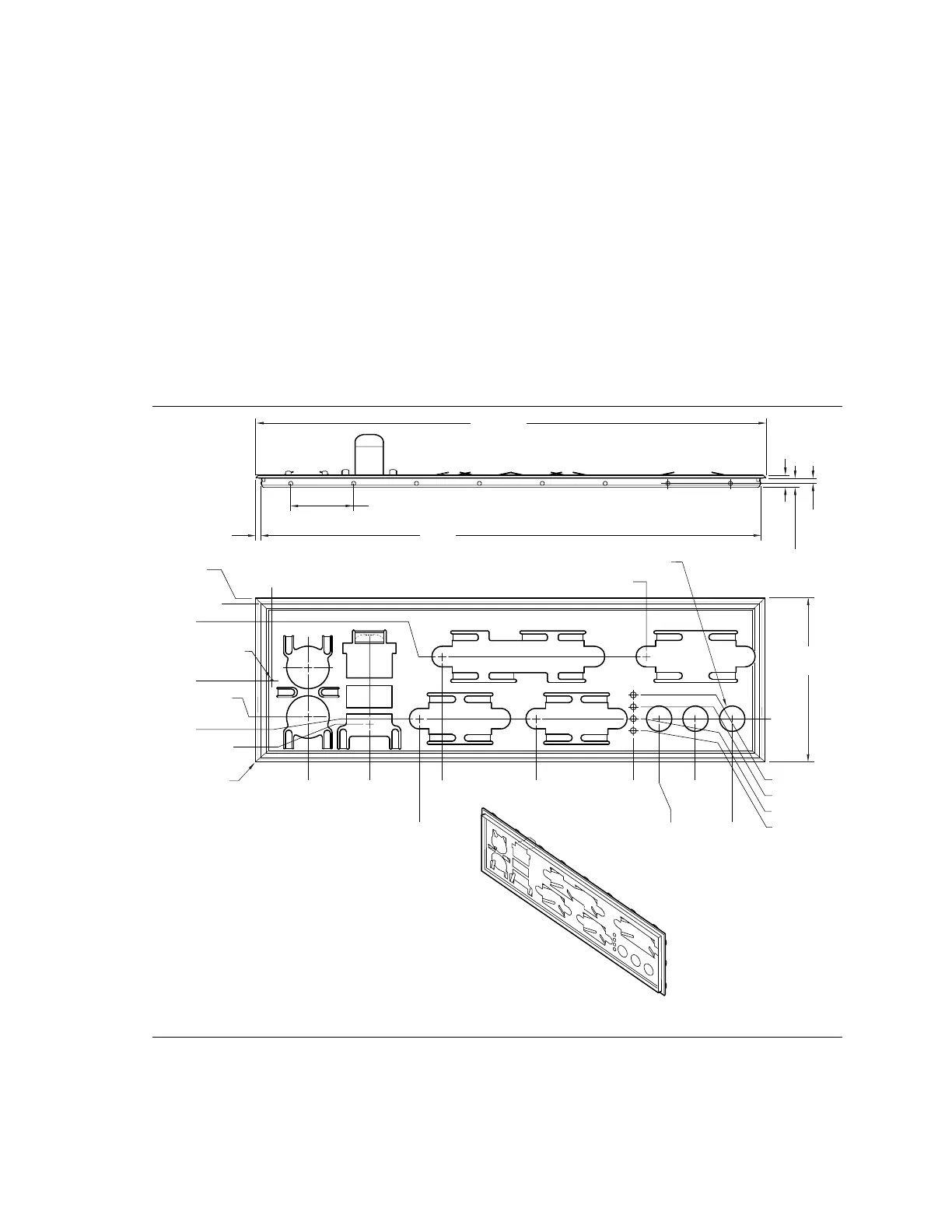

testing. Figure 15 shows the critical dimensions of the chassis-dependent I/O shield. Dimensions
are given in inches, to a tolerance of ±0.02 inches.
These figures also indicate the position of each cutout. Additional design considerations for I/O
shields relative to chassis requirements are described in the ATX specification. See Section 1.3 for
information about the ATX specification.
✏
NOTE
An I/O shield compliant with the ATX chassis specification 2.01 is available from Intel.
0.94 Ref
[23.87]
0.450
[11.43]
0.471
[11.95]
0.568
[14.43]
0.88[22.35]
0.280
[7.10]
0.00
[0.00]
0.00
[0.00]
0.442
[11.22]
1.189
[30.20]
2.071
[52.60]
1.799
[45.68]
3.215
[81.65]
4.618[117.30]
4.783
[121.50]
5.276
[134.00]
5.768
[146.50]
OM10343
4.404
[111.85]
8x R .02 Min
[0.50]
3x Dia 0.33[8.38]
0.61 Ref
[15.49]
6.268
[159.20]
0.787 ± .01 Typ.[20.00]
6.390 Ref
[162.30]
1.89 Ref
[48.00]
0.171[4.33]
0.321[8.14]
0.471[11.95]
0.621[15.76]
0.465
[11.80]
0.157
[4.00]
0.114
[2.90]
0.063
[1.60]
0.39 Dia
[9.90]
Pictorial
View
Figure 15. I/O Shield Dimensions
