Desktop Board D815EEA Technical Product Specification
54
2.8.1 Back Panel Connectors

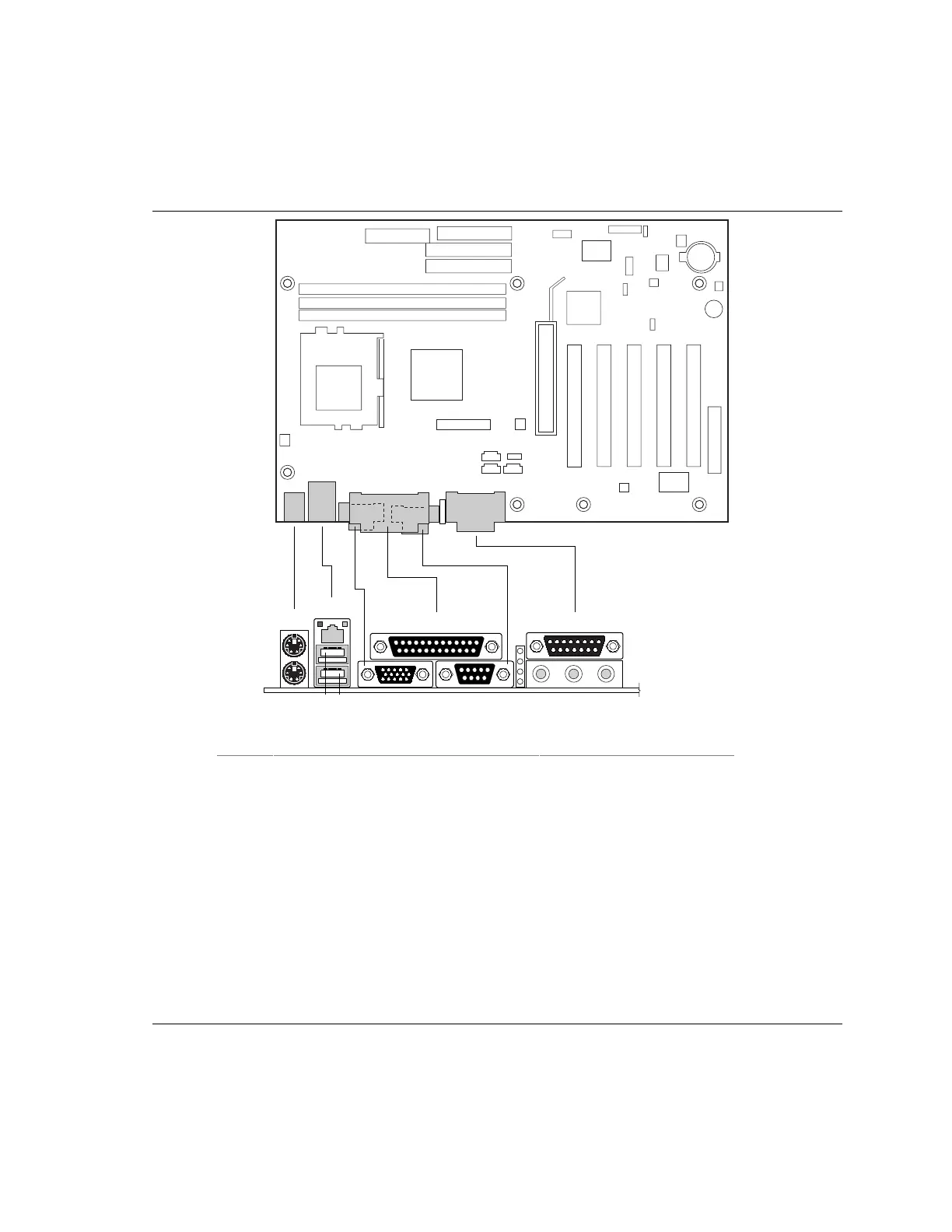

Figure 9 shows the location of the back panel connectors. The back panel connectors are color-
coded in compliance with PC 99 recommendations. The figure legend below lists the colors used.
OM10043
B
D
F
I
JLK
A
H
G
C
E
Item Description Color For more information see:
A PS/2 mouse port Green Table 18
B PS/2 keyboard port Purple Table 18
C LAN Black Table 19
D USB port 0 Black Table 20
E USB port 1 Black Table 20
F VGA port Dark blue Table 21
G Parallel port Burgundy Table 22
H Serial port A Teal Table 23
I MIDI / Game port Gold Table 24
J Audio line out Lime green Table 25
K Audio line in Light blue Table 26
L Mic in Pink Table 27
Figure 9. Back Panel Connectors
