Technical Reference
69
2.8.3
External
I/O Connectors

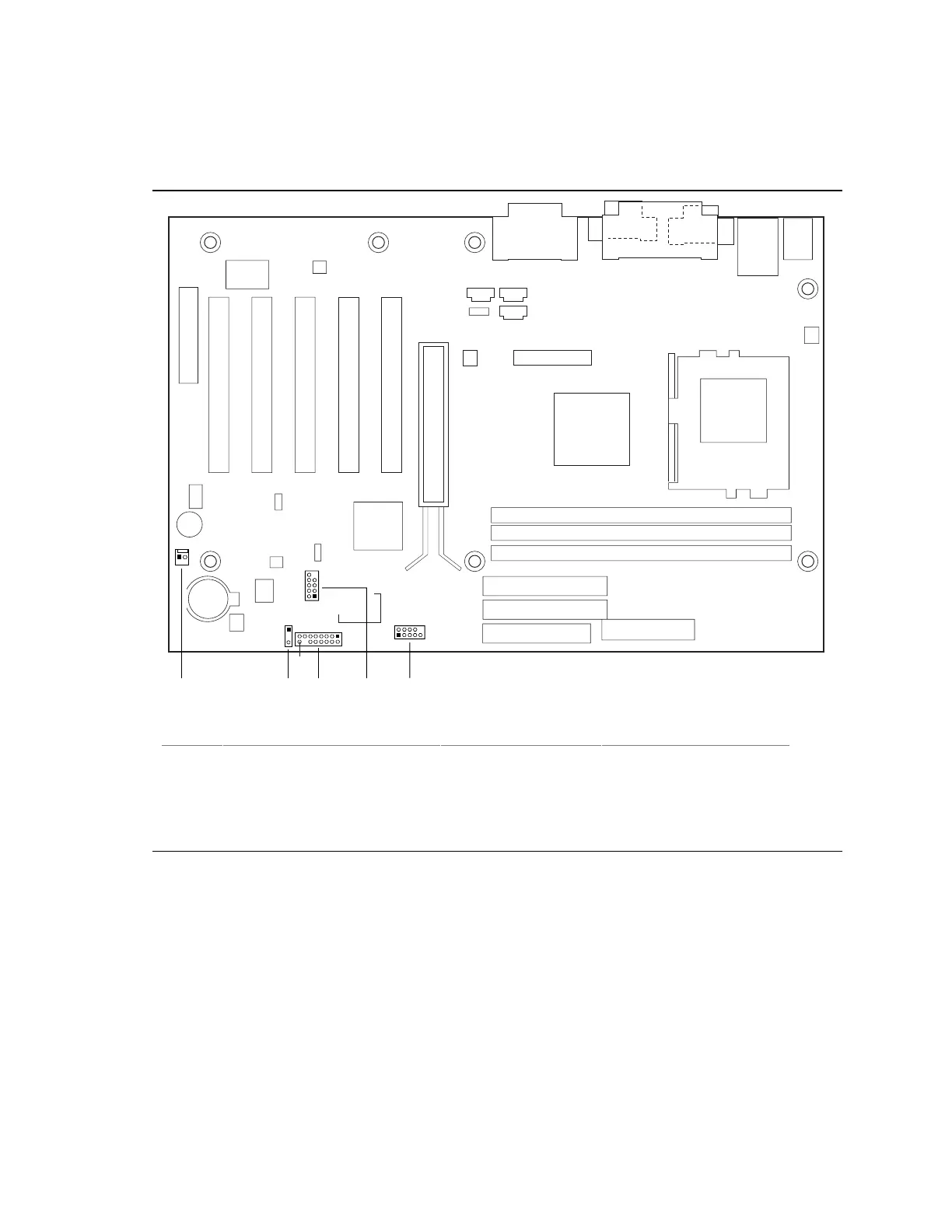

Figure 12 shows the locations of the external I/O connectors.
OM10046
1
8
9
2
1
16
15
2
1
2
10
7
1
1
CD
B
E
A
Item
Description
Reference Designator
For more information see:
A
SCSI LED
J
7A1
Table 46
B
Auxiliary front panel pow
er LED
J8C
2
Table 47
C
Front panel
J8C3
Table 48
D
Front panel USB
J8C1
Table 44
E
Serial port B
J8E1
Table 45
Figure 12. External I/O Connectors
