Monitoring the distribution
on a port
To monitor the distribution percentages of unicast, multicast and
broadcast frames on a specific port:
1 Right-click the port.
2 Select Port Details>Distribution.
Monitoring the spanning
tree statistics on a port
To monitor the spanning tree statistics on a specific port:
1 Right-click the port.
2 Select Port Details>Spanning Tree.
Monitoring the received
packets on a port
To monitor the received packets on a specific port:
1 Right-click the port.

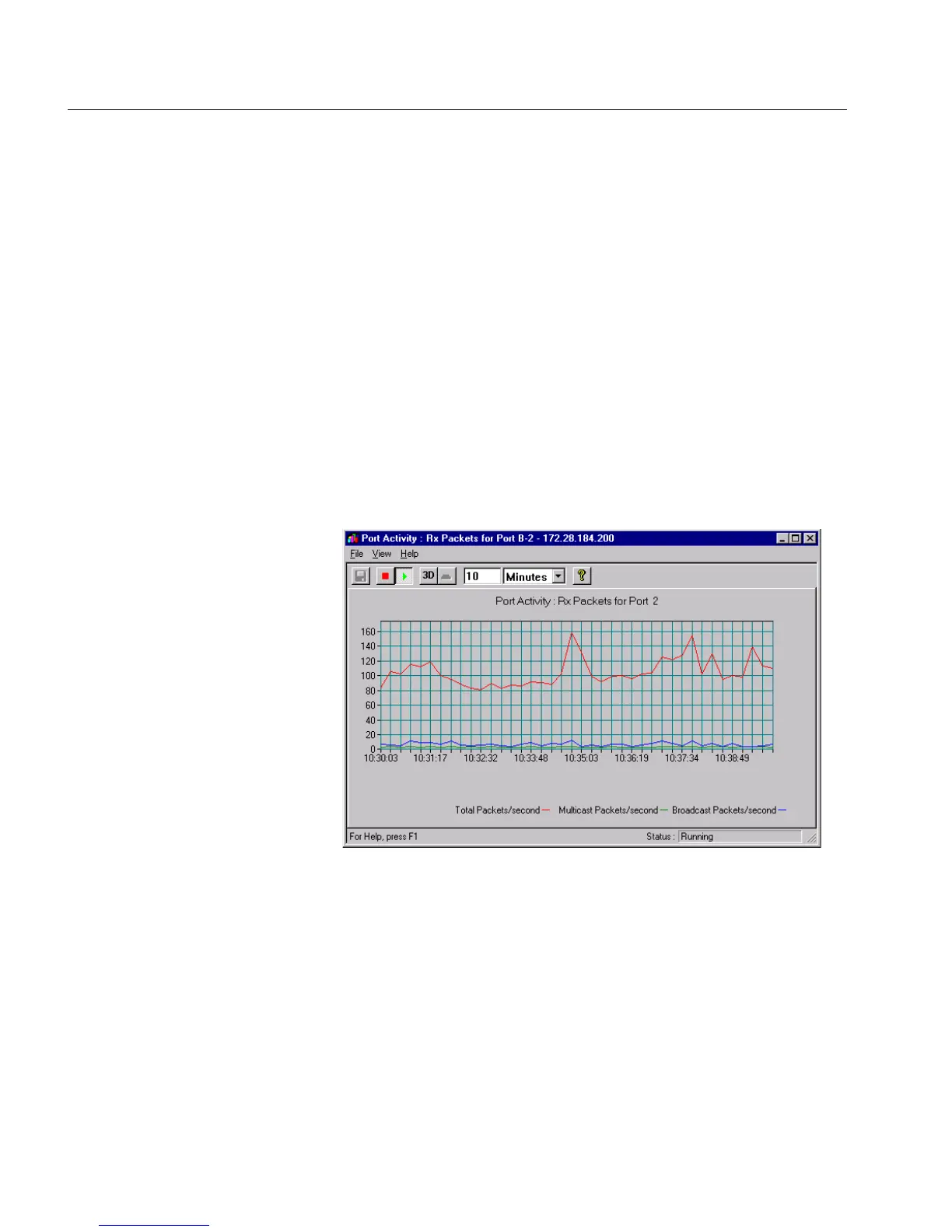

2 Select Port Activity>RX Packets:
3 To change the graph, click 3D.
4 To freeze the graph, click View>Stop Collection.
Monitoring the packets
transmitted from a port
To monitor the transmitted packets on a specific port:
1 Right-click the port.
2 Select Port Activity>TX Packets.
3 To change the graph, click 3D.
4 To freeze the graph, click View>Stop Collection.
