Electrical Specifications

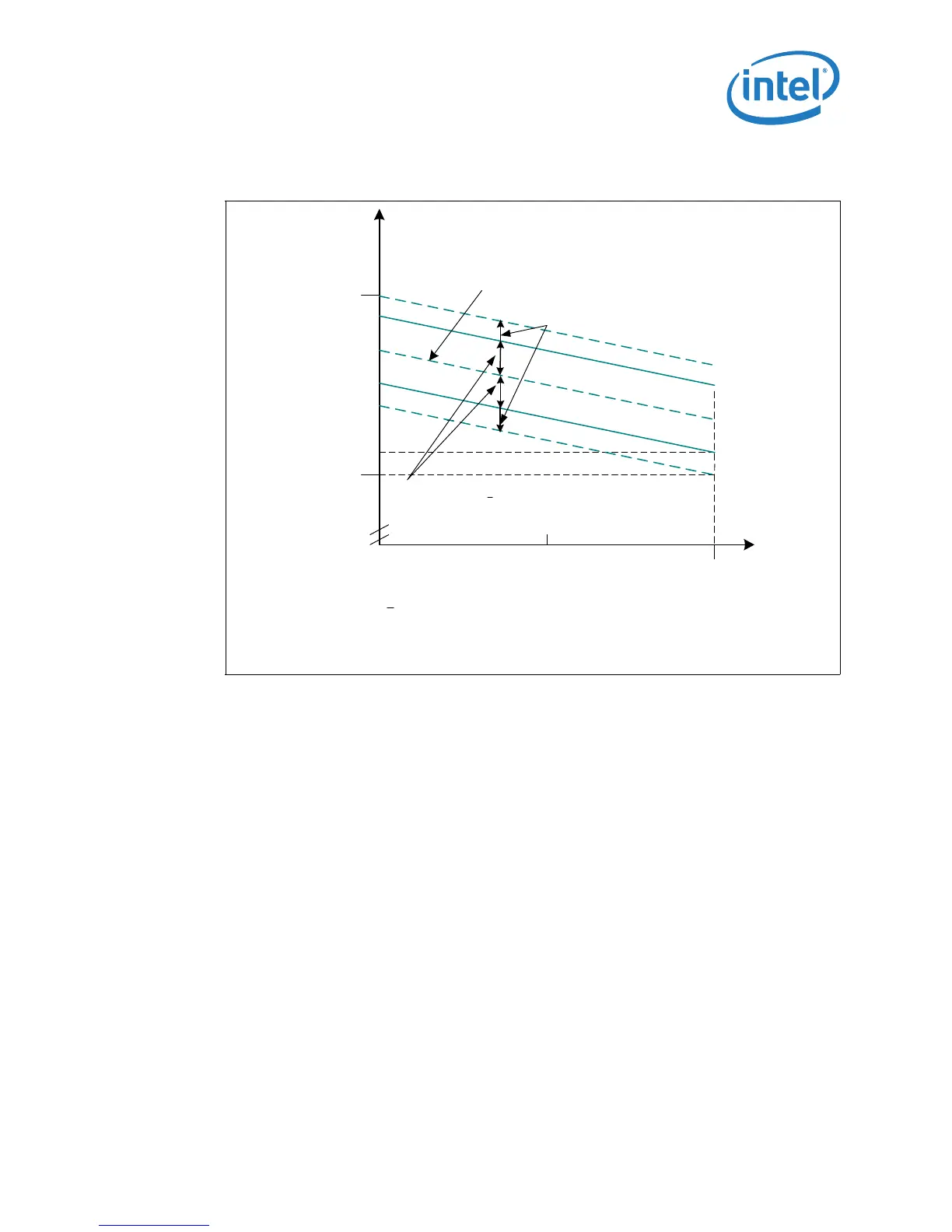

Figure 4. Active V
CC
and I
CC
Loadline for Standard Voltage, Low-Power SV (25 W) and
Dual-Core, Extreme Edition Processors
I
CC-CORE
max
{HFM|LFM}
V
CC-CORE
[V]
V
CC-CORE
nom {HFM|LFM}
+/-V
CC-CORE
Tolerance
= VR St. Pt. Error 1
/
V
CC-CORE, DC
min {HFM|LFM}
V
CC-CORE, DC
max {HFM|LFM}
V
CC-CORE
max {HFM|LFM}
V
CC-CORE
min {HFM|LFM}
10mV= RIPPLE
I
CC-CORE
[A]
0
Slope = -2.1 mV/A at package
VccSense, VssSense pins.
Differential Remote Sense required.
Note 1
/ V
CC-CORE
Set Point Error Tolerance is per below:
Tolerance V
CC-CORE
VID Voltage Range
--------------- --------------------------------------------------------
+/-1.5% V
CC-CORE
> 0.7500V
+/-11.5mV 0.5000V </= Vcc_core </= 0.75000V
