Electrical Specifications
NOTES:
1. Applies to Low-Voltage, Ultra-Low-Voltage and Power Optimised Performance processors in
22 mmx22 mm package.
2. Deeper Sleep mode tolerance depends on VID value.

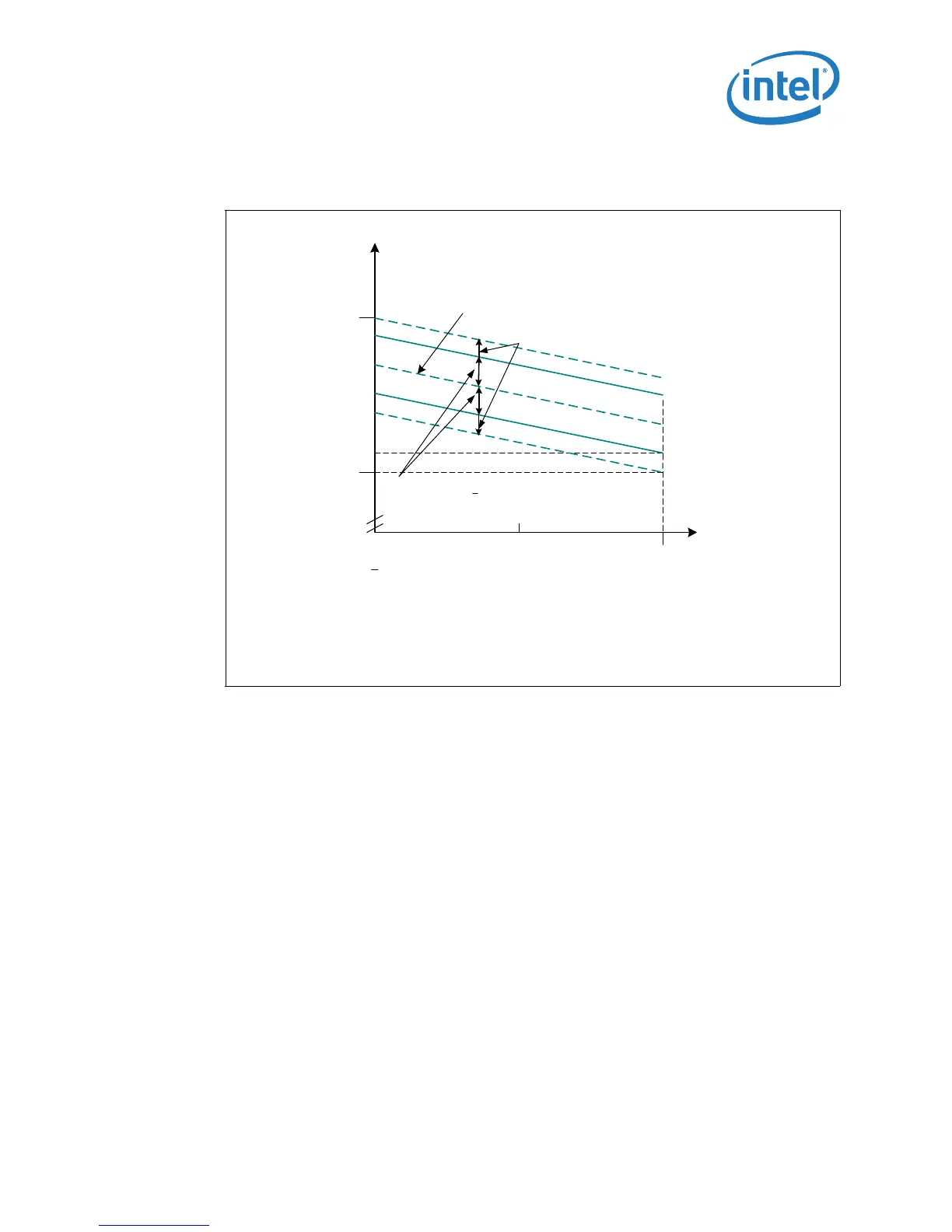

Figure 8. Deeper Sleep VCC and ICC Loadline for Low-Voltage, Ultra-Low-Voltage and
Power Optimized Performance Processor
I
CC-CORE
max
{HFM|LFM}
V
CC-CORE
[V]
V
CC-CORE
nom
{HFM|LFM}
+/-V
CC-CORE
Tolerance
= VR St. Pt. Error 1
/
V
CC-CORE, DC
min
{HFM|LFM}
V
CC-CORE, DC
max {HFM|LFM}
V
CC-CORE
max {HFM|LFM}
V
CC-CORE
min {HFM|LFM}
10mV= RIPPLE
I
CC-CORE
[A]
0
Slope = -4.0 mV/A at package
VccSense, VssSense pins.
Differential Remote Sense required.
Note 1
/ V
CC-CORE
Set Point Error Tolerance is per below:
Tolerance V
CC-CORE
VID Voltage Range
--------------- --------------------------------------------------------
+/-[(VID*1.5%)-3mV] V
CC-CORE
> 0.7500V
+/-(11.5mV-3mV) 0.5000V </= V
CC-CORE
</= 0.7500V
Total tolerance window
including ripple is +/-35mV for C6 0.3000V </= V
CC-CORE
< 0.5000V

Intel P8700 - Core 2 Duo Processor Specifications

General

Processor Number	P8700
Number of Cores	2
Threads	2
Clock Speed	2.53 GHz
Cache	3 MB L2 Cache
Bus Speed	1066 MHz
TDP	25 W
Lithography	45 nm
Socket	PGA478
Instruction Set	64-bit
Max Memory Size	8 GB
Max Memory Channels	2
Max Memory Bandwidth	17.1 GB/s
Thermal Monitoring Technologies	Yes
Execute Disable Bit	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Package Size	35mm x 35mm
Intel 64	Yes
Intel Trusted Execution Technology	No
AES New Instructions	No
Virtualization Technology	VT-x
Memory Types	DDR3
