Intel P8700 - Core 2 Duo Processor - Core Low-Power State Descriptions; Core C0 State; Core C1;Autohalt Powerdown State; Package Low-Power States

Datasheet
13
Low Power Features
NOTE:
1. AutoHALT or MWAIT/C1.
2.1.1 Core Low-Power State Descriptions
2.1.1.1 Core C0 State
This is the normal operating state for cores in the processor.
2.1.1.2 Core C1/AutoHALT Powerdown State
C1/AutoHALT is a low-power state entered when a core executes the HALT instruction.
The processor core will transition to the C0 state upon occurrence of SMI#, INIT#,
LINT[1:0] (NMI, INTR), or FSB interrupt messages. RESET# will cause the processor to
immediately initialize itself.
A System Management Interrupt (SMI) handler will return execution to either Normal
state or the AutoHALT Powerdown state. See the Intel® 64 and IA-32 Architectures
Software Developer's Manuals, Volume 3A/3B: System Programmer's Guide for more
information.

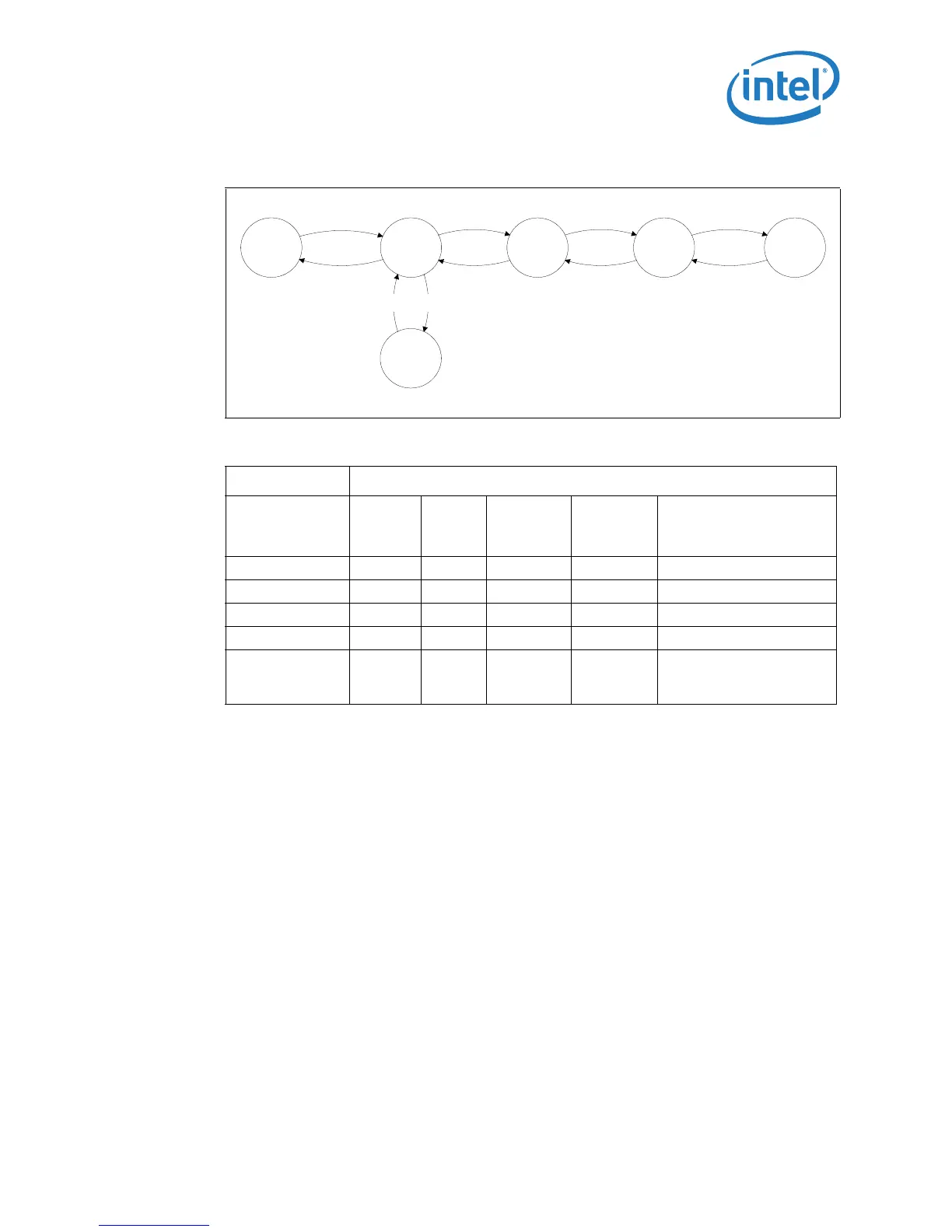

Figure 2. Package Low-Power States
Table 1. Coordination of Core Low-Power States at the Package Level
Package State Core1 State
Core0 State C0 C1
1
C2 C3
C4/Deep Power Down
Technology State
(Code Named C6 State)
C0 Normal Normal Normal Normal Normal
C1
1
Normal Normal Normal Normal Normal
C2 Normal Normal Stop-Grant Stop-Grant Stop-Grant
C3 Normal Normal Stop-Grant Deep Sleep Deep Sleep
C4/Deep Power
Down Technology
Normal Normal Stop-Grant Deep Sleep
Deeper Sleep /Intel®
Enhanced Deeper Sleep/
Intel® Deep Power Down
Stop Grant
Snoop
Normal
Stop
Grant
Deep
Sleep
STPCLK# asserted
Snoop
serviced
Snoop
occurs
Deeper
Sleep
†
Sleep
SLP# asserted
SLP# deasserted
DPSLP# asserted
DPSLP# deasserted DPRSTP# deasserted
DPRSTP# asserted
STPCLK# deasserted
† — Deeper Sleep includes the Deeper Sleep state, Deep C4 sub-state, and C6
