Intel P8700 - Core 2 Duo Processor Datasheet

Package Mechanical Specifications and Pin Information
52 Datasheet

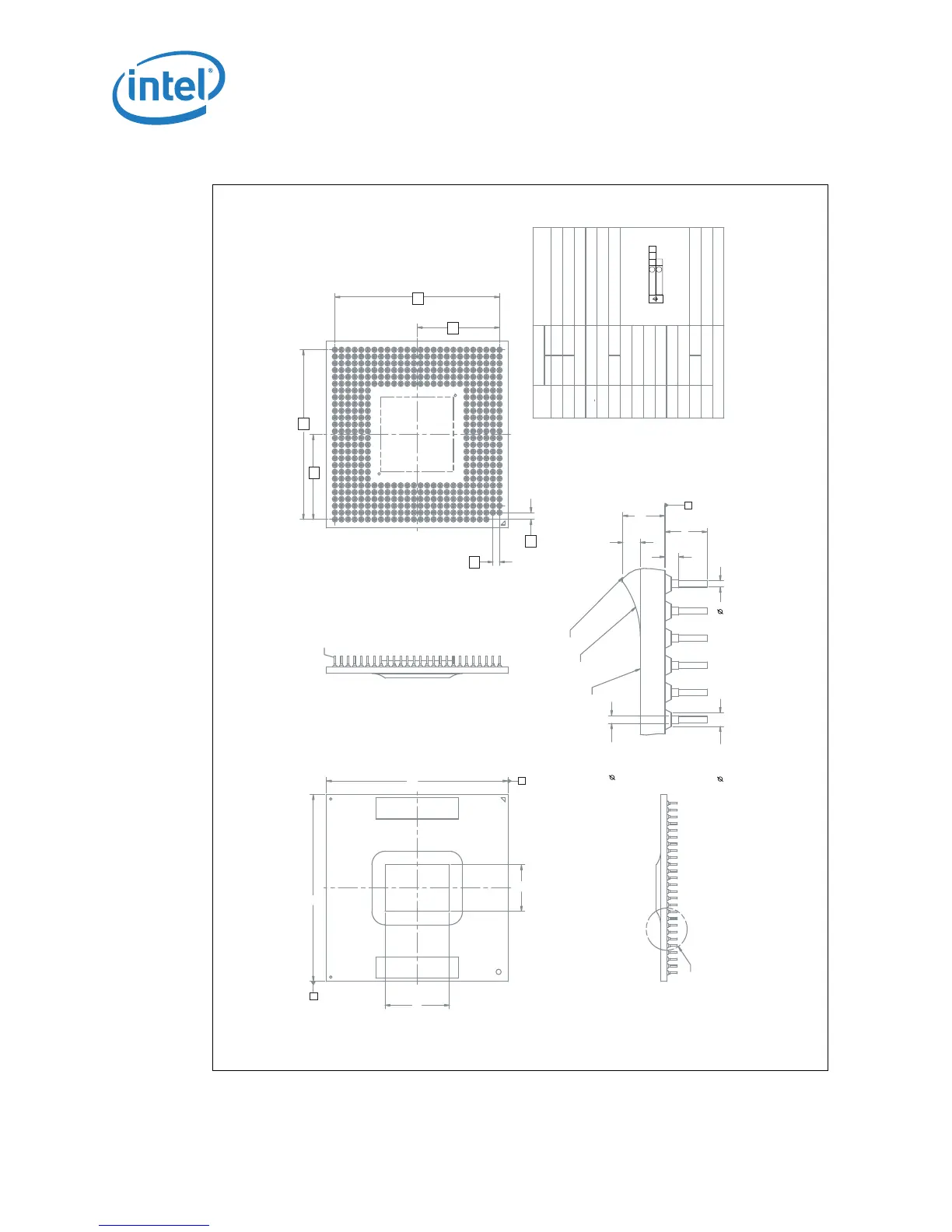

Figure 9. 6-MB and 3-MB on 6-MB Die Micro-FCPGA Package Drawing (Sheet 1 of 2)
B6887-01
D76563(1)
TOP VIEW
FRONT VIEW
SIDE VIEW
BOTTOM VIEW
DETAIL
A
SCALE 20
F
3
F
2
C
Package Substrate
Underfill
Die
0.37 MAX
0.65 MAX
0.65 MAX
2.03±0.08
P
A
478 PINS
B
A
B
2
B
1
C
2
C
1
H
2
J
1
J
2
G
2
H
1
G
1
B
1
34.95 34.95 35.05
1.862 2.102
0.255 0.355
35.05
SYMBOL
COMMENTS
MILLIMETERS
MIN MAX
B
2
12.4
C
2
8.7
C
1
0.88
F
2
31.75 BASIC
G
2
31.75 BASIC
G
1
15.875 BASIC
H
2
15.875 BASIC
H
1
6g
Keying Pins A1, A2
W
P
1.27 BASIC
J
2
1.27 BASIC
J
1
F
3
ø
0.356
C C
A
M
B
ø
0.254
M

Intel P8700 - Core 2 Duo Processor Specifications

General

Processor Number	P8700
Number of Cores	2
Threads	2
Clock Speed	2.53 GHz
Cache	3 MB L2 Cache
Bus Speed	1066 MHz
TDP	25 W
Lithography	45 nm
Socket	PGA478
Instruction Set	64-bit
Max Memory Size	8 GB
Max Memory Channels	2
Max Memory Bandwidth	17.1 GB/s
Thermal Monitoring Technologies	Yes
Execute Disable Bit	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Package Size	35mm x 35mm
Intel 64	Yes
Intel Trusted Execution Technology	No
AES New Instructions	No
Virtualization Technology	VT-x
Memory Types	DDR3
