Package Mechanical Specifications and Pin Information
56 Datasheet

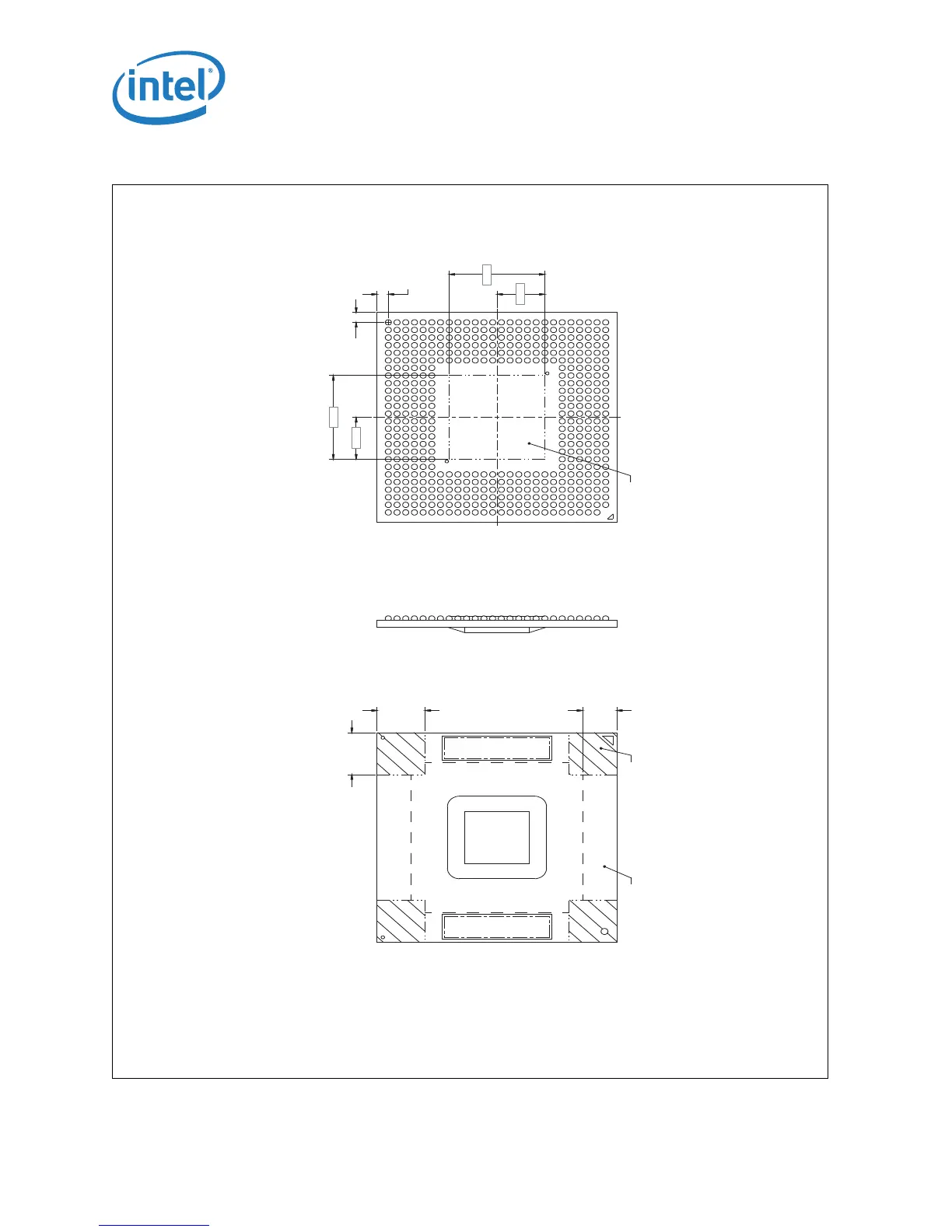

Figure 13. 3-MB Die Micro-FCBGA Processor Package Drawing (Sheet 2 of 2)
B6742-01
D93702(2)
TOP VIEW
SIDE VIEW
BOTTOM VIEW
CORNER KEEP OUT
ZONE 4X
EDGE KEEP OUT
ZONE 4X
4X 7.00
4X 5.00
4X 7.00
13.97
6.985
13.97
6.985
1.625
0.55 MAX ALLOWABLE
COMPONENT HEIGHT
1.625
