Functional Architecture Intel® Server Board S3420GP TPS
Revision 2.4
Intel order number E65697-010
16

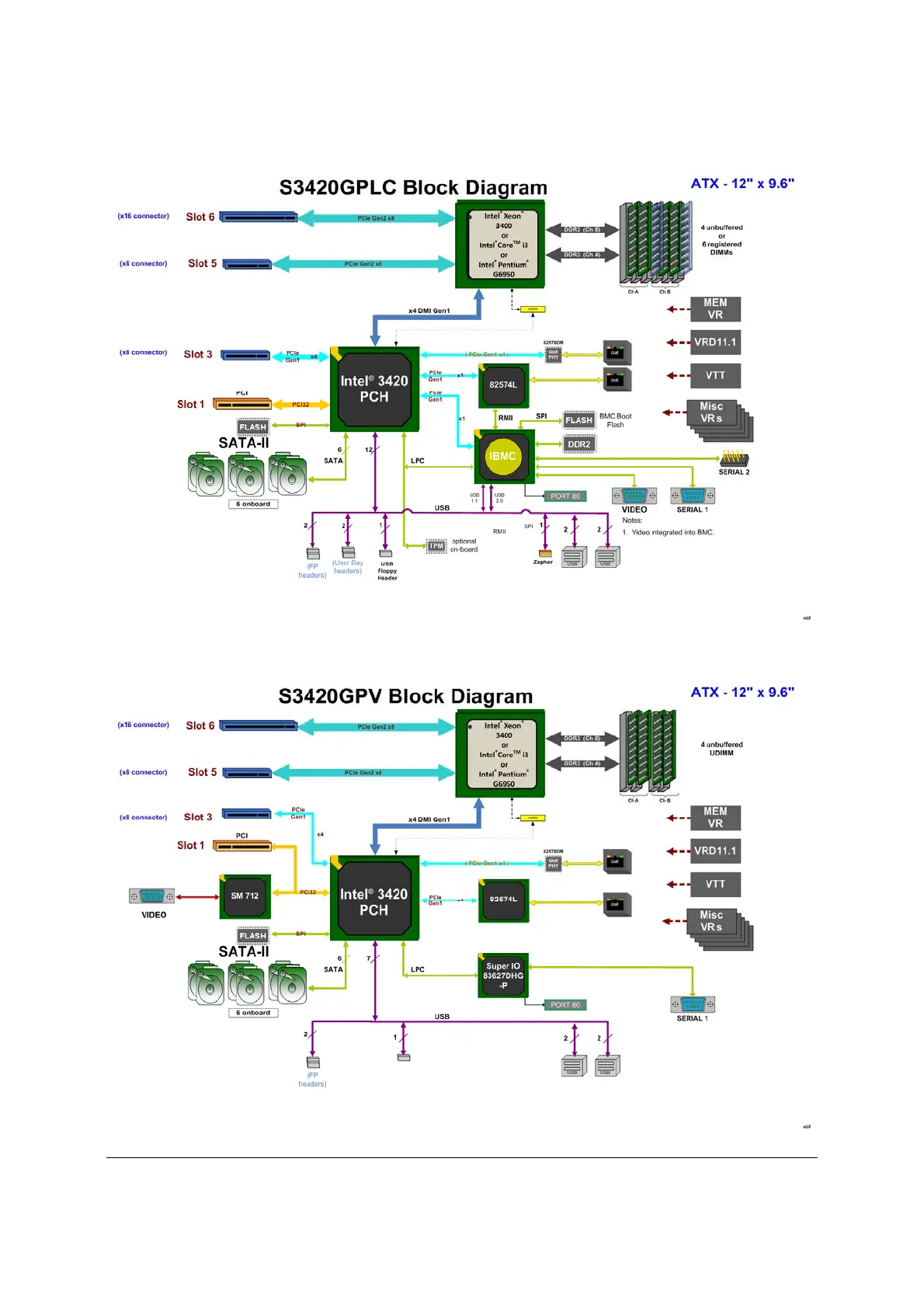

Figure 11. Intel
®
Server Board S3420GP Functional Block Diagram From S3420GPLC
