16 i3/i4 Satellite Antenna System – Install and User Manual
To Install the ACU
1. The ACU should be installed using the two fixing brackets supplied to
provide a top or bottom fix.
2. Using the self tapping screws supplied fix the mounting brackets to the

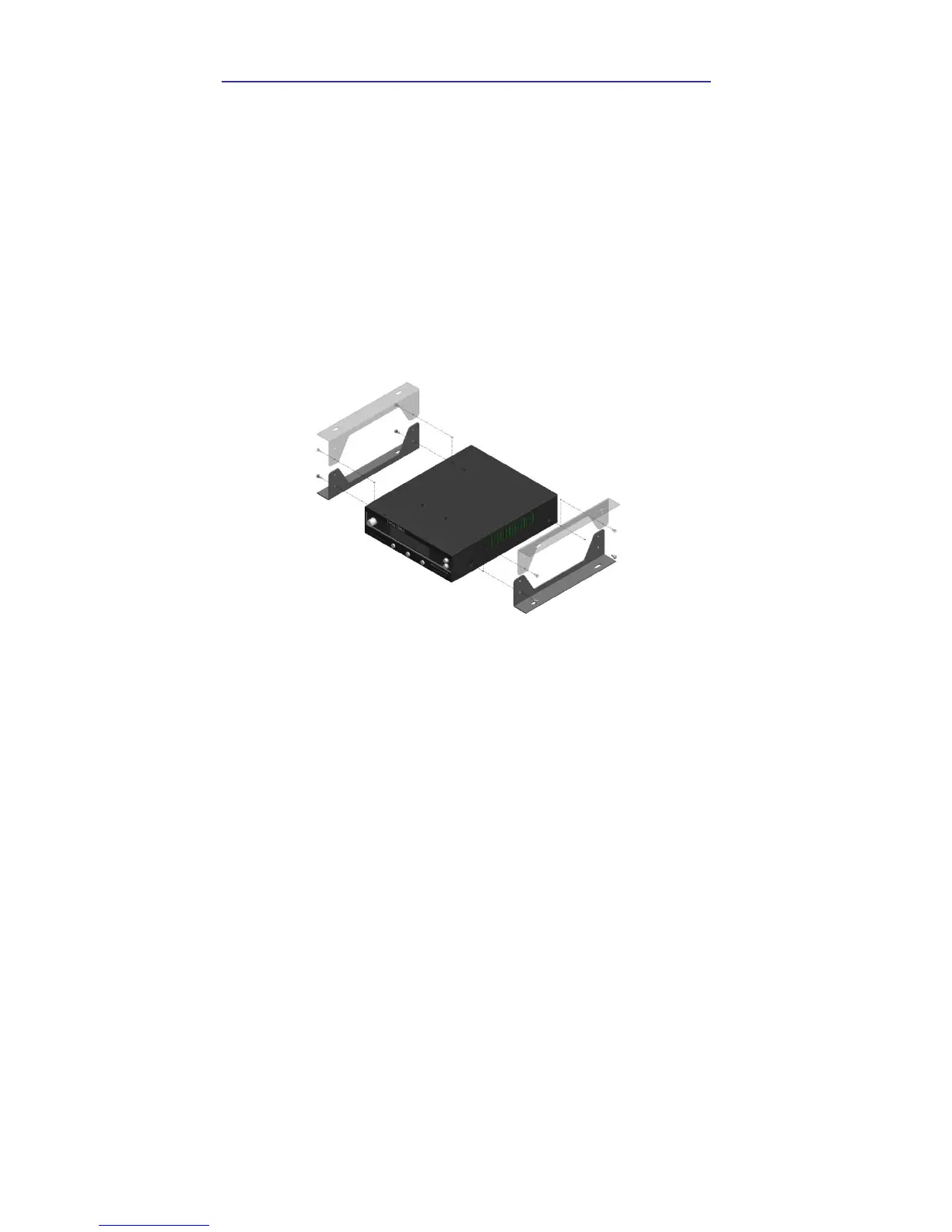

sides of the ACU.
3. Place the ACU in the position where it is going to be installed.
4. Connect the cables to the rear of the ACU.
5. Using a pencil to mark the 4 hole positions (2 each side) for securing the
mounting brackets and using a suitable drill bit to drill them.
