Installation 17
Connecting the System Cables
After installation and fixation of the antenna, connect the ACU to the antenna.

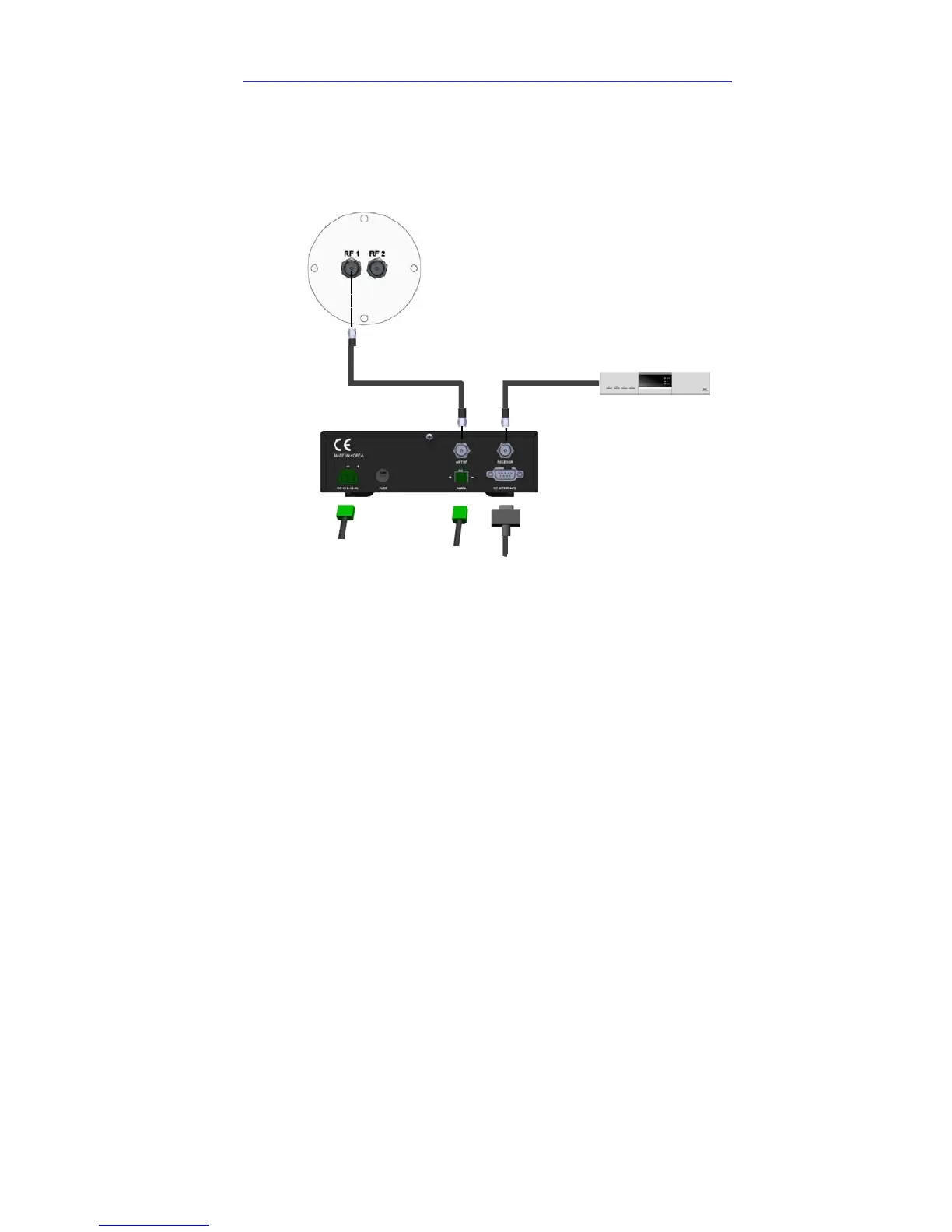

Referring to the drawing below, connect cables.
SINGLE IRD Connection
DC Power Cable
NMEA GPS
RF Cable
Antenna
PC( Not supplied)
ACU IRD Cable
IRD (Not Supplied)
Receiver
y Connect the RF Cable (15m) from the RF 1 connector on the
antenna to the ANT. RF1 connector on the rear of ACU.
y Connect the ACU-IRD Cable (3m) from the RECEIVER connector
on the rear of the ACU to RF on the IRD.
y Connect the power cable (10m) from DC power connector on the
rear of ACU to a power source of DC (10.8~15.6V).
y Press the POWER ON switch in front of the ACU to start the
operation of the Antenna system automatically.
