4 i3/i4 Satellite Antenna System – Install and User Manual
Installation
The components of the Intellian i3/i4 have been designed to be modular
so that it may be suitable for simple installation on all types of vessels.
System Components

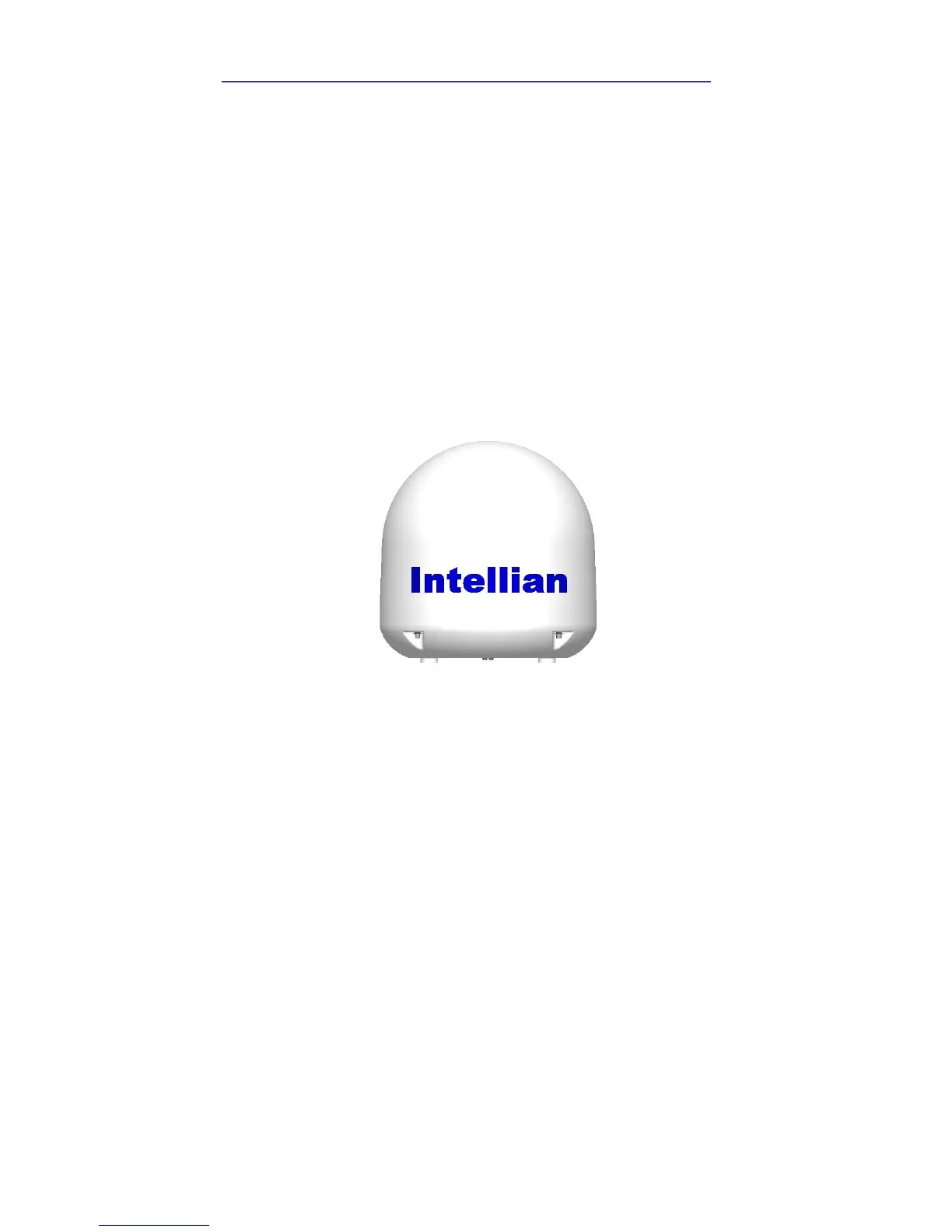

Antenna Unit
The antenna of Intellian i3/i4 is composed with the following components for
the optimum search and reception of the satellite signal.
y Mechanical Part – manipulates the antenna to receive the
optimal satellite signal regardless of the movement of the
vessel.
y Control part – controls mechanical operation of the antenna.
y RF part – transmits the optimum satellite signal to the receiver.
y Radome – protects the antenna from the severe marine
environment.
