Intellian i3 Install And User Manual

Installation 19
Multiple IRDs Connection

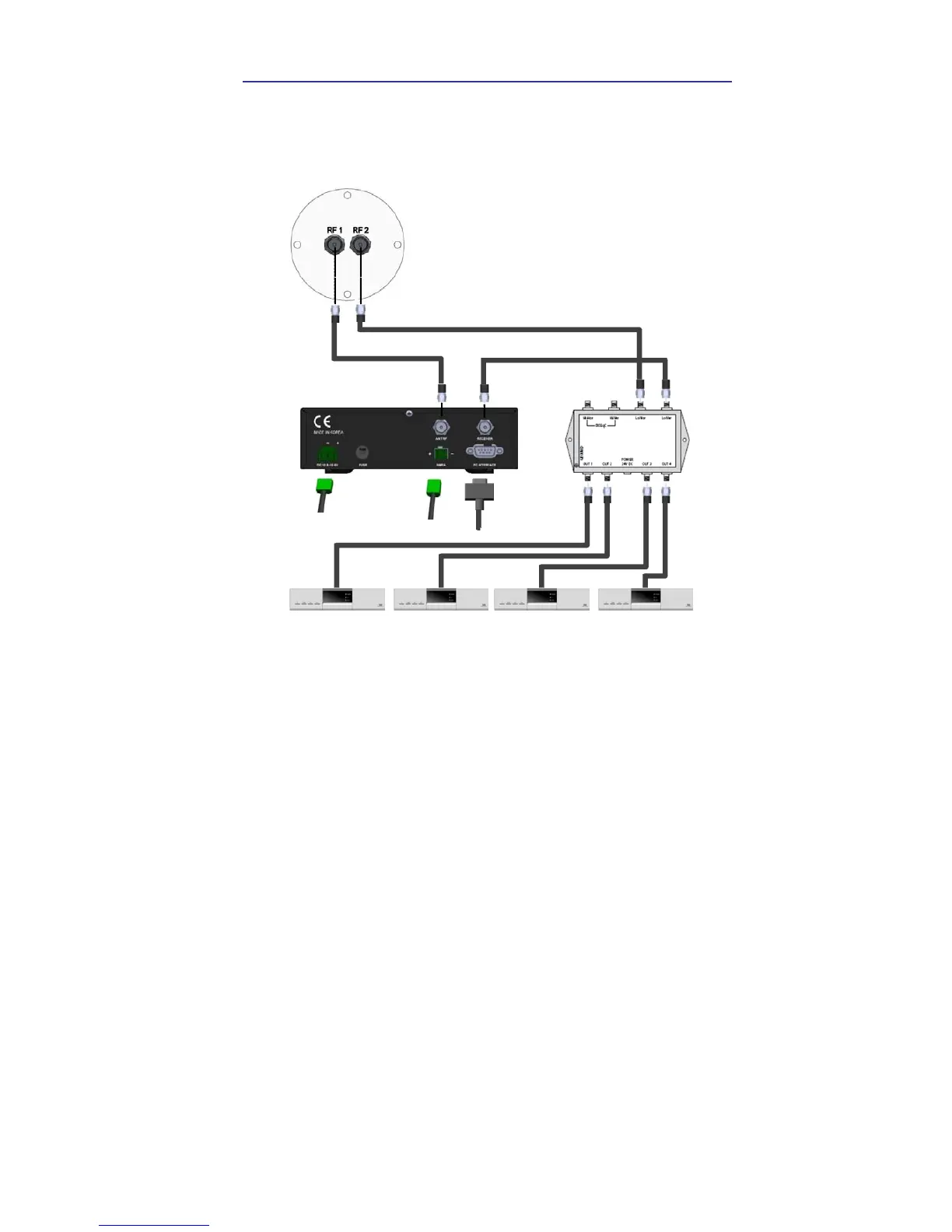

In order to connect multiple IRDs to the antenna, you will need to purchase a
suitable universal LNB multiswitch. The multiswitch has to be installed
between the antenna unit and the IRDs as shown in the following diagram.
DC Power Cable
NMEA GPS
RF Cable
Antenna
PC Cable
ACU IRD Cable
IRD 1
Receiver
IRD 2 IRD 3 IRD 4
Multi switch
(Not supplied)
※ IRD 1~4 : Not supplied
