The panels are numbered (1-6) with the temporary stickers. Stack the curved panels with the panel number
(1 - 6) up against a wall in the designated room or alternatively the door can be kept safely on the floor.
Then, set up the panels into the booth starting with the door (panel 1) followed by assembling the remaining
panels in order (refer section 3.2 detailed information).
2.3 Unpacking chair from the crate
Use a battery powered drill with Phillips to remove screws from top of the crate then all four sides.
Unwrap the chair by carefully cutting tape and removing the plastic sheeting on it. Note that ladder and ramp
which are required for the installation procedure are attached with inside chair crate.

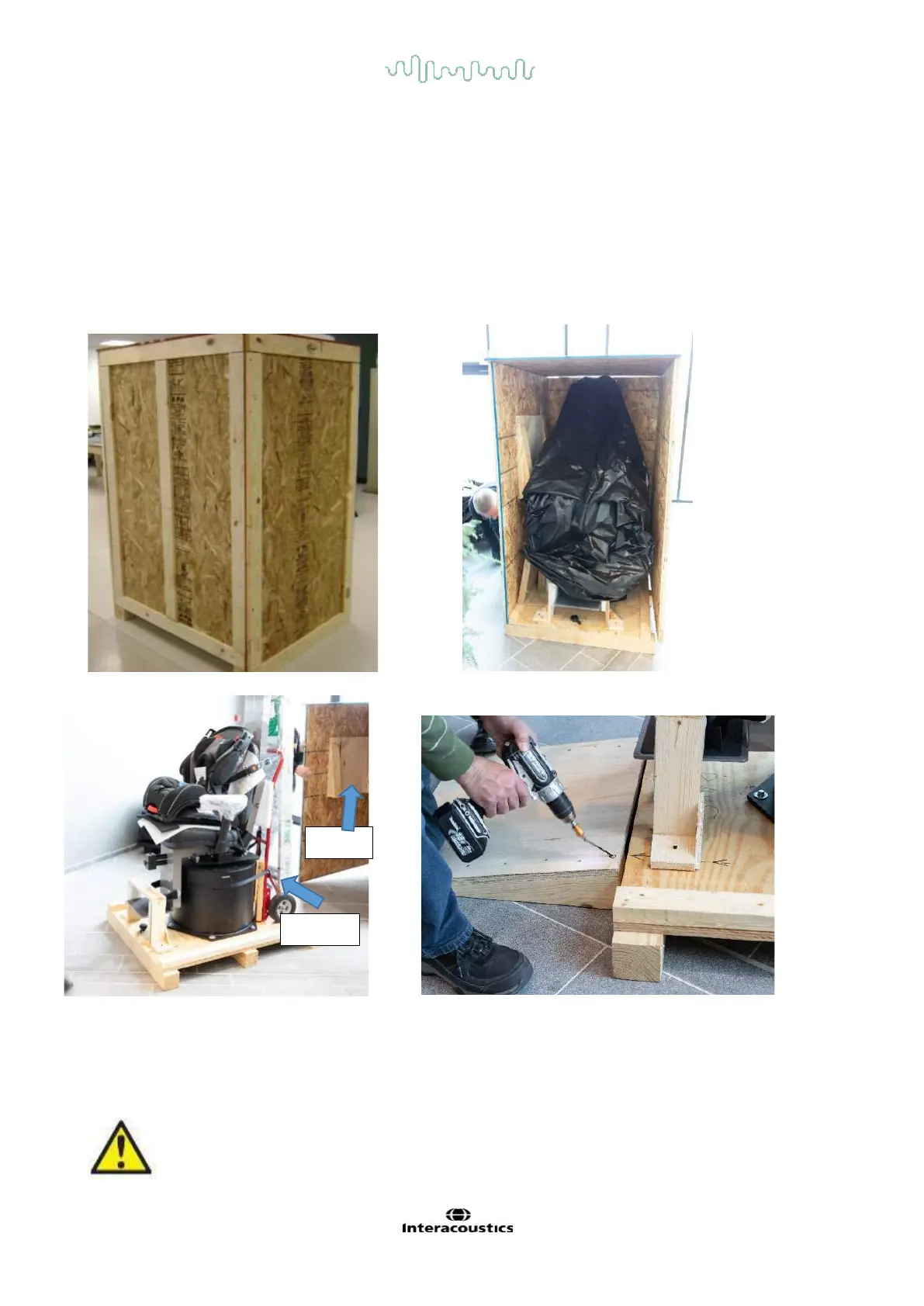

Chair in crate Chair wrapped on pallet
Chair pallet with shipping cover removed Ramp secured to base
Chair is strapped to a 2-wheel steel hand truck inside crate. A wooden ramp, that is part of the equipment on
the pallet, should be fastened with screws to the chair pallet to form a ramp. Tilt the chair and roll it off the
pallet and down the ramp. See Section 4.2 for details.
Caution:
Two people are needed to handle the chair as the chair assembly is heavy. First, the
chair has to be tilted back. While the chair weight is counterbalanced by the person handling the
hand truck, the second person can help to guide, move and lower the chair in position.
