D-0120794-C – 2019/11
Orion Rotary Chair Installation Instructions Page 9

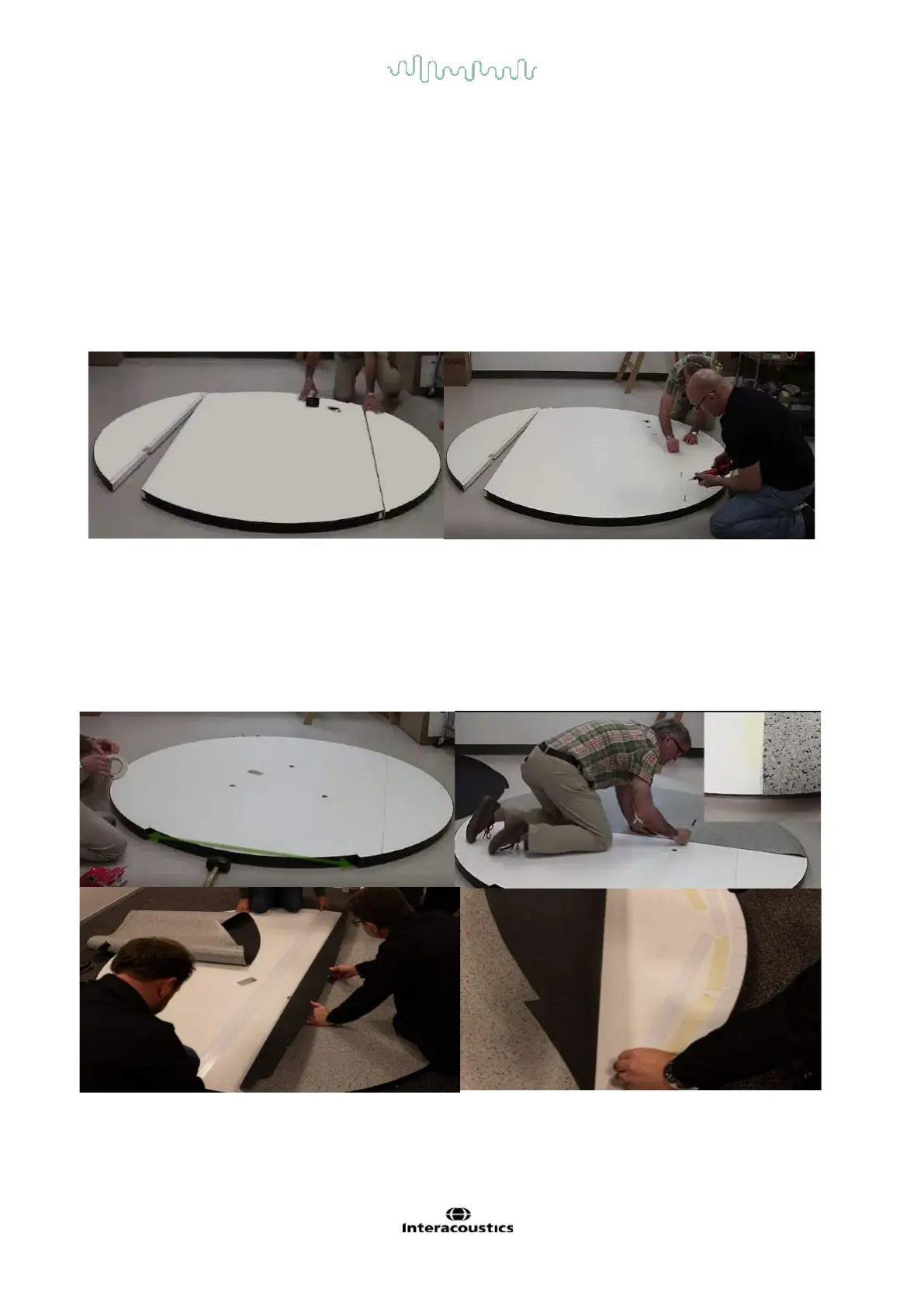

3 Booth Installation
Refer to section 1.5 for the booth installation prerequisites before starting the booth installation. Booth
installation is done in different steps which are described below.
3.1 Floor Assembly:
The booth floor is comprised of three sections (one base and two wings). Assemble the booth floor with the
bottom side up. The wings of the floor are attached using the rubber mallet and secured using manufacturer
supplied screws. One wing has a slot that will align with the hole in the main floor base to complete the
channel for routing cables through floor into the rotational chair.
Flip the assembled base over, placing the weight on the main section to prevent damage to the wings. Clean
off the booth floor with a damp rag. Set ½ of the vinyl flooring in position and draw a line indicating the center
of the floor. Apply a few strips of double face adhesive tape on the outer perimeter of the booth floor portion
where the door panel will be situated. Place a strip of carpet tape on either side the line that was drawn
leaving a small gap between the strips. Lay down the vinyl flooring over the carpet tape. With the vinyl
flooring in place, remove the film from the carpet tape to secure the flooring. Press down on the flooring by
walking on the flooring over the tape. Repeat the same steps to place another vinyl flooring to cover another
half of booth flooring.
