It is very important to clean all the dust and debris from
the hole to prevent the anchor from slipping. Place the
drop-in anchor into the hole – split end in first. Once the
anchor is seated all the way, insert the setting tool into
the anchor and drive with a hammer until the thicker
portion of the tool makes contact with the anchor.
Repeat the step for remaining two holes.
4.2 Moving Chair inside the Booth

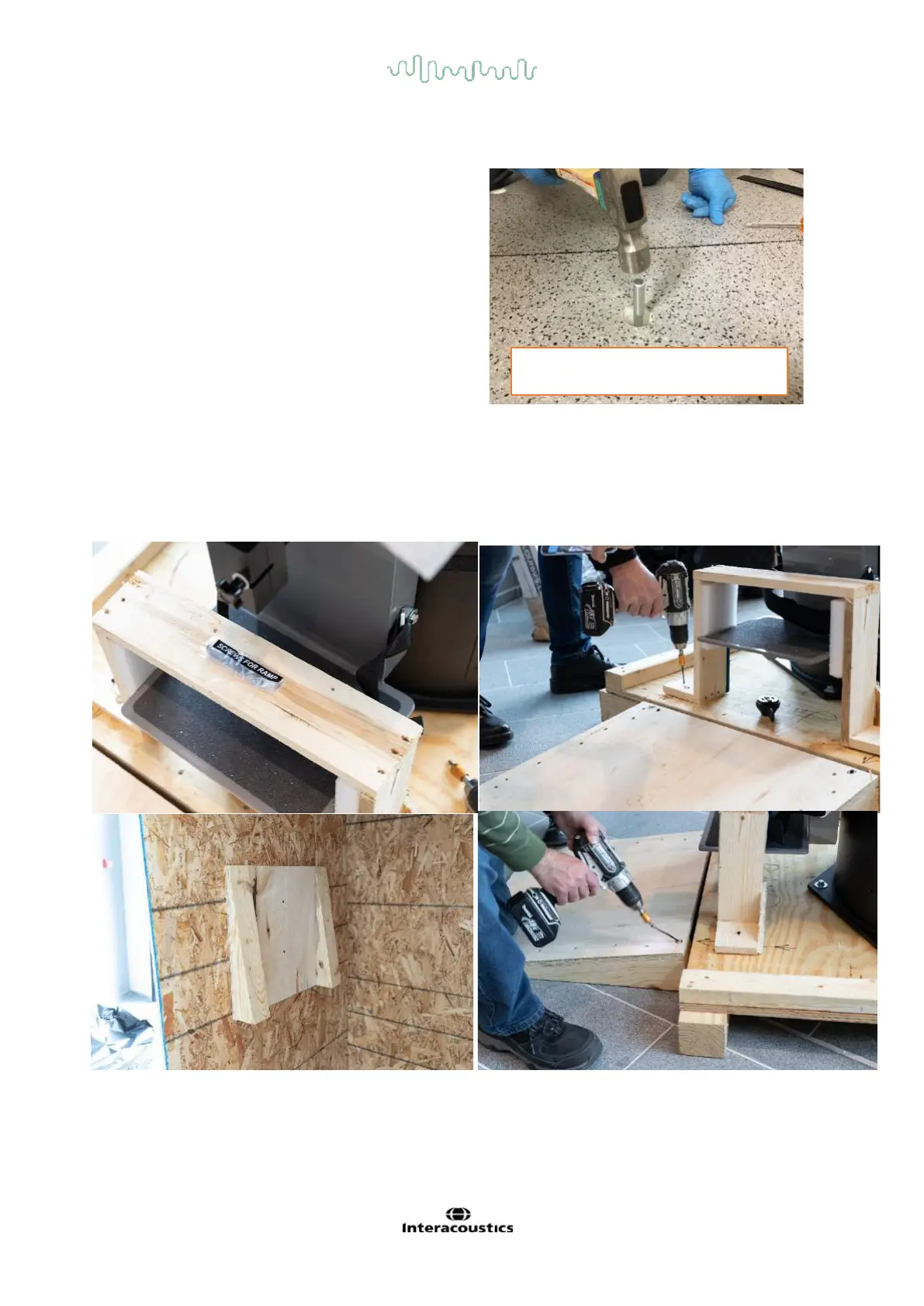

Remove the wooden brace over the footrest of the chair. Use the screws on top of the brace to attach the
ramp to the front of the pallet (steps are shown in the above pictures).
Set the removable anchor in the
drilled hole
