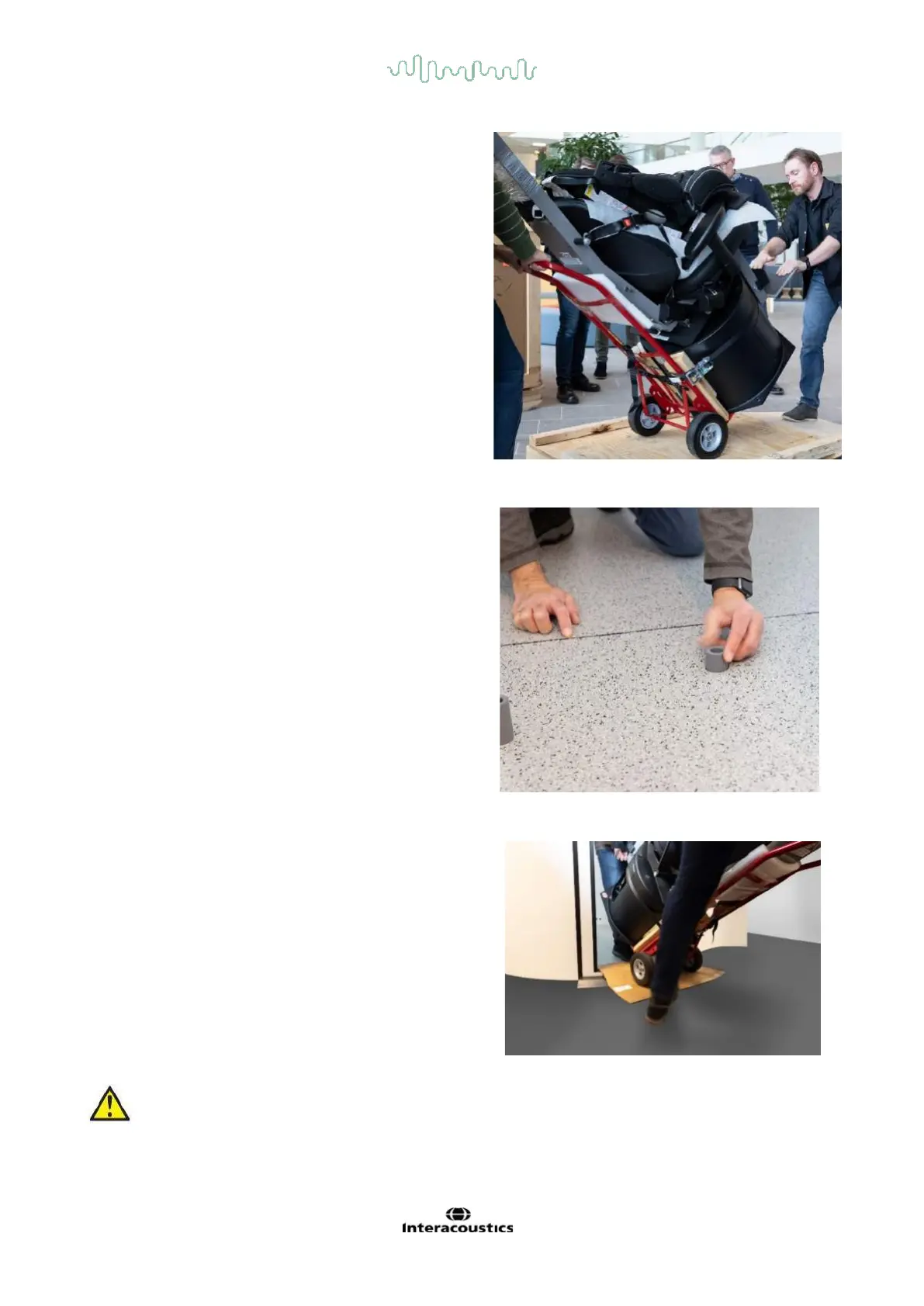

Remove the bolts and washers securing the chair base
to the palette, then using the hand truck, tilt back the
chair and roll the chair down on the ramp and off the
palette.
Insert the grey Booth Mount Sleeves in each hole before
bringing the chair in. These sleeves support the weight of
the chair on the concrete floor.
NOTICE It is also important to to cover the door threshold
with a piece of cardboard to prevent scratches while the
chair is rolled in.
Slide the chair close to the booth. With one person in the
booth and one person outside the booth, lift on the chair
over the door threshold using the footstep and the back of
the chair frame. Roll the chair as close to the final location
as possible to reduce amount of sliding needed to align
the holes.
Remember the booth placement and drilling for holes are already done inside the booth. Hence, the
chair has to be moved slowly inside the booth to avoid inadvertent shifting of Booth which may lead
to misalignment of the holes.
