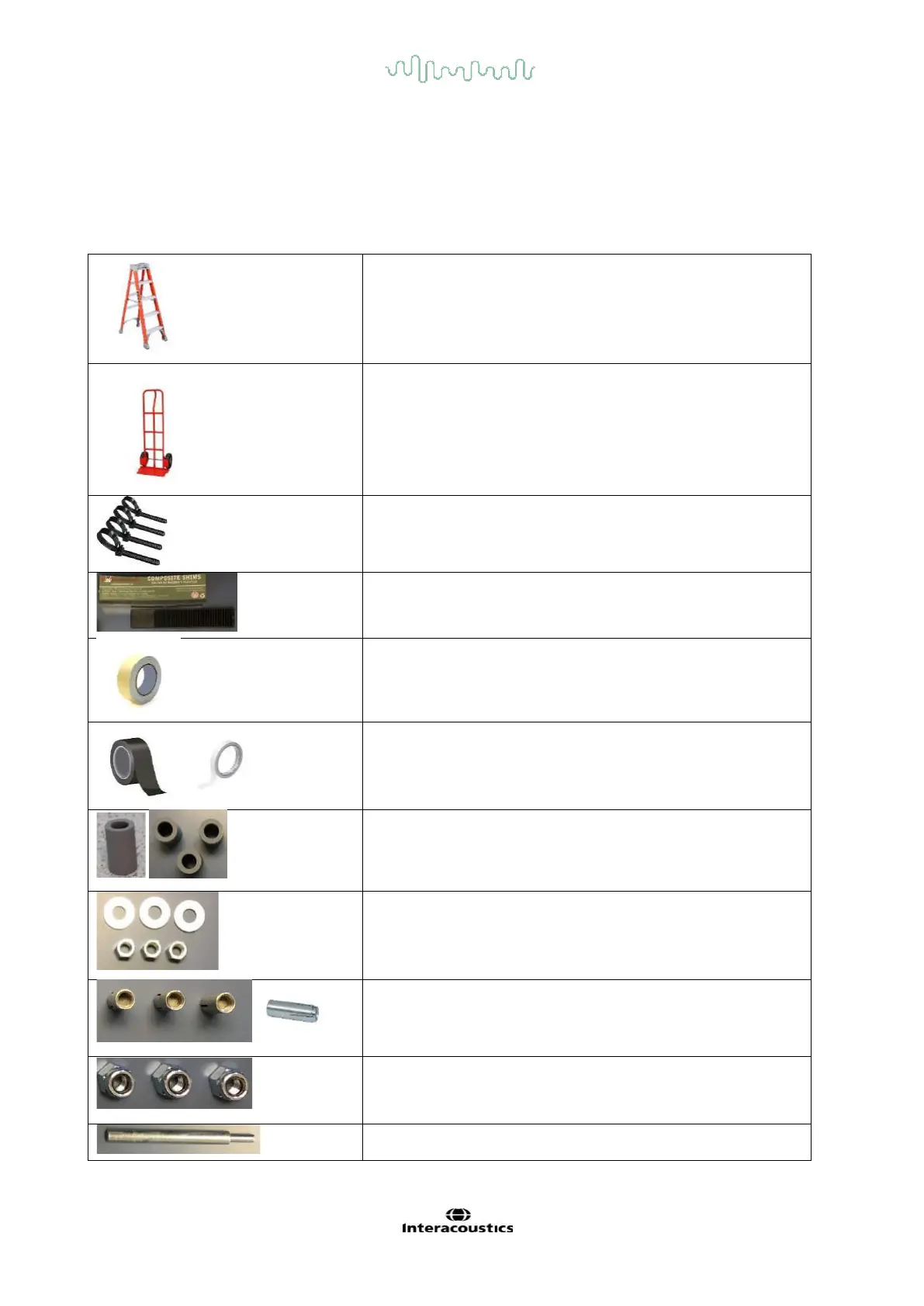

1.4 Required tools
The following tools are required to assemble the Orion Chair which will be provided by the dealer.
NO
TICE It is important to note that two people are required for this installation process. The installation
process approximately will take 5 to 6 hours to complete.
Step ladder, six foot minimum (supplied with the product)
2 wheel steel hand truck (supplied with product)
Zip ties (supplied with the product)
Plastic shims (supplied with the product)
Double sided tape (supplied with the product)
3’’/7.62 cm black tape and ½”/1.27 cm white tape (supplied
with the product)
3 booth mount sleeves (supplied with the product)
3/8”/0.95 cm -16 Zinc coated nuts and washers (supplied with
the product)
3/8” /0.95 cm -16 threaded female concrete drop-in anchors
(supplied with the product)
3/8” /0.95 cm -16 Nylock nuts
Installation tool for 3/8” /0.95 cm -16 female threaded anchors
(supplied with the product)
