D-0120794-C – 2019/11
Orion Rotary Chair Installation Instructions Page 13

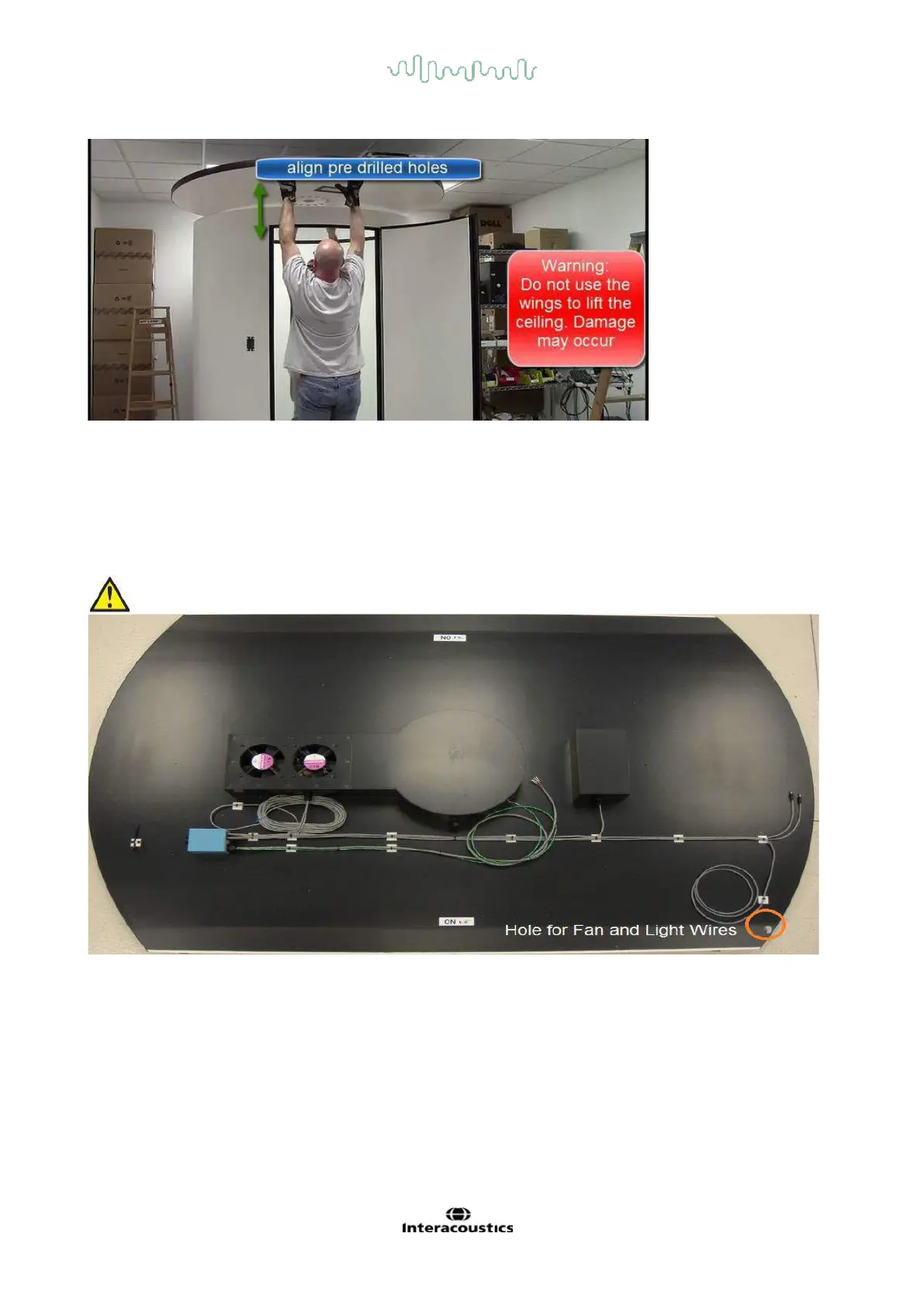

Walking the Ceiling into the Booth
Line up the conduit holes in the top and panel #1 by lifting the ceiling and rotating (figure ). Feed the wires for
the fan and light through the hole down into panel #1 to the switch box. Push the small length conduit into the
ceiling. Connect the two phone plugs/jacks, one for the intercom magnetic switch above the door and
another for booth door safety switch.
Caution: Be careful not to crush the intercom connection wire and booth door safety switch wire
when setting the ceiling in place.
Conduit hole in the booth ceiling
