Orion Rotary Chair Installation Instructions Page 30
Caution: Make sure the USB hub is tucked away from the main boards before connecting the AC
cable.

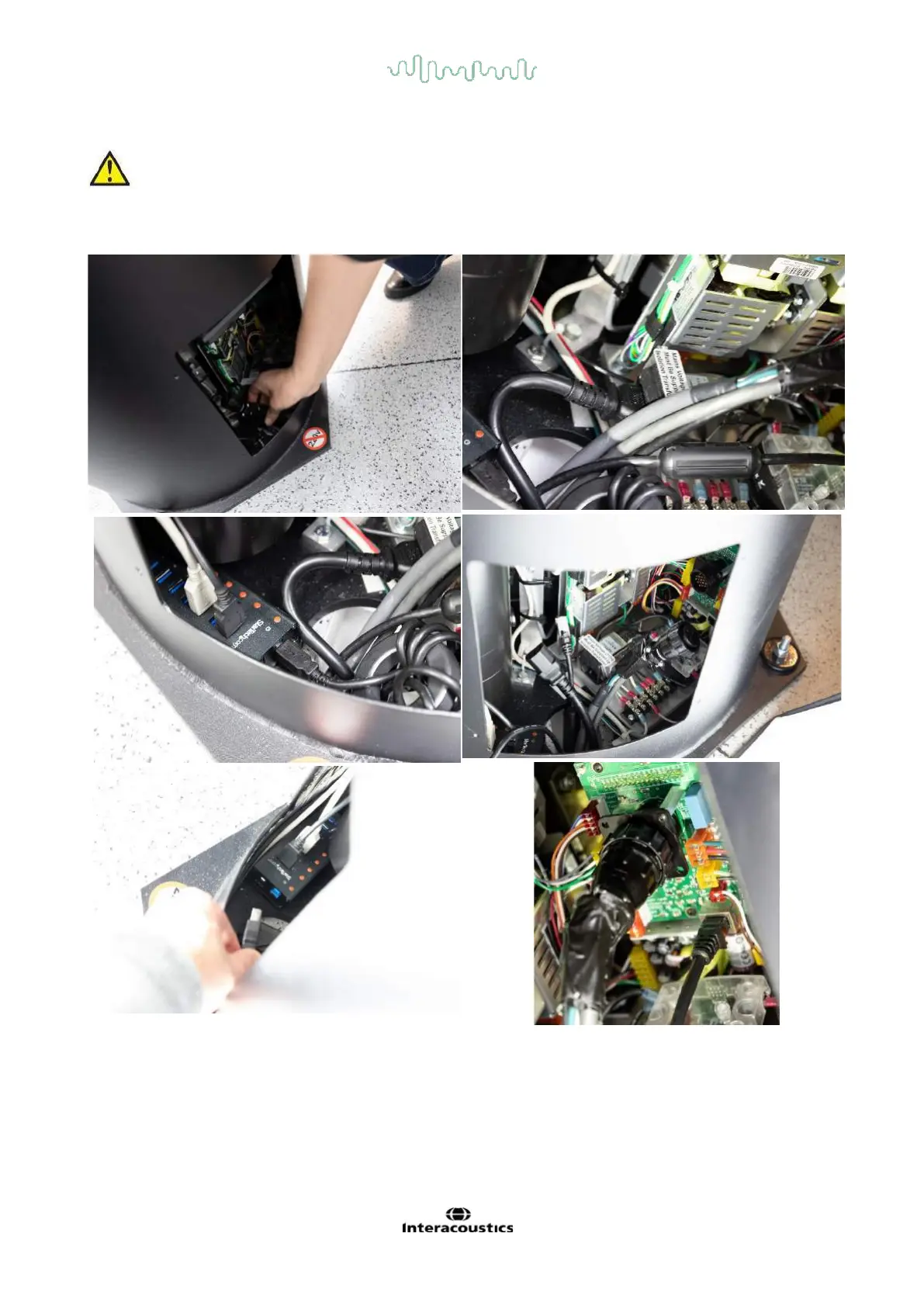

Plug in the E-Stop (RJ-45 connector) and the round CPC connector to the Lower I/O PCB. Connect the AC
cable last.
