Preparing patient

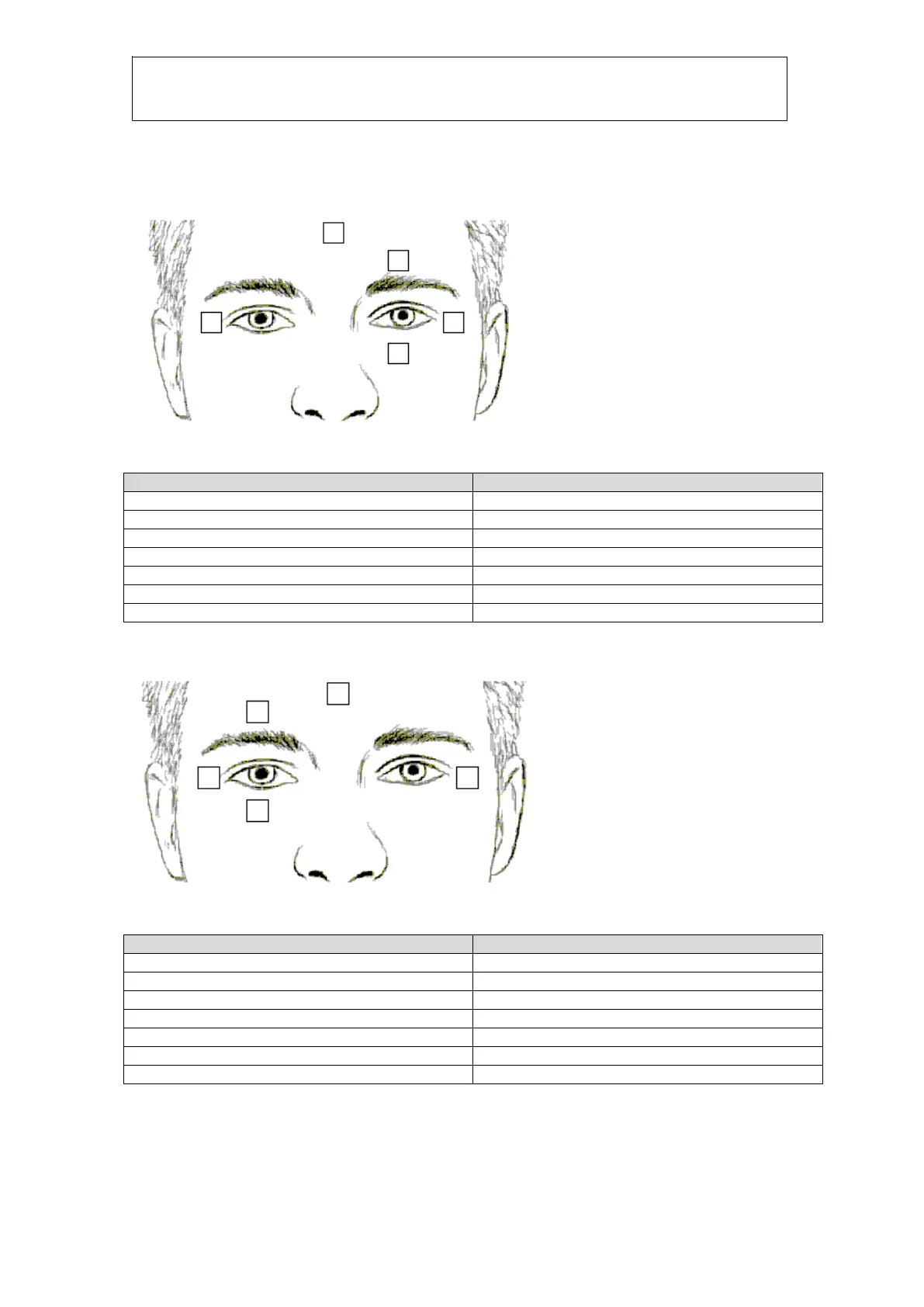

First you need to apply the electrodes to the patient in one of the following patterns:
2-channel left vertical
Figure 1.7 Left monocular setup
Electrode
Place
LT
Left temple
LN
Right temple
D
Below left eye
U
Above left eye
C
Forehead
RN
Shorted / Not used
RT
Shorted / Not used
2-channel right vertical
Figure 1.8: Right monocular setup
Electrode
Place
LT
Left temple
LN
Right temple
D
Below right eye
U
Above right eye
C
Forehead
RN
Shorted / Not used
RT
Shorted / Not used
