29Intermec EasyCoder 501 – Service Manual Ed. 7
Chapter 5 Media Supply
An adapter (standard accessory) can be fi tted onto the bobbins
in order to accept media rolls with 76 mm (3 inches) cores. The
adapter is locked by means of a screw. Be careful not to let the
screw hit the leaf springs or the cams of the bobbins.
An optional media roll retainer can be fi tted on the bobbins (but not
on the adapter) to hold large media rolls. It is not used in connec-
tion with EasyCoder 501 LinerLess.
5.1 Internal Supply,
cont.

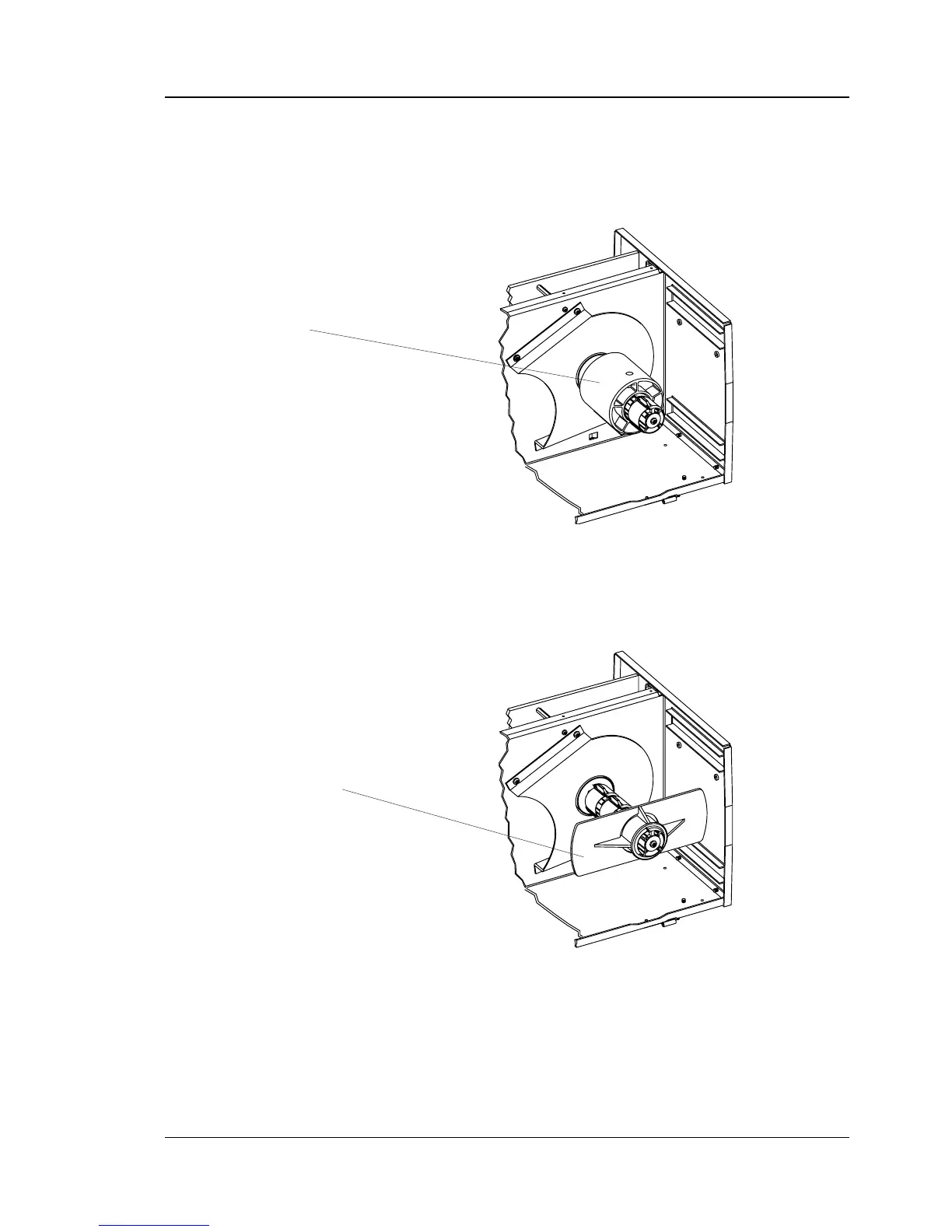

76 mm (3 inch) Adapter
Media Roll Retainer
