Chapter 8 Print Unit
8.7 Printhead, cont.
EasyCoder 501 LinerLess:
8 dots/mm (203.2 dpi) printhead in right-hand position

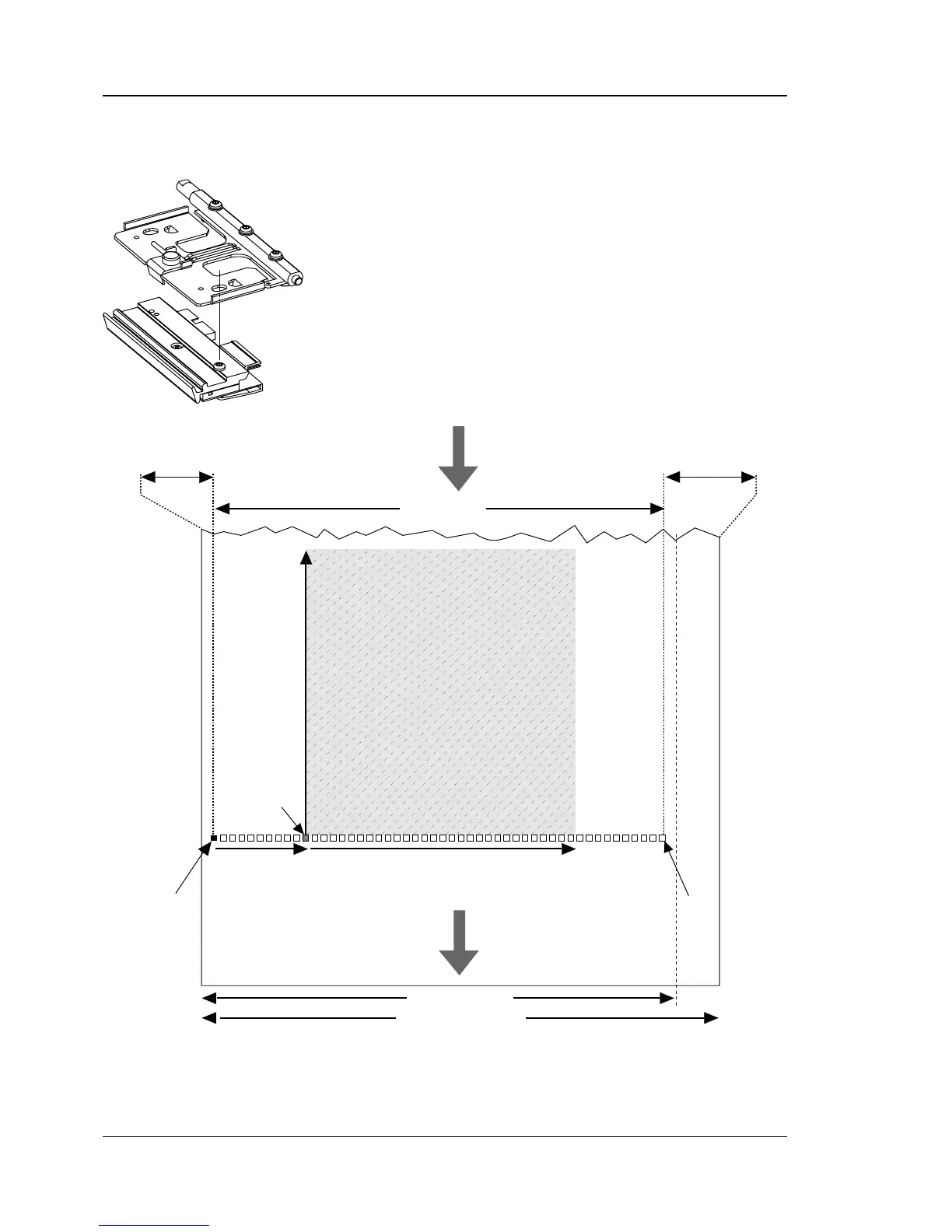

The 8 dots/mm printhead can be fi tted in two positions. When the
printhead is fi tted in the outer, right-hand position (see illustration),
dot No. 0 is situated 3 mm (0.12 inches) inside the inner edge of
the media. Since the maximum print width is 104 mm (4.1 inches)
and the maximum web width is 114 mm (4.49 inches), this leaves
a margin of at least 7 mm (0.28 inches) along the outer edge of the
web. If an 110 mm (4.33 inches) wide web is used, the printhead
will be centered with a 3 mm (0.12 inches) margin on each side.
Dot 0
X-start Width
Origin
Length
Dot 831
PRINT
WINDOW
PRINT
WINDOW
FEED
DIRECTION
D
ot-line
n printhead
From
media supply
7 mm (0.28 in)
110 mm (4.33 in)
3 mm (0.12 in)
max. 114 mm (4.49 in)
104 mm (4.1 in)
