Chapter 8 Print Unit

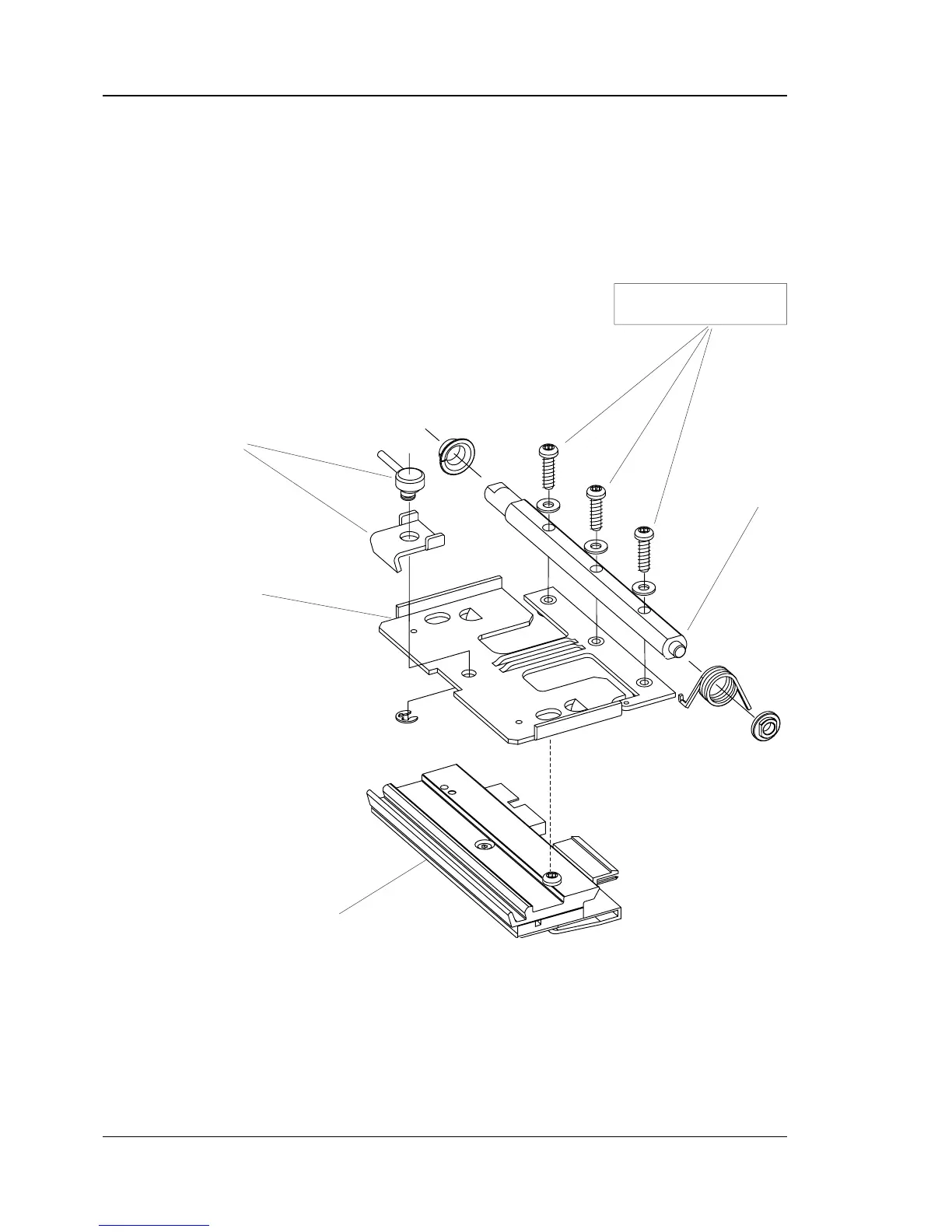

The printhead bracket is fi tted to a spring-loaded shaft by means of
three screws which allow the angle between the gable and the front
edge the printhead to be factory-adjusted. The bracket is fi tted with
a locking mechanism for the printhead assy.
8.8 Headlift Mecha-
nism, cont.
Thermal Printhead
Bracket
Locking Mechanism
Shaft
Do not loosen these screws!
(Factory adjusted)
