Chapter 10 Ribbon Save Device
Description, cont.

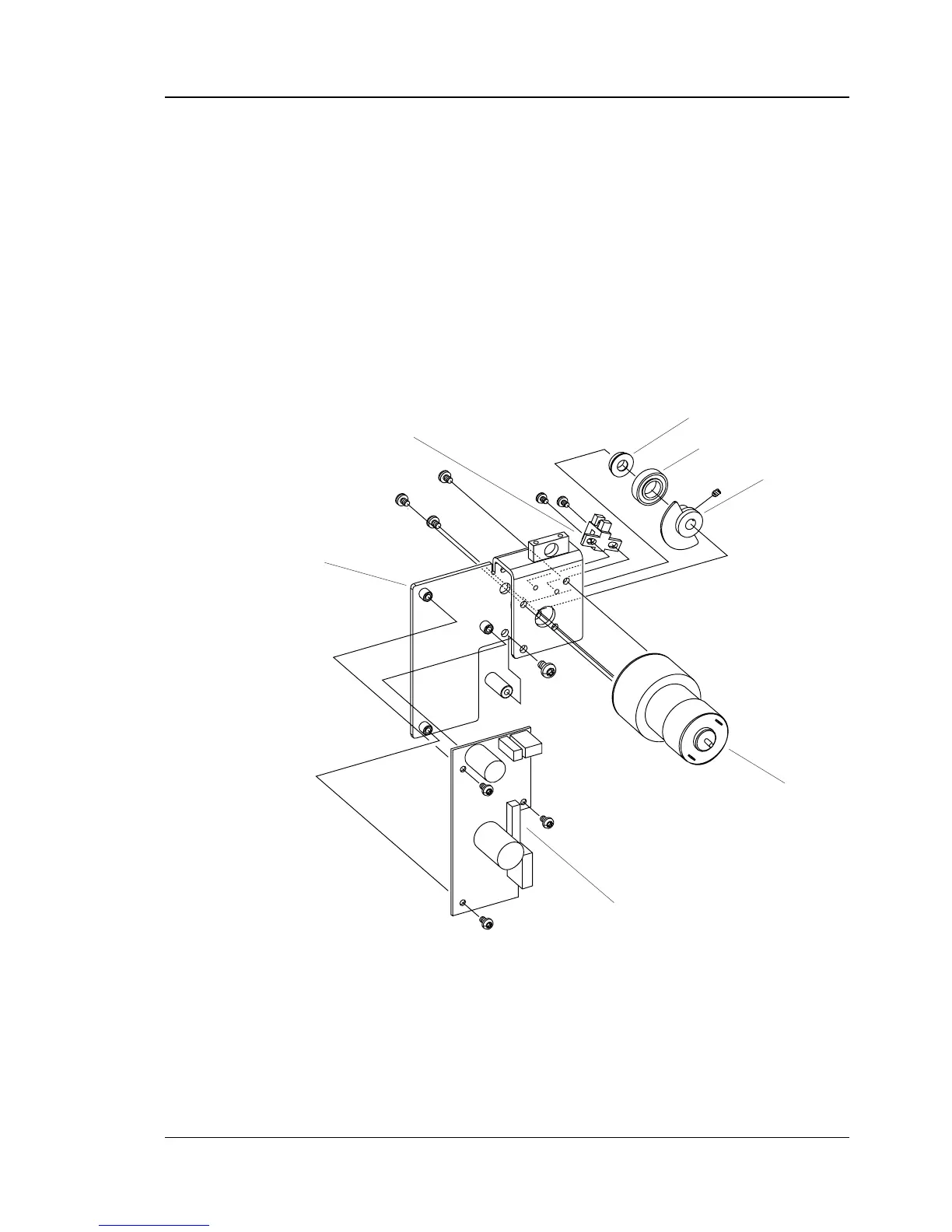

The headlift mechanism consists of a double-folded bracket on
which a DC motor and a connection board is fi tted. The motor is
connected to P-3 on the connection board.
On the shaft of the motor, a cam is fi tted. A photoelectric sensor
connected to P-4 on the connection board detects the position of
the cam (printhead lifted or lowered). The outer end of the motor’s
shaft is supported by a ball bearing inserted in the bracket.
The cam is provided with an eccentrically fi tted ball bearing that
engages the printhead lift lever (see the previous page).
10.7 Headlift Mecha-
nism, cont.
Connection Board
Motor
Sensor
Bracket
Ball Bearing
Eccentric Ball Bearing
Cam
