Intermec EasyCoder PC4 User Manual

 

Tear-Off Operation
1 Open the printer's top cover by pressing the release buttons on both
sides and folding the cover upwards/rearwards.
2 Pull up the spindle and remove possible remaining media or empty
label roll core.
3 Place the spindle into the core of a fresh media roll. Rotate the spindle
according to the inner diameter of the media roll core (see markings
on the spindle).
4 Wind the green edge guide wheel towards the front of the printer so
you can fit the media roll between the guides.

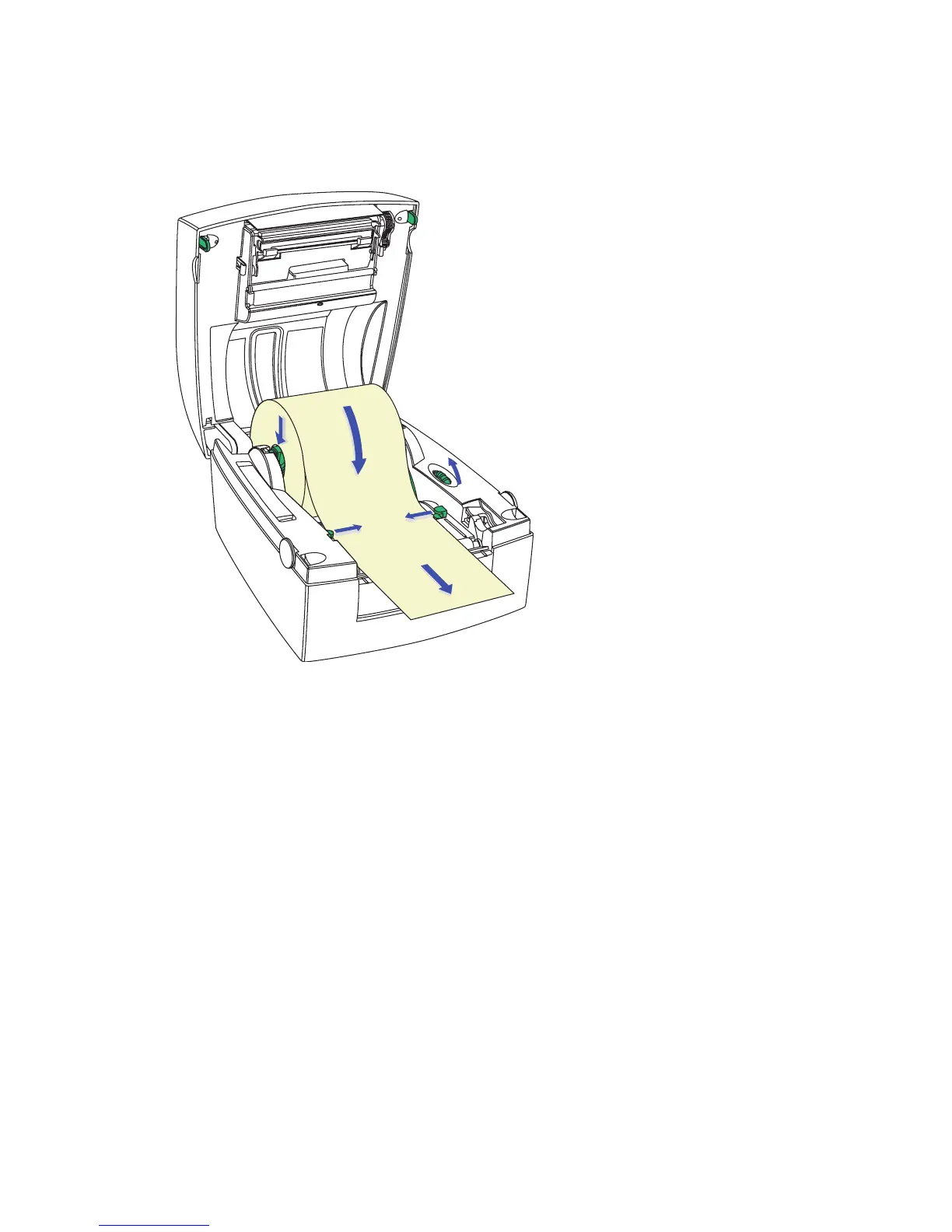

5 Place the media roll and spindle in the media compartment and snap
the spindle into the slots on either side.
6 Wind the green edge guide wheel towards the rear of the printer so
the rear edge guides just touch the roll without actually breaking its
rotation.

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
