Intermec EasyCoder PC4 User Manual

 


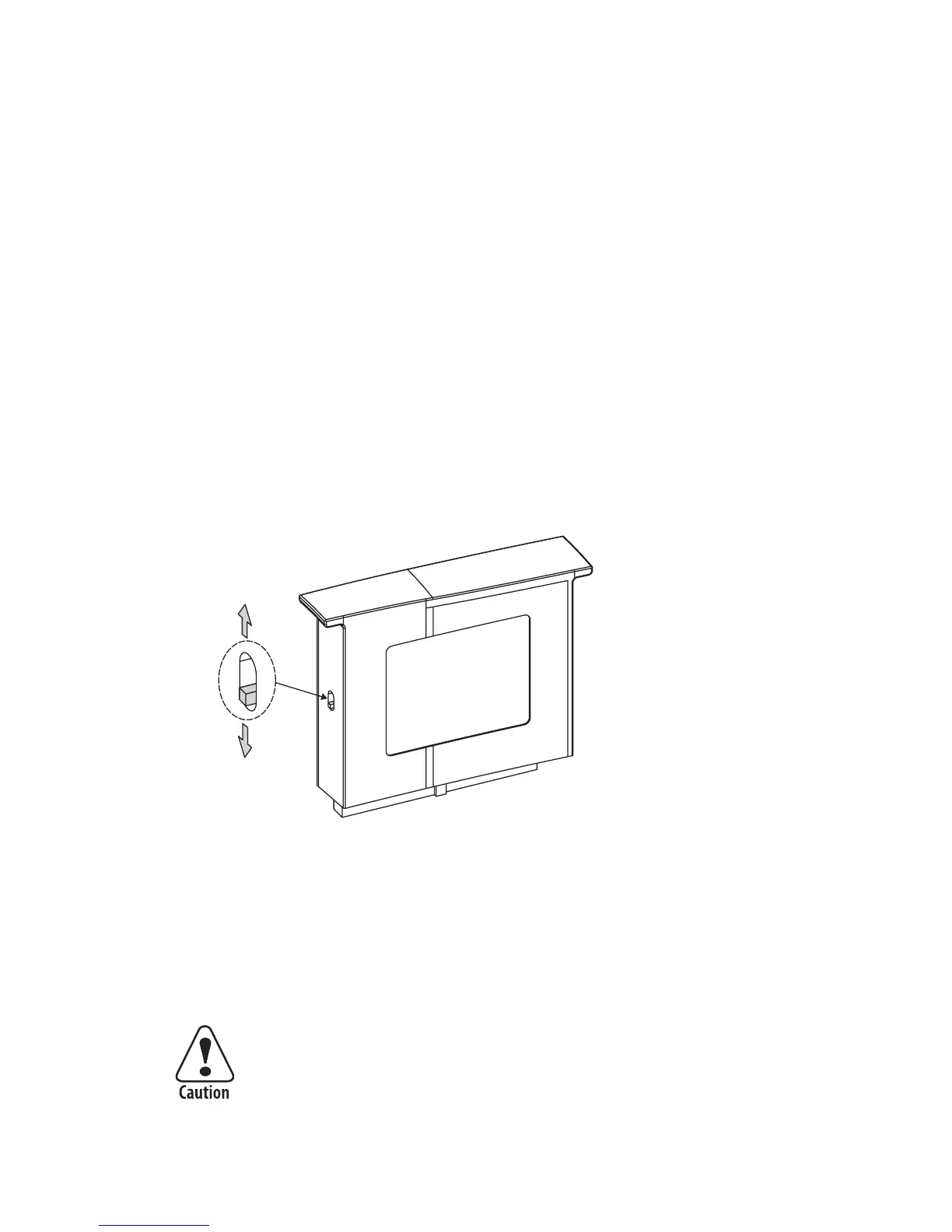

Normal position
Firmware down-
load position
Instructions
Using a PC
1 Install the Intermec EasyCoder PC4 Config Tool in your PC.
2 Run the PC4Conf.exe program.
3 Set up the parameters for the firmware download. Use the on-line
help for instructions.
4 Start the Firmware download wizard and follow the instructions on
the screen.
Using a Memory Cartridge
1 Switch off the printer.
2 Move the switch on the side of the cartridge to the upper position.
3 Insert the cartridge.
4 Switch on the printer. e indicator lamp will start blinking during
the upgrading. Wait until the blinking stops, which takes about 40
seconds.
5 Switch off the printer and remove the memory cartridge. Put back the
cover over the memory cartridge slot.
If the cartridge is removed at an angle, the connector pins
may be bent.

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
