Intermec EasyCoder PC4 User Manual

 

External Supply
Regardless of model and type of operation, direct thermal media or
receiving face material (in the form of tags or labels) can be provided
from an external supply, for example a stack of fan-folded tags.
Follow the loading instructions for the type of operation in question, but
ignore all paragraphs concerning the internal spindle. Instead, insert the

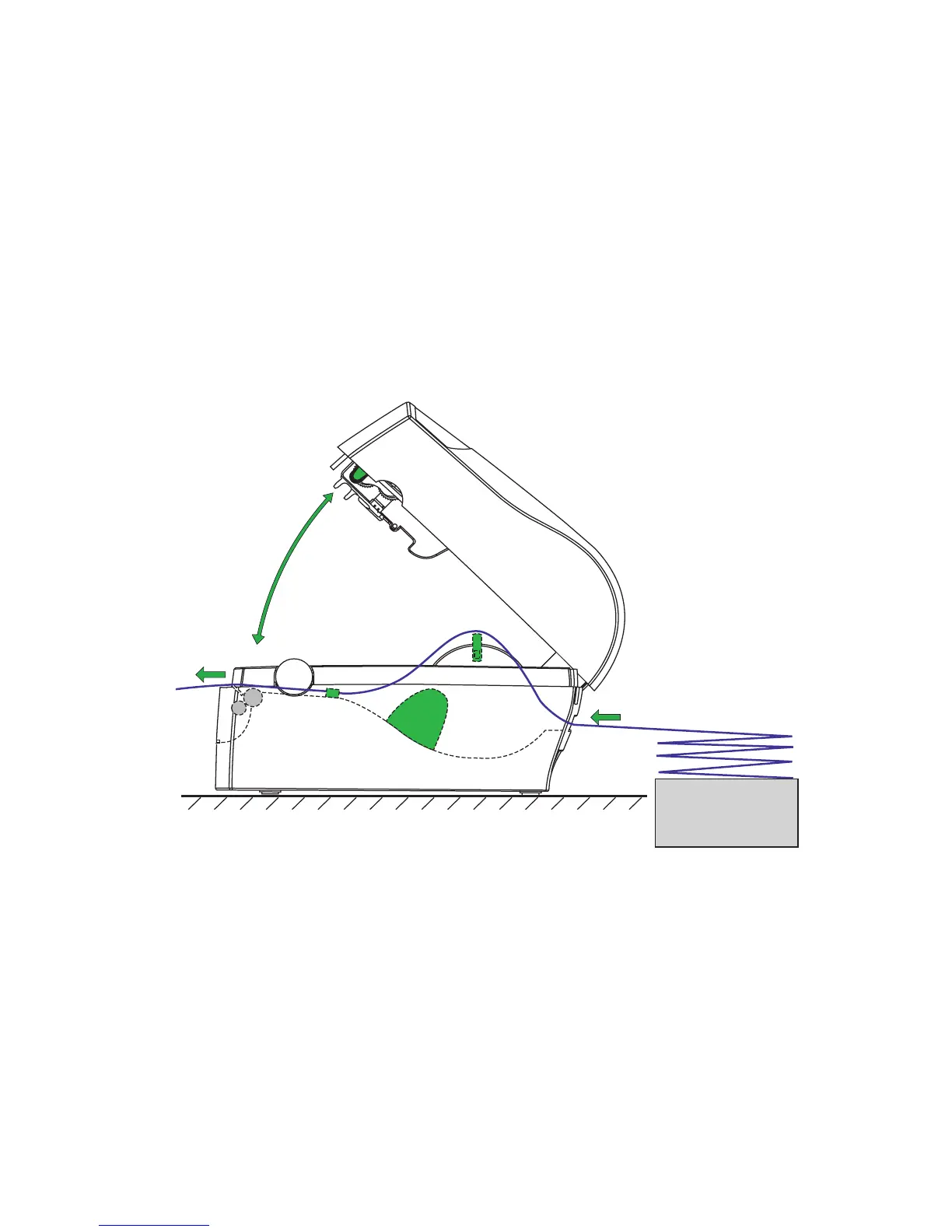

media through the slot at the back of the printer (see illustrations).
Be careful to protect any external media supply from dirt, grit, dust,
water, and direct sunlight.

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
