Intermec EasyCoder PC4 User Manual

 


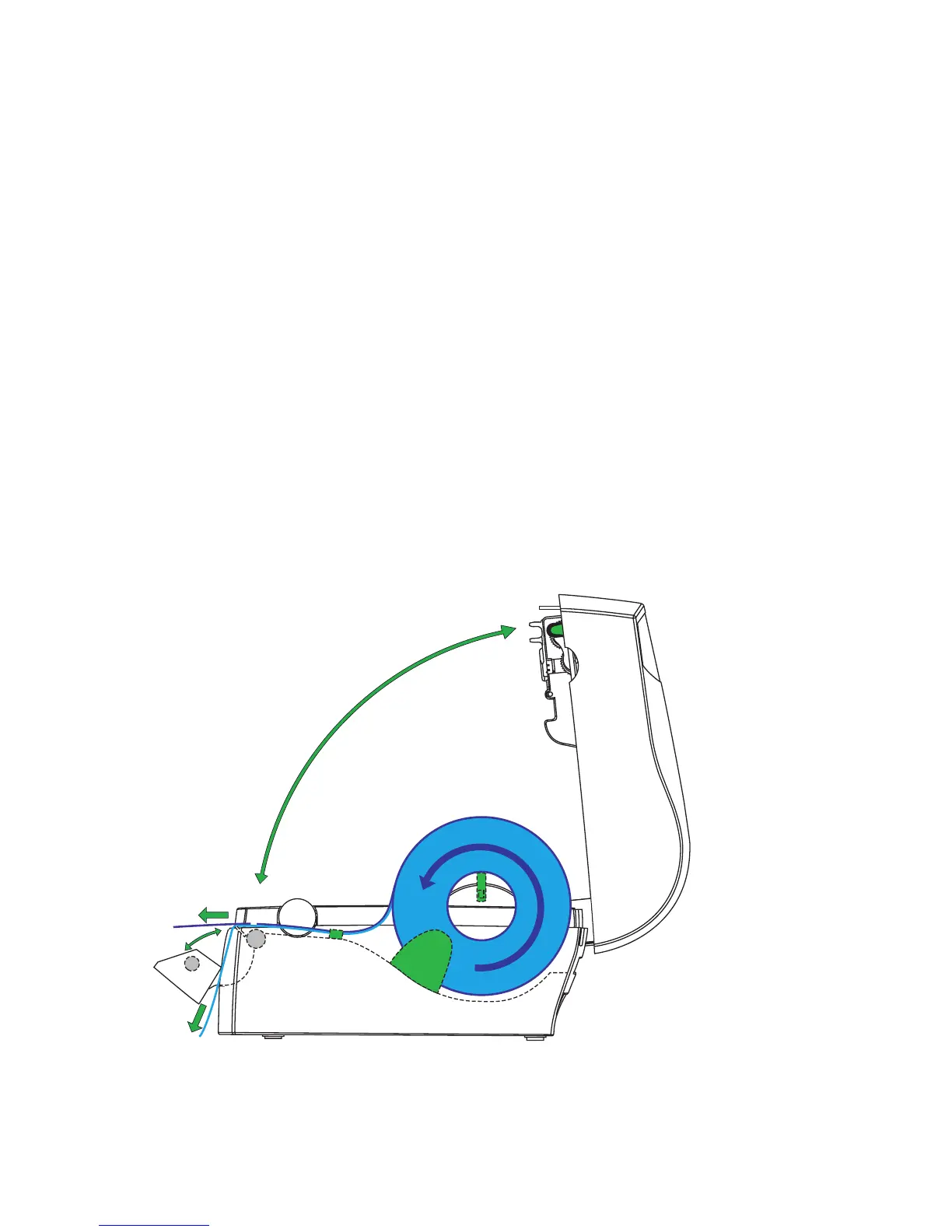

7 Wind the green edge guide wheel towards the rear of the printer so
the rear edge guides just touch the label roll without actually breaking
its rotation.
8 read the labels through the slits in the front edge guides.
9 Peel away the labels from the first 10 cm (4 inches) or so of the liner.
10 read the liner around the peel-off bar and insert it inside the peel-
off mechanism so it protrudes from the slot below the mechanism.
11 Hold the labels while pulling at the liner so it becomes tight, then
close the peel-off mechanism.
12 Firmly close the top cover.
13 If loading labels for the first time or if changing from another type or
size of media, perform a Label Gap Sensor Adjustment as described
on page 28. Else, tap the Feed key either 4 times or until the indicator
lamp glows green.
14 If the printer did run out of labels while printing, the printing will
automatically be resumed.

Intermec EasyCoder PC4 Specifications

General

Resolution	203 dpi
Power Requirements	100-240 VAC, 50-60 Hz
Print Method	Direct Thermal
Max Print Width	4.09 inches (104 mm)
Max Print Speed	4 inches per second
Max Print Length	39 inches
Media Type	Roll-fed, die-cut, continuous, fanfold, tags, tickets
Media Width	1.0 - 4.65 inches
Media Thickness	0.06 mm (0.00236 in) to 0.18 mm (0.00708 in)
Interface	RS-232
Memory	4 MB Flash, 8 MB SDRAM
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Humidity	10 to 90% non-condensing
